Control module outputs

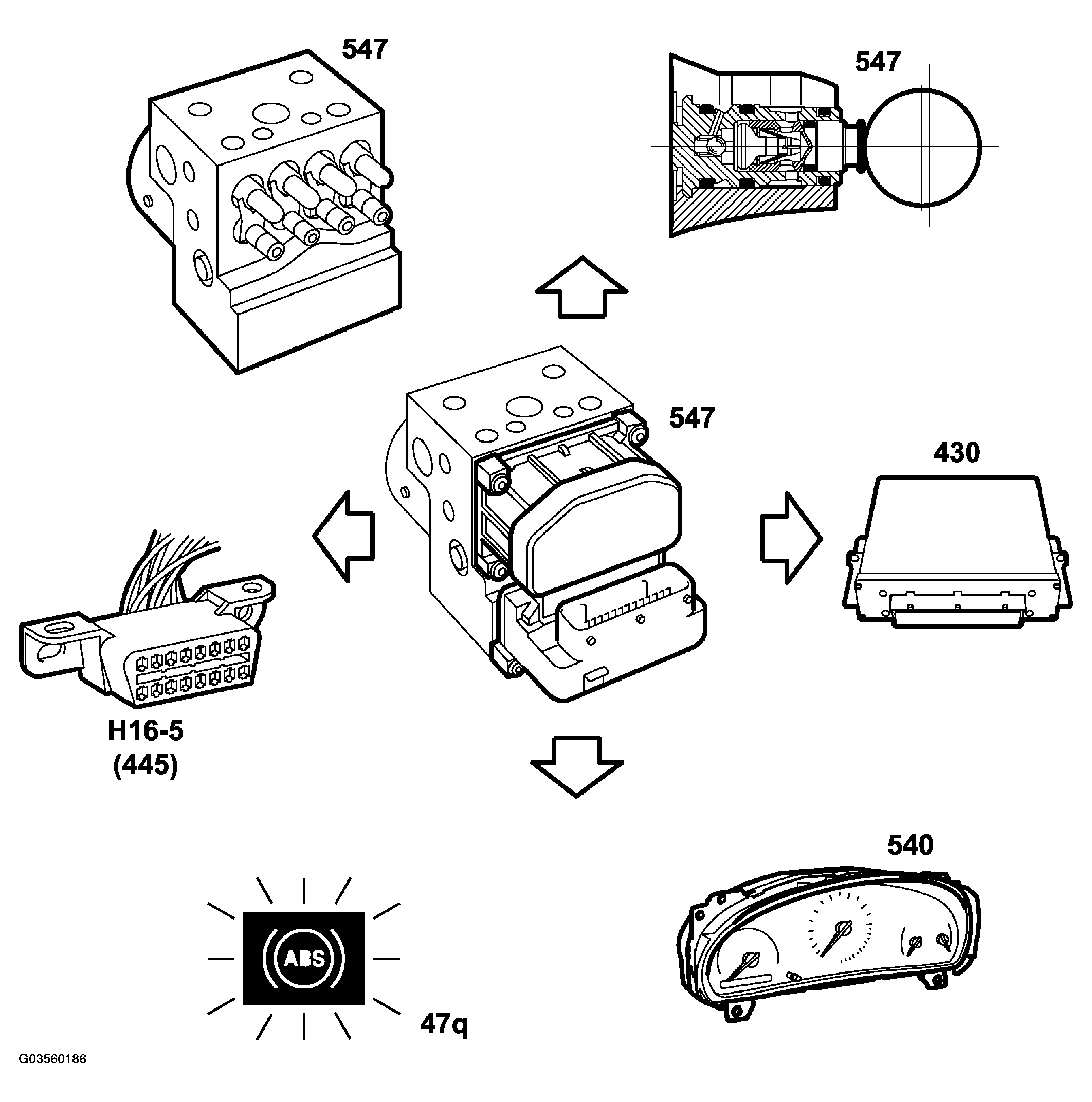

Fig 1: Identifying Control Module Outputs

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Wheel speed, FR (430). See FRONT-WHEEL SENSORS .
Wheel speed, RL (540). See REAR-WHEEL SENSORS .
Return pump (547). See RETURN PUMP .
ABS warning light on MIU (540). See ABS WARNING LIGHT .
Data link (445). See DATA LINK CONNECTOR, 16-PIN, CARB (445) .

Fig 2: Identifying Control Module Outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Inlet valve, FL (547). See VALVE BLOCK .
Outlet valve, FL (547). See VALVE BLOCK .
Inlet valve, RR (547). See VALVE BLOCK .
Outlet valve, FR (547). See VALVE BLOCK .
Inlet valve, RL (547). See VALVE BLOCK .
Outlet valve, RL (547). See VALVE BLOCK .
Inlet valve, RR (547). See VALVE BLOCK .
Outlet valve, RR (547). See VALVE BLOCK .
