Brake pressure sensor: Notes

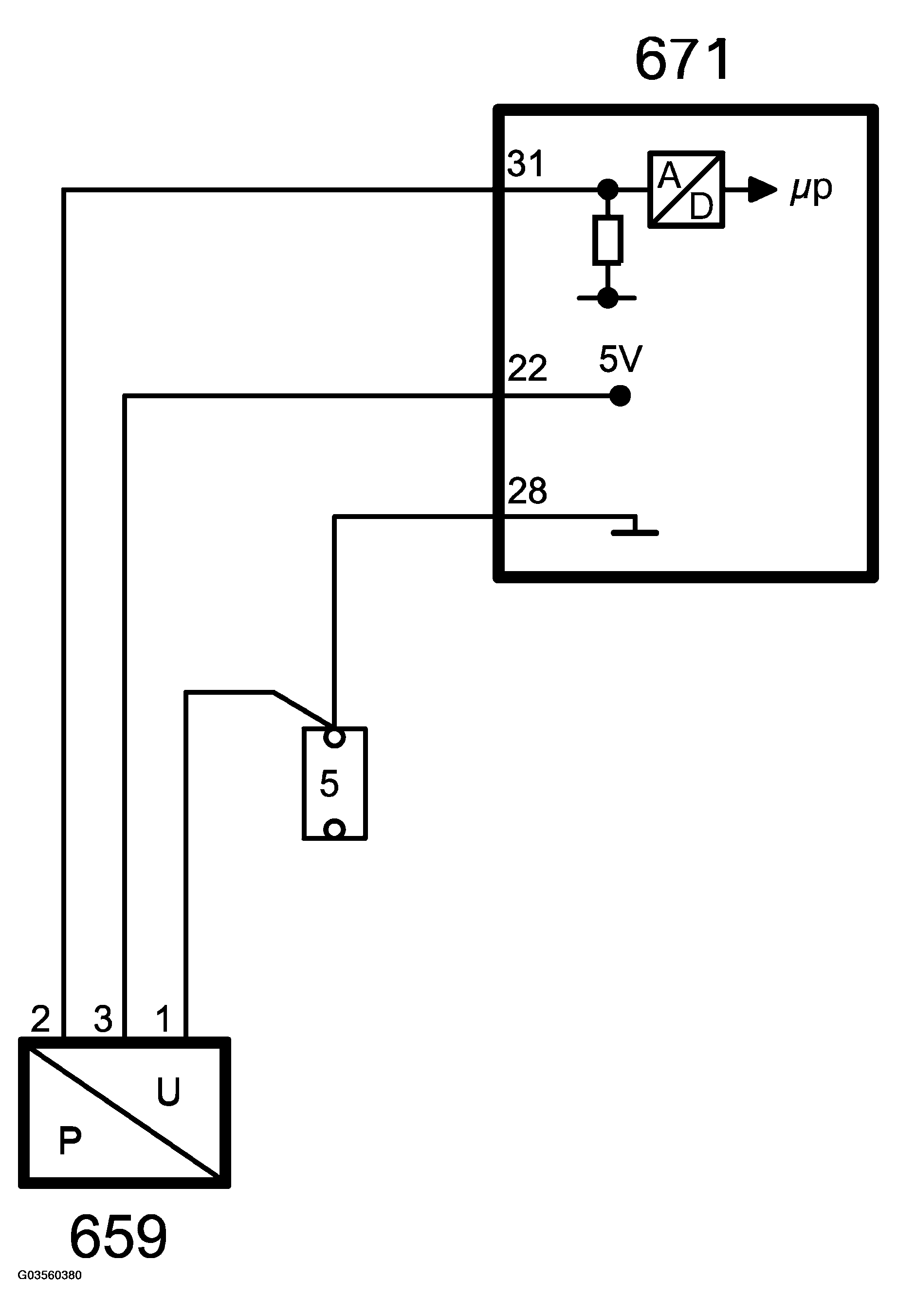

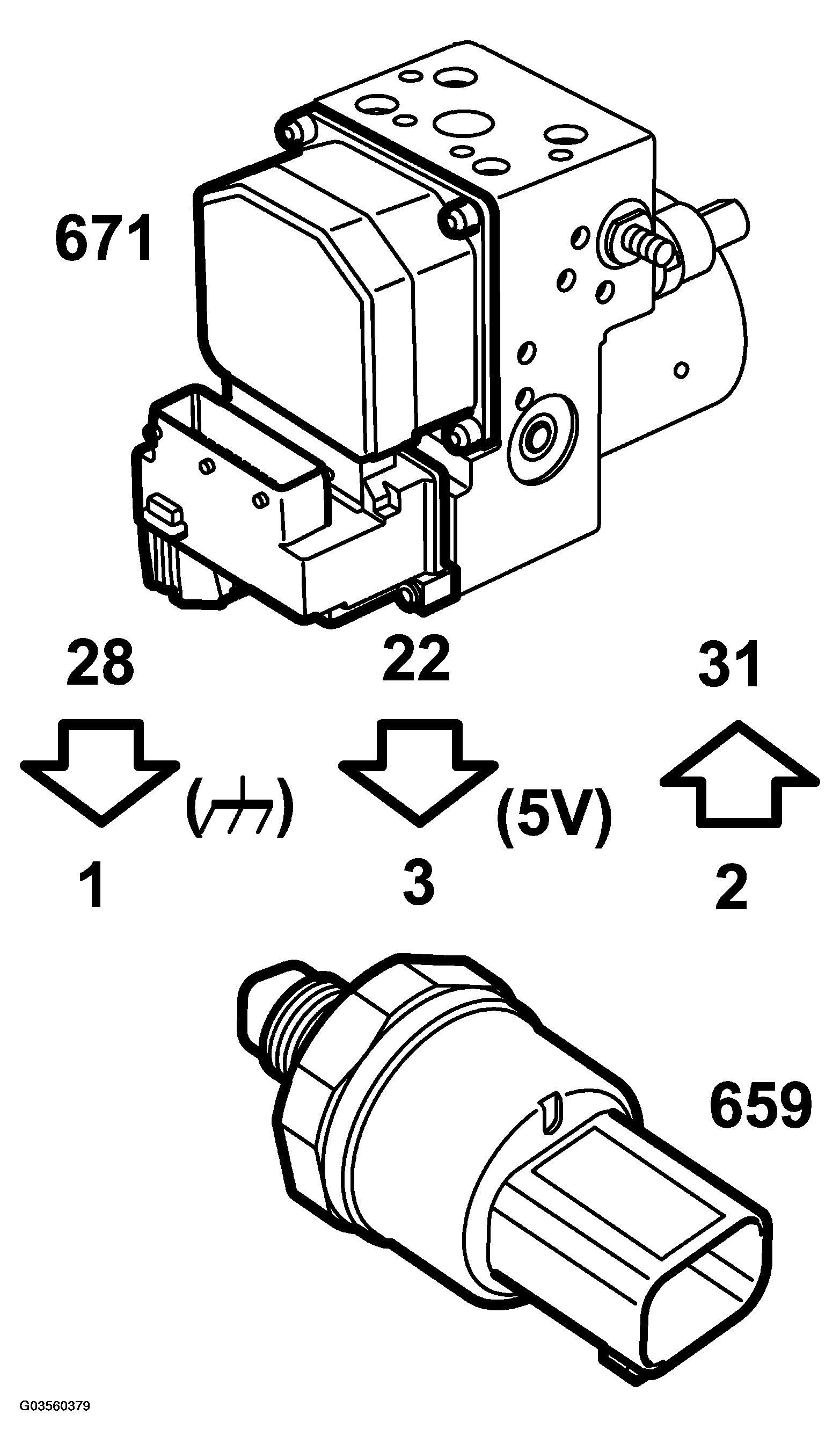

A pressure sensor in the hydraulic unit monitors the incoming brake pressure from the master cylinder in the primary brake circuit. The pressure sensor sends a voltage to the control module that is proportional to the pressure produced when the driver depresses the brake pedal.
The pressure sensor consists of a membrane and a piezoelectric crystal.
TEST READINGS
| Pin | Test reading | Description |
|---|---|---|
| 1 | System ground | |
| 2 | 0--5 V, equivalent to 0--250 bar | Output signal |
| 3 | +5 V | Power supply from control module |
