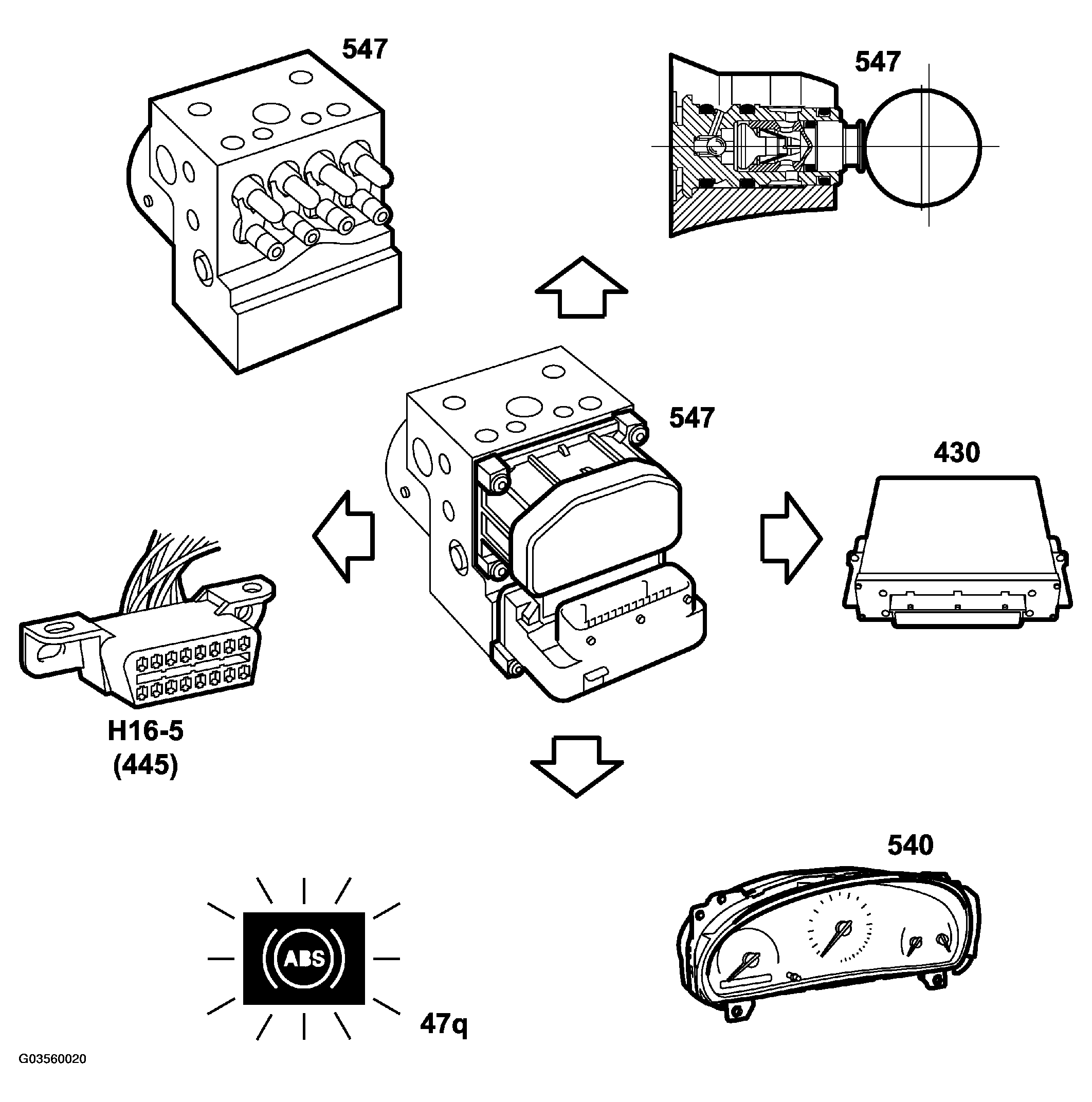

Control module outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Wheel speed, FR (430). See FRONT-WHEEL SENSORS
.
- Wheel speed, RL (540). See REAR-WHEEL SENSORS
.
- Return pump (547). See RETURN PUMP
.
- ABS warning light on MIU (540). See ABS WARNING LIGHT
.
- Data link (445). See DATA LINK
.
- Inlet valve, FL (547). See VALVE BLOCK
.
- Outlet valve, FL (547). See VALVE BLOCK
.
- Inlet valve, RR (547). See VALVE BLOCK
.
- Outlet valve, FR (547). See VALVE BLOCK
.
- Inlet valve, RL (547). See VALVE BLOCK
.
- Outlet valve, RL (547). See VALVE BLOCK
.
- Inlet valve, RR (547). See VALVE BLOCK
.
- Outlet valve, RR (547). See VALVE BLOCK
.
