Power supply: Notes

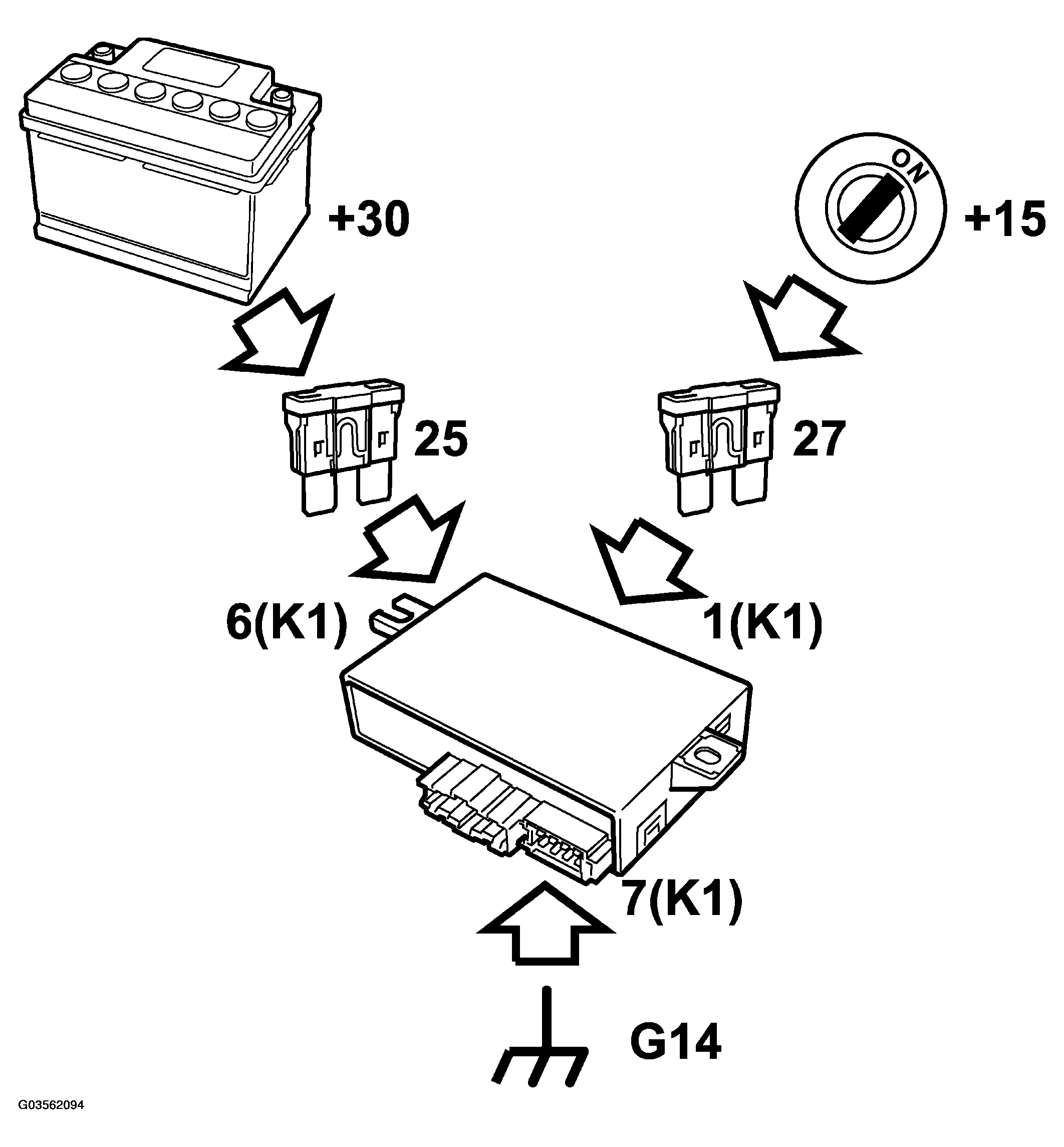

Fig 1: Identifying Power Supply
Courtesy of SAAB-SCANIA OF AMERICA, INC.

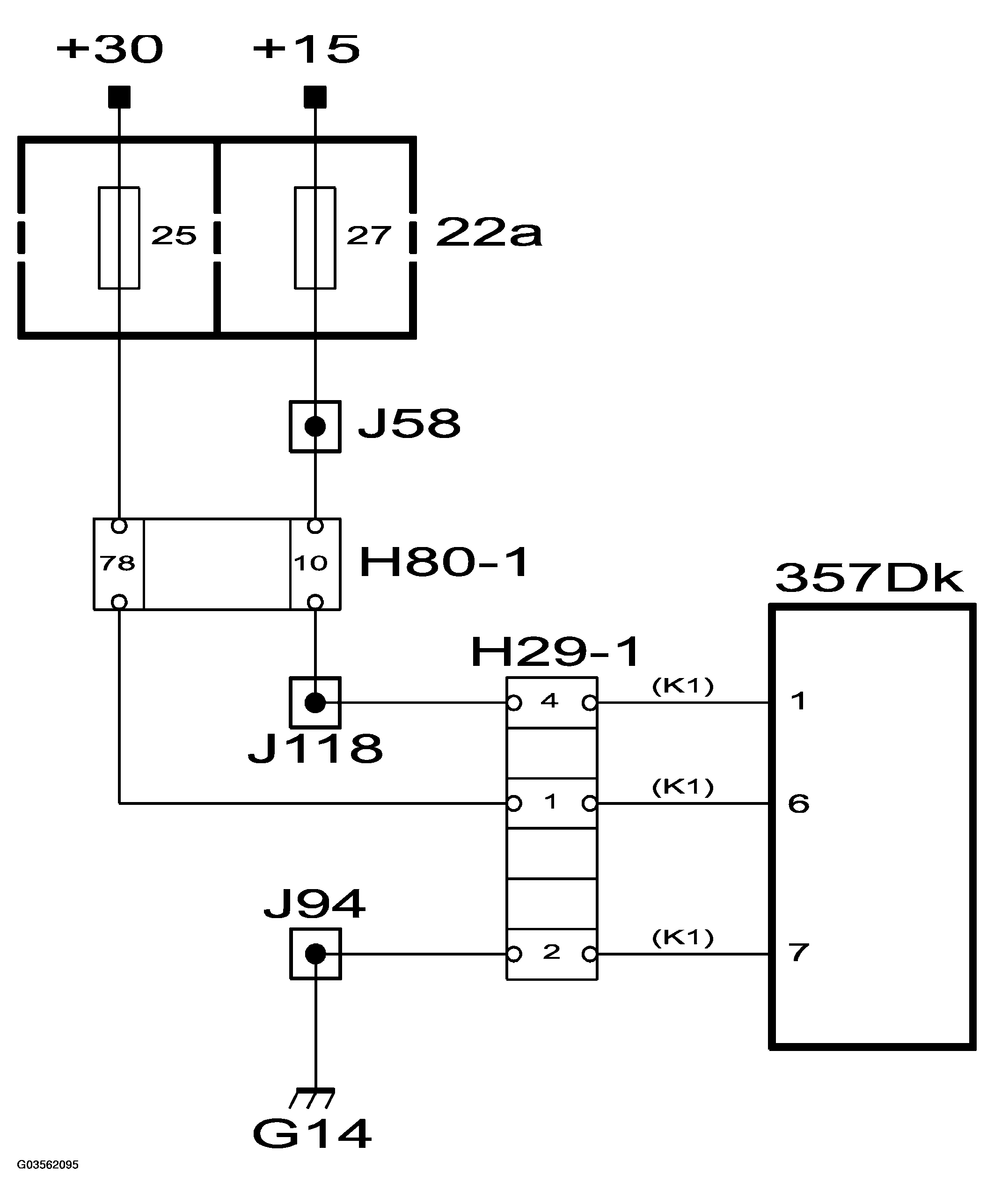

Fig 2: Power Supply Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
