Home >> Saab >> 2002 >> 9-5 Linear, 4D Sedan, Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Adjustment - Replacement >> PSM Control module >> To remove

To remove

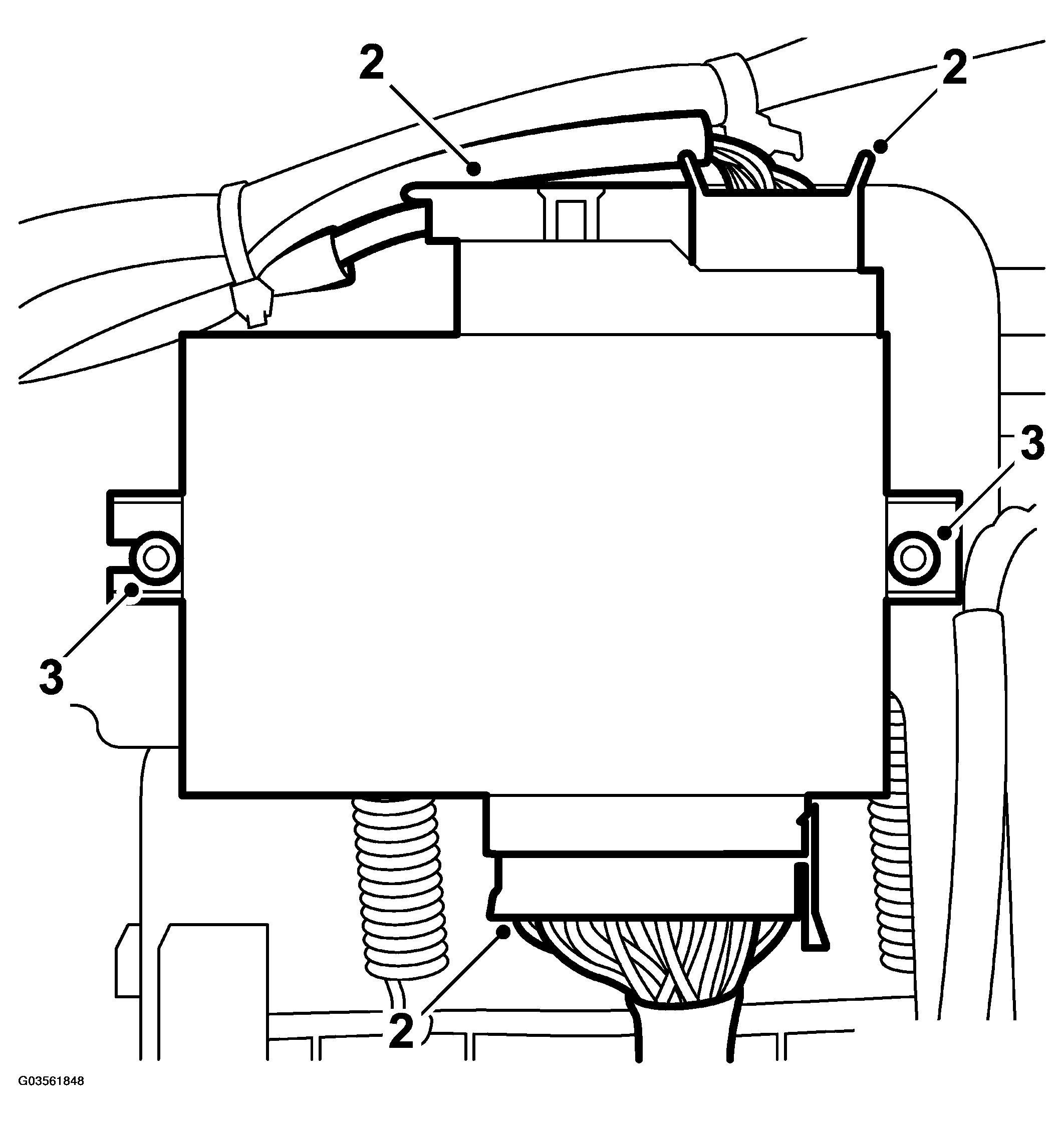

Fig 1: Illustration For Step 2-3
G03561848Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the front seat and tilt it back, see FRONT SEAT
  2. Unplug 3 connectors on the control module.
  3. Unscrew the control module from the bracket, 2 screws.
