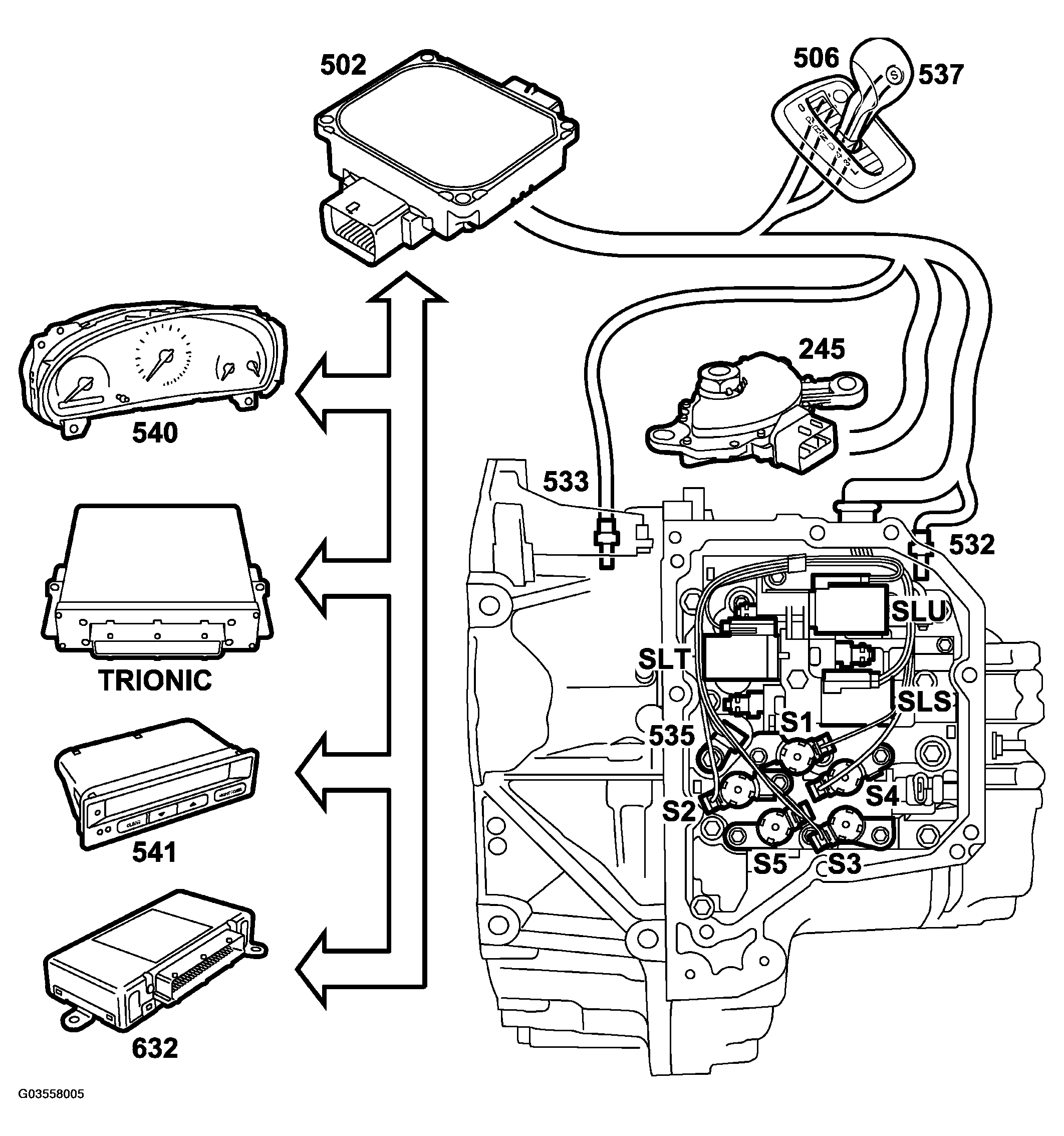

System overview
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Transmission range switch (245)
- Main instrument unit (540)
- Control module, Trionic (430/600)
- SID (541)
- Control module, TCM (502)
- Switch, WINTER (506)
- Switch, SPORT (537)
- Output shaft speed sensor (533)
- Input shaft speed sensor (532)
- Transmission fluid temperature sensor (535)
- Control module, TWICE (632)
- Solenoid for lock-up (SLU)
- Solenoid for shifting (S1)
- Solenoid for shifting (S2)
- Solenoid for shifting (S3)
- Solenoid for shifting (S4)
- Solenoid for shifting (S5)
- Solenoid for system pressure (SLT)
- Solenoid for clutch pressure (SLS)
