General data

WARNING: This page is about a different variant/trim than selected.

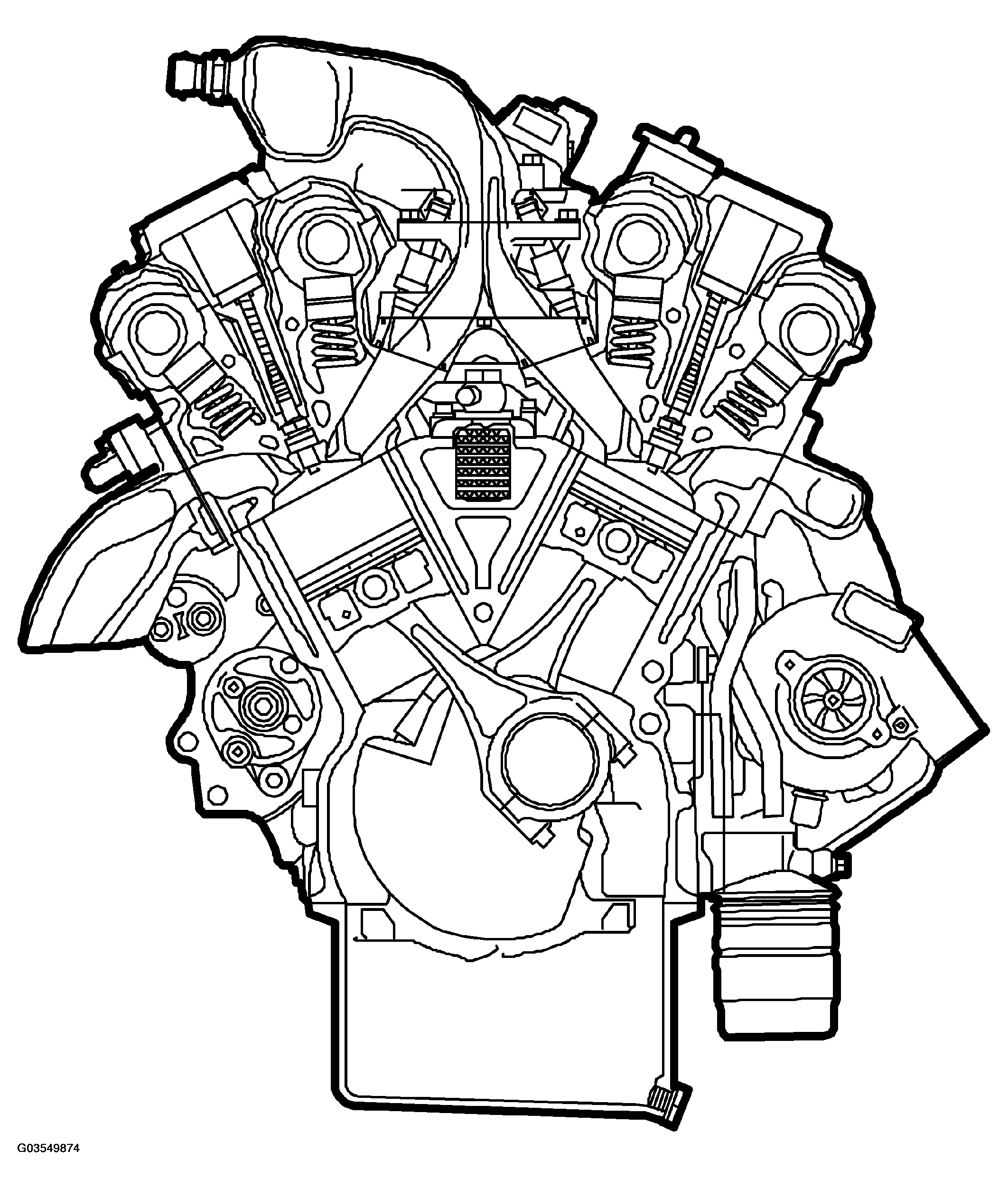

Fig 1: Engine Cross Sectional View (V6)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

GENERAL DATA

Engine type		6-cyl., 4-stroke engine with four valves per cylinder and twin overhead camshaft on each cylinder head. The angle between the cylinder banks is 54 °
Cylinder bore		86 mm
Stroke		85 mm
Swept volume		2962 cm³
Compression ratio		9.5:1
Compression		The difference in compression between the cylinders must not be more than 200 kPa (2 bar).
Firing order		1-2-3-4-5-6
Weight
Engine With Gearbox		280 kg
Engine Without Gearbox		195 kg
