Checking injector flow capacity
WARNING:
Removal of the fuel pressure regulator involves partial dismantling of the car's fuel system. The following points must therefore be observed in connection with this work:
- Work only in a well-ventilated area. If approved equipment for the extraction of fuel vapor is available, be sure to use it.
- Wear suitable gloves. Prolonged contact with fuel can cause skin irritation or dramatist.
- Keep a class BE fire extinguisher near at hand. Be mindful of the danger of sparks caused by short circuits and when connecting and disconnecting leads in electrical circuits.
- No smoking anywhere in the vicinity,
- Wear protective goggles.
IMPORTANT:
Scrupulous cleanliness is of the utmost importance when working on the fuel rail and injectors. Thoroughly clean the injectors, fuel rail and intake manifold and blow dry with compressed air.
- Remove the fuel rail according to FUEL RAIL WITH INJECTORS, 4-CYL . or FUEL RAIL WITH INJECTORS, V6 .

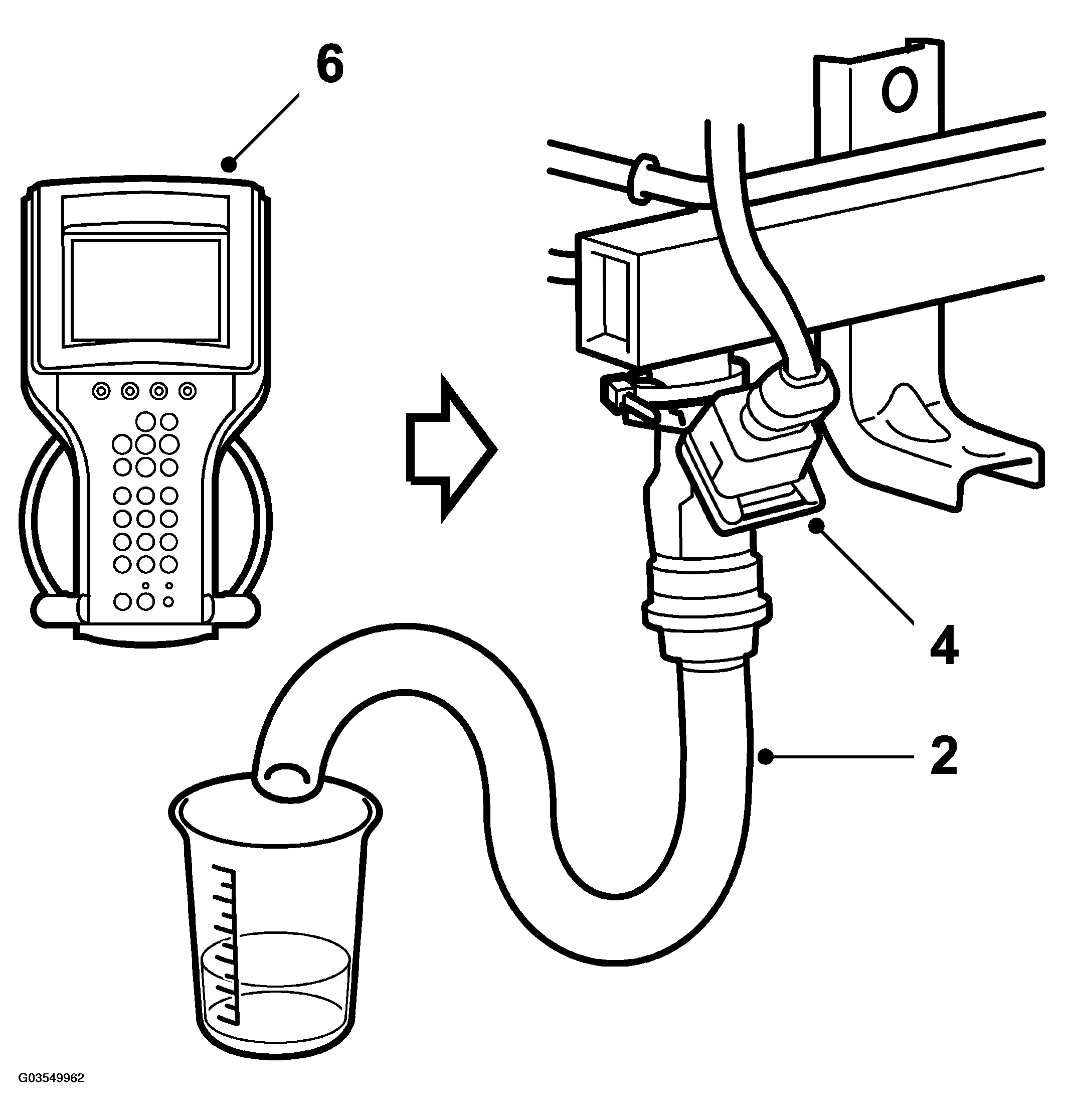

- Fit a transparent hose onto the nozzle. This hose should be about 40 cm long and have an inside diameter of 15 mm.
- Place the end of the hose in a receptacle or measuring flask.
- Connect each injector to its proper connector.

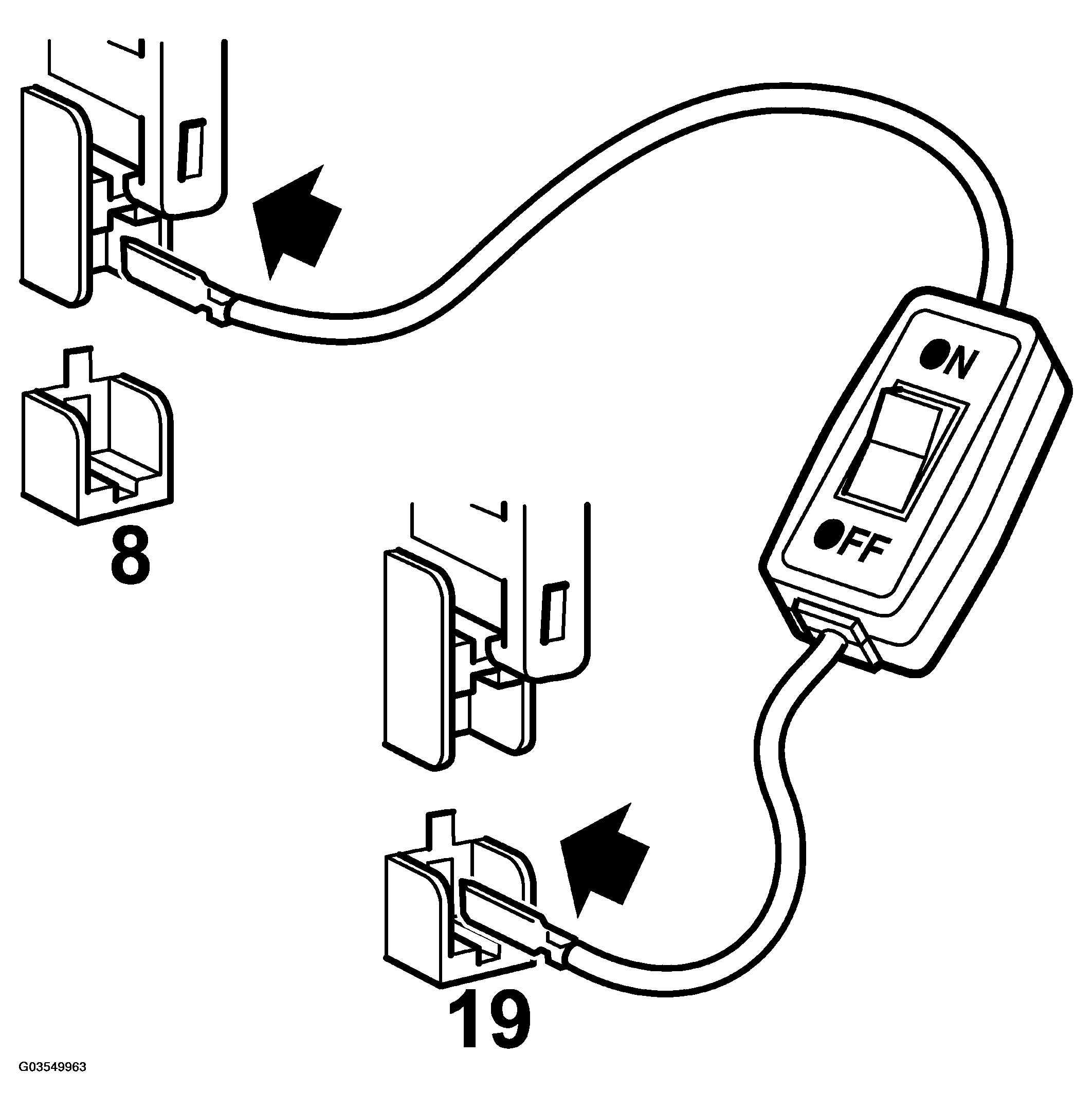

- Start the fuel pump by connecting diagnostics cable 83 93 886 DIAGNOSTICS CABLE, LH SYSTEM to the upper pin on fuse no. 8 and the lower pin of fuse no. 15.
- Perform a flow capacity test with the diagnostic tool. The diagnostic tool then activates the injector concerned with battery voltage for exactly 30 seconds.
- Check the quantity of fuel against the table below.
- Replace any defective injectors.
- Attach fuel rail according to FUEL RAIL WITH INJECTORS, 4 CYL. . or FUEL RAIL WITH INJECTORS, V6 .INJECTORS FLOW CAPACITY
Engine type Flow capacity Maximum permissible difference between injectors B235E ml/30s 176 +/- 7 ml 14 B205E ml/30s 127 +/- 5 ml 10 B308E ml/30s 109 +/- 4 ml 8
