Cylinder head

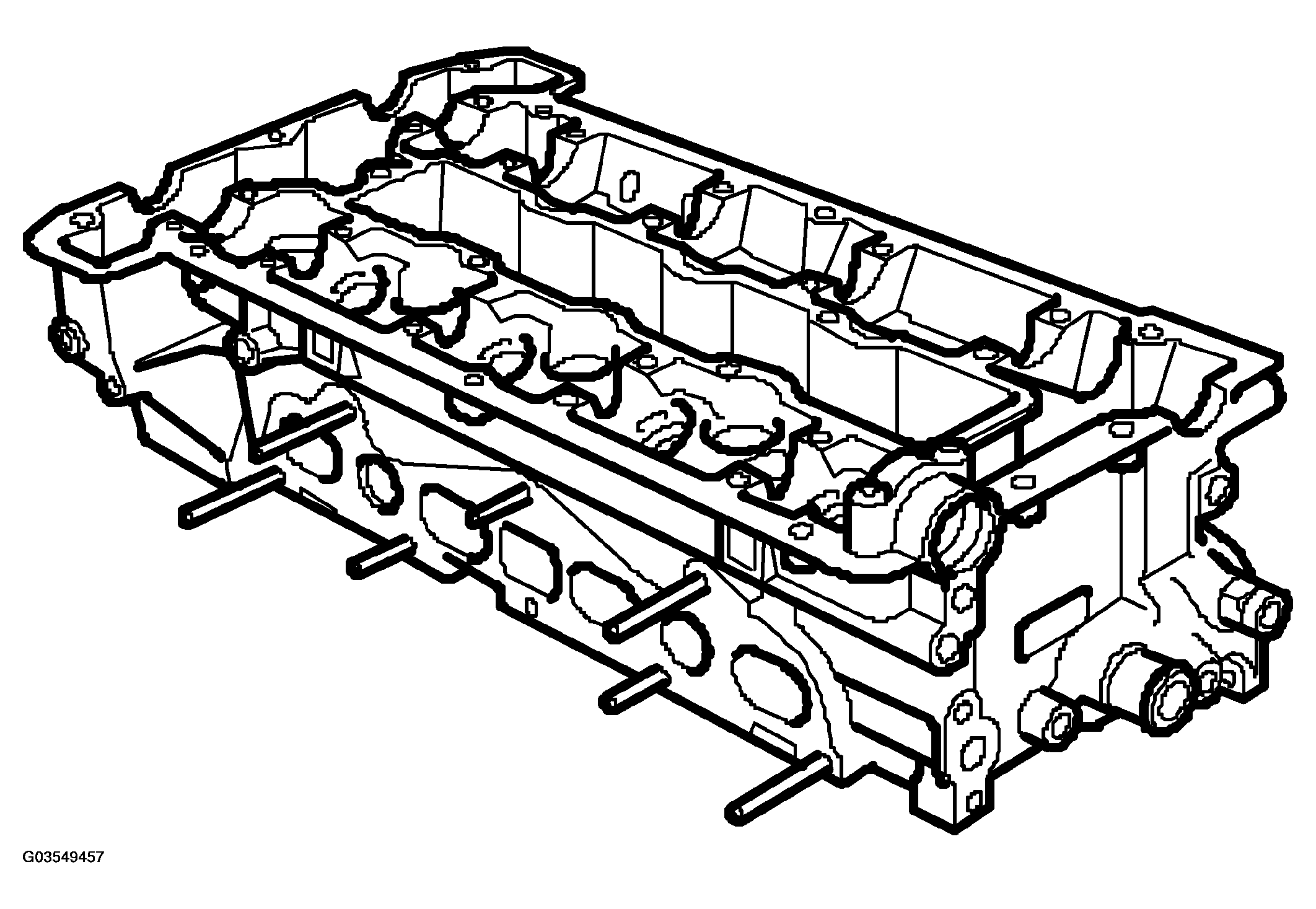

Fig 1: Identifying Cylinder Head

G03549457

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CYLINDER HEAD TECHNICAL DATA

Height, new cylinder head	mm	139.4 - 139.6
Height, minimum after regrinding	mm	139.0
