Pedal position: Notes

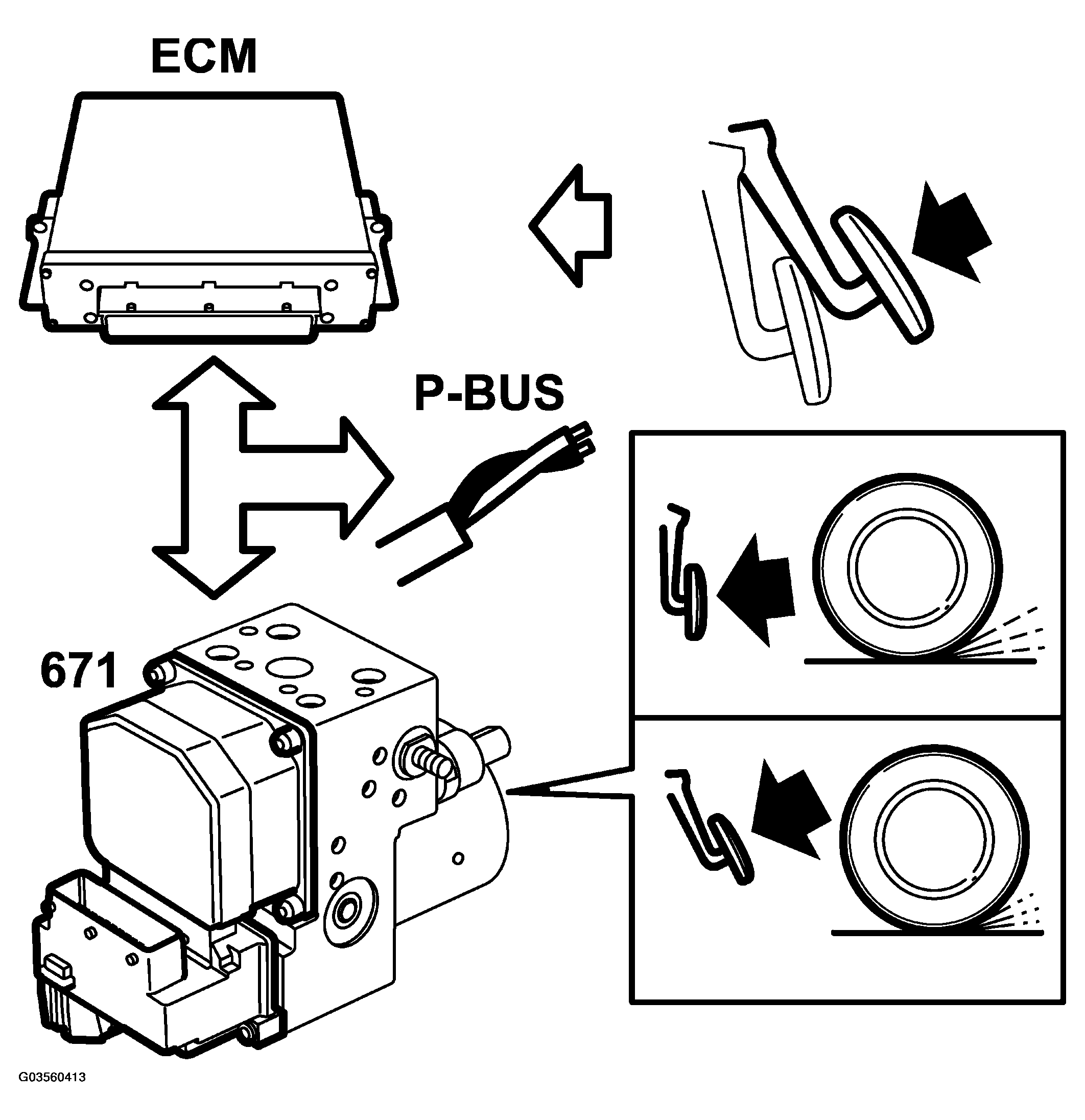

Fig 1: Pedal Position - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

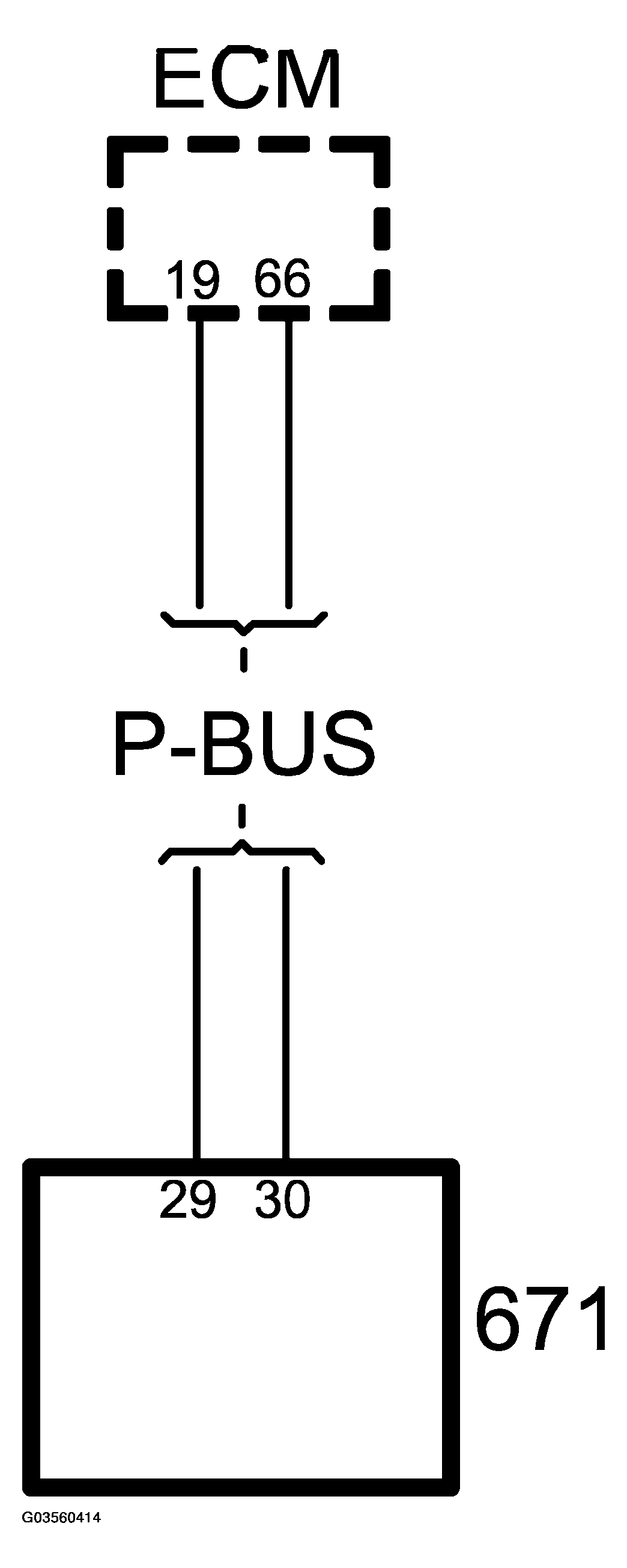

Fig 2: Pedal Position - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Pedal position data is sent by the engine management system over the P-bus. See also SELF-DIAGNOSTICS

The TC/ABS control module uses the information on pedal position to determine the degree of wheel spin to allow during TCS modulation. The system considers the pedal position to be the degree of aggressiveness the driver requests and allows a greater degree of wheel spin the more the pedal is depressed (pedal position increases as a percentage).

The TC/ABS control module uses the information on pedal position to determine the degree of wheel spin to allow during TCS modulation. The system considers the pedal position to be the degree of aggressiveness the driver requests and allows a greater degree of wheel spin the more the pedal is depressed (pedal position increases as a percentage).
