Control module inputs

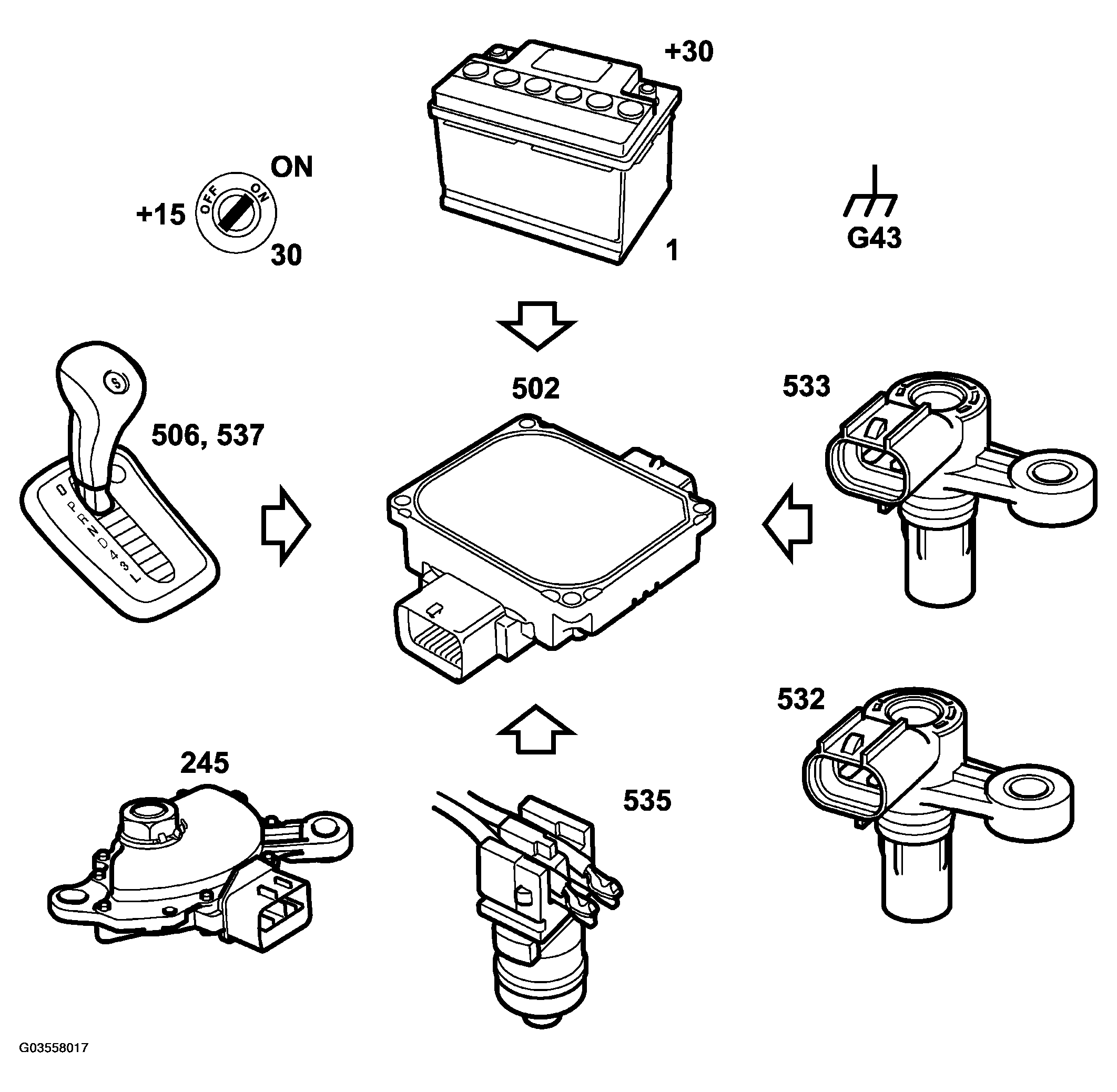

Fig 1: Identifying Control Module Inputs Components

G03558017

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Battery voltage +30 (A33).
Battery voltage +15 (A31, A22).
Ground (G43).
Input shaft speed sensor (532).
Output shaft speed sensor (533).
Transmission fluid temperature sensor (535).
Gear selector position sensor (245).
SPORT switch (537).
WINTER switch (506).
