Control module bus outputs

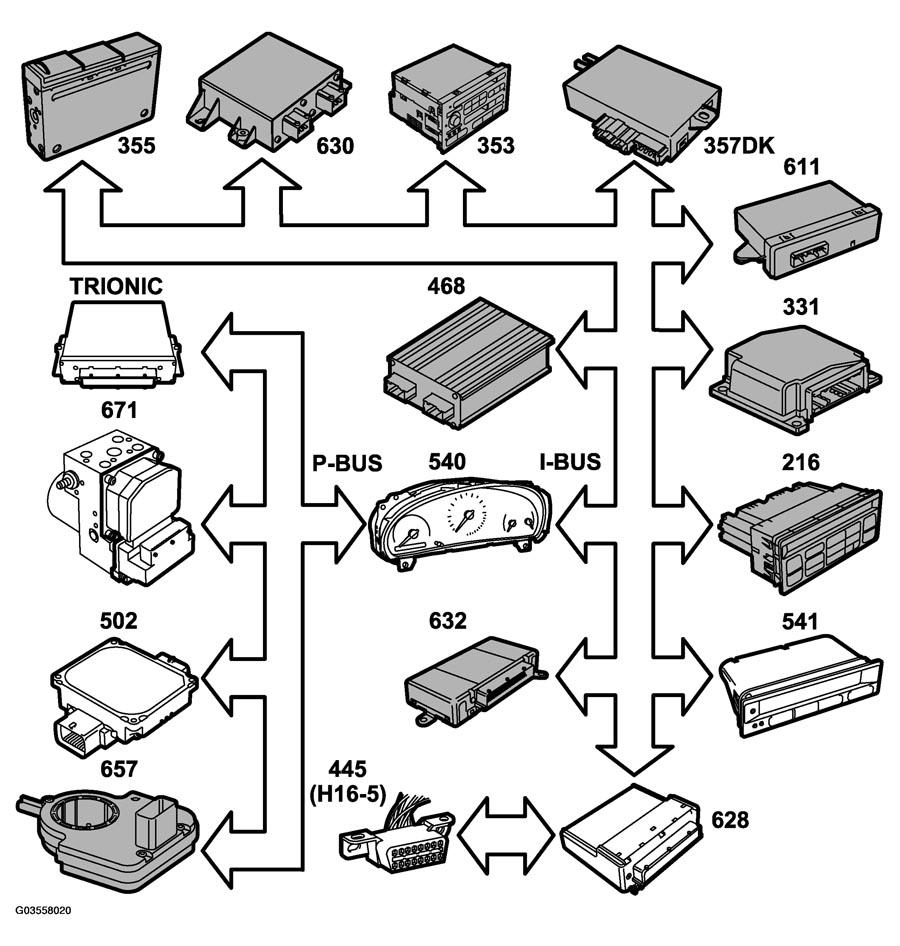

Fig 1: Identifying Control Module Bus Outputs Components

G03558020

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Maximum permitted torque (used by Trionic).
Selector lever position (used by Trionic and MIU) (430/600, 540).
Message addressed to SID (541), HIGH GEARBOX OIL TEMP (used by SID).
CHECK GEARBOX lamp (used by MIU) (540).
SPORT (used by Trionic and MIU) (430/600, 540).
WINTER lamp (used by MIU) (540).
