Sensor, output speed

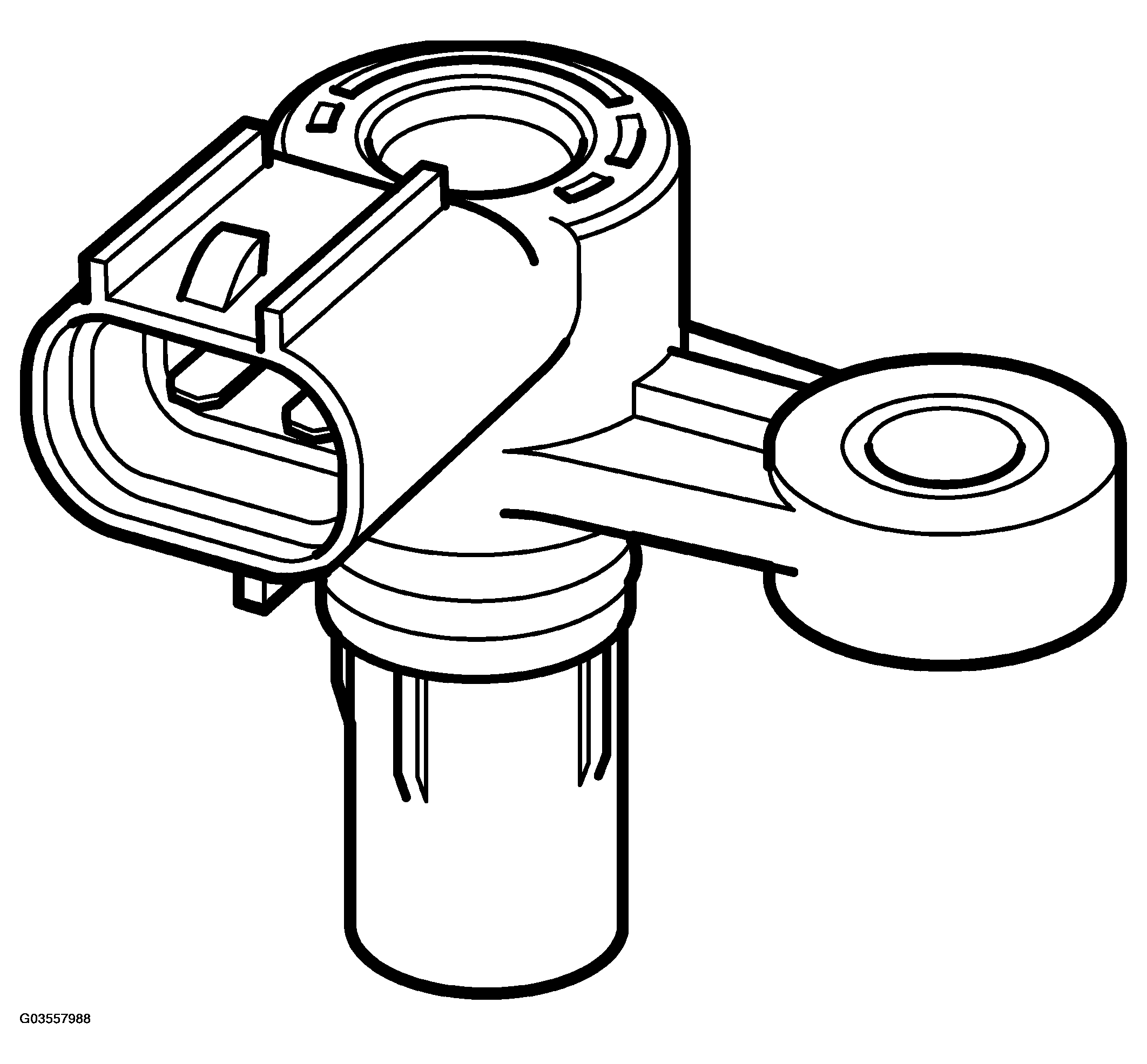

Fig 1: View Of Output Speed Sensor
G03557988Courtesy of SAAB-SCANIA OF AMERICA, INC.
OUTPUT SPEED SENSOR SPECIFICATIONS

Location   On the transmission casing
Type   Hall sensor
Toothed wheel number of teeth 18
