Sensor, input speed

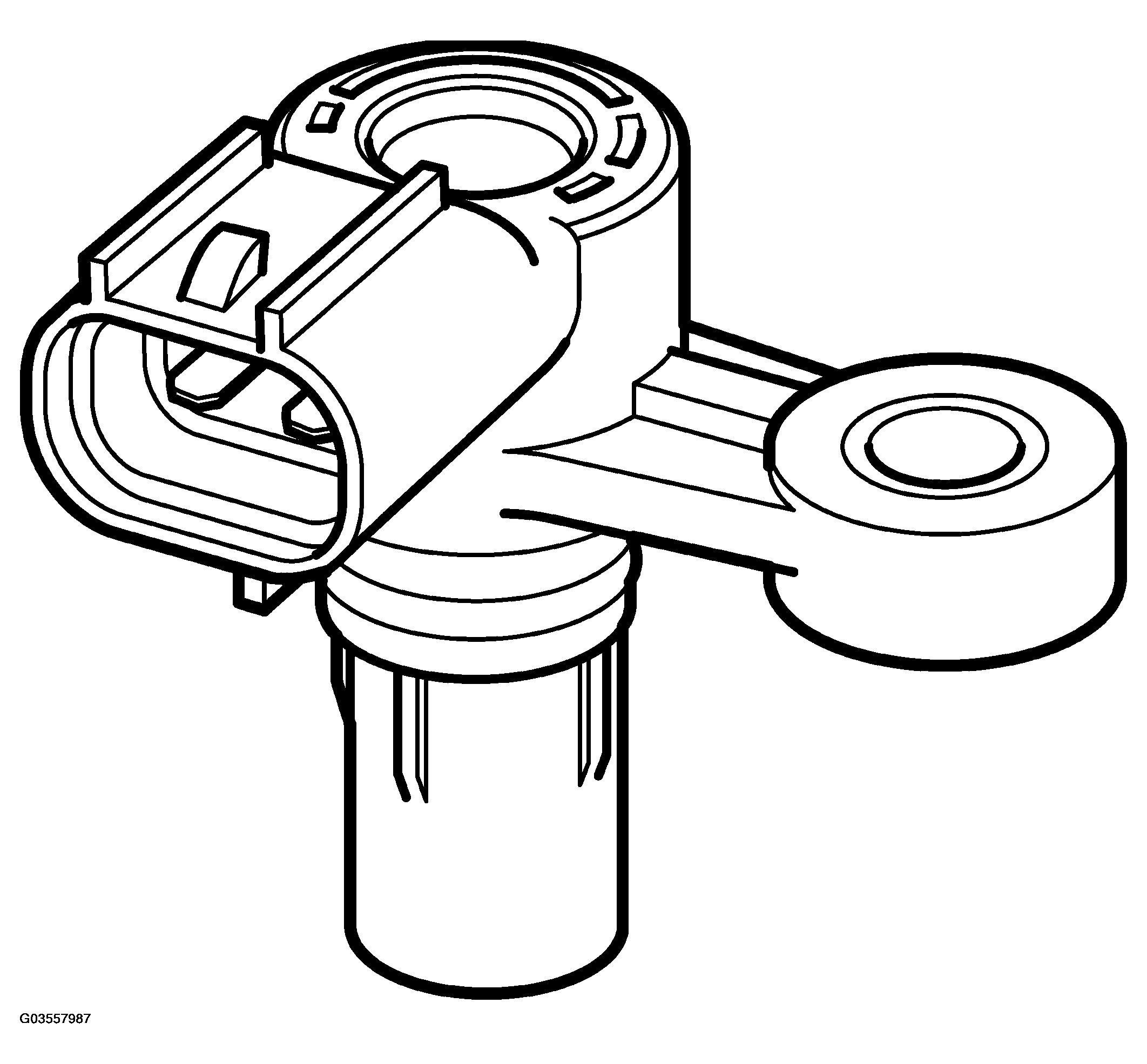

Fig 1: View Of Input Speed Sensor
G03557987Courtesy of SAAB-SCANIA OF AMERICA, INC.
INPUT SPEED SENSOR SPECIFICATIONS

Location   On the transmission casing
Type   Hall sensor
Toothed wheel number of teeth 12
