Gear selector position sensor

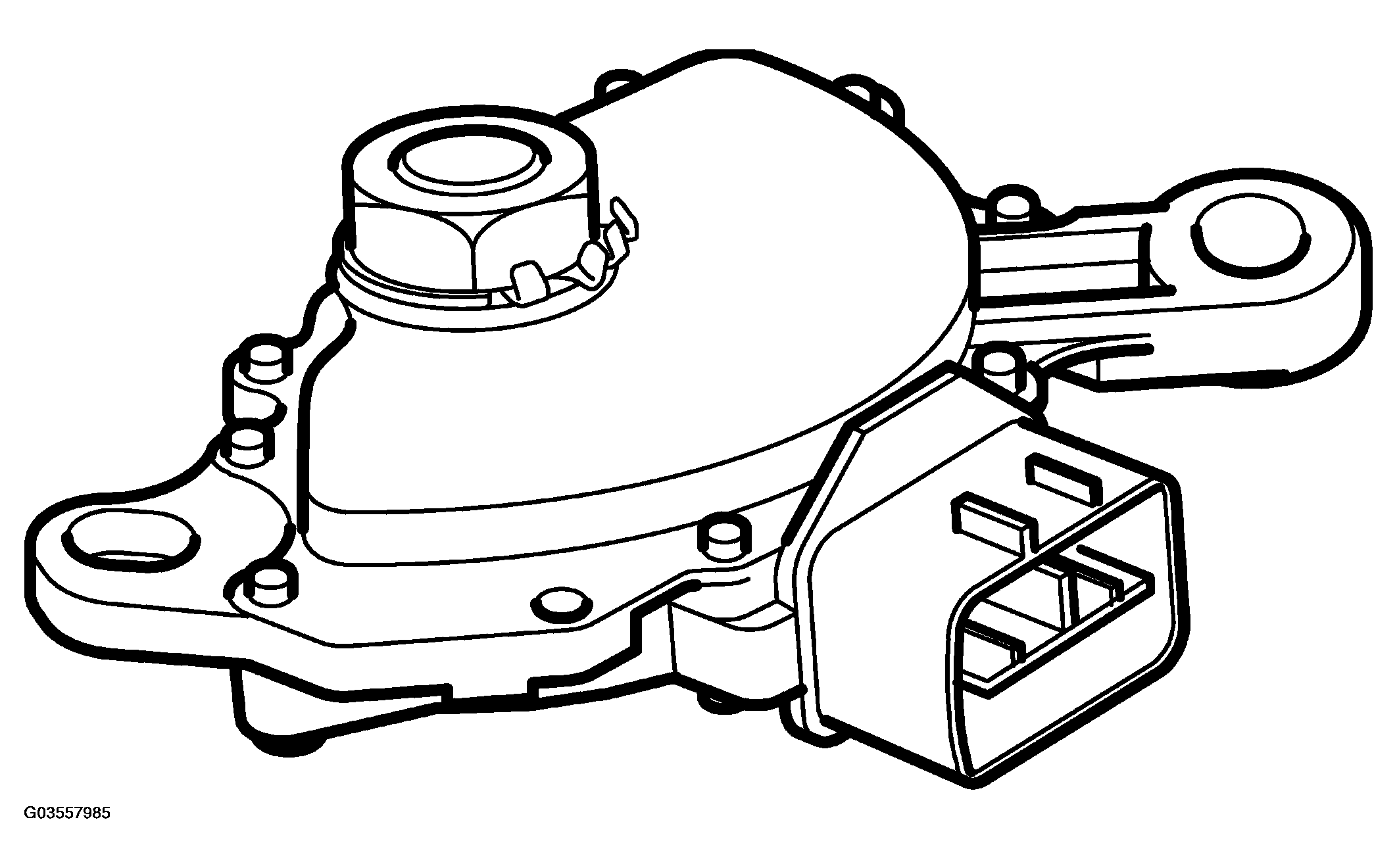

Fig 1: View Of Gear Selector Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

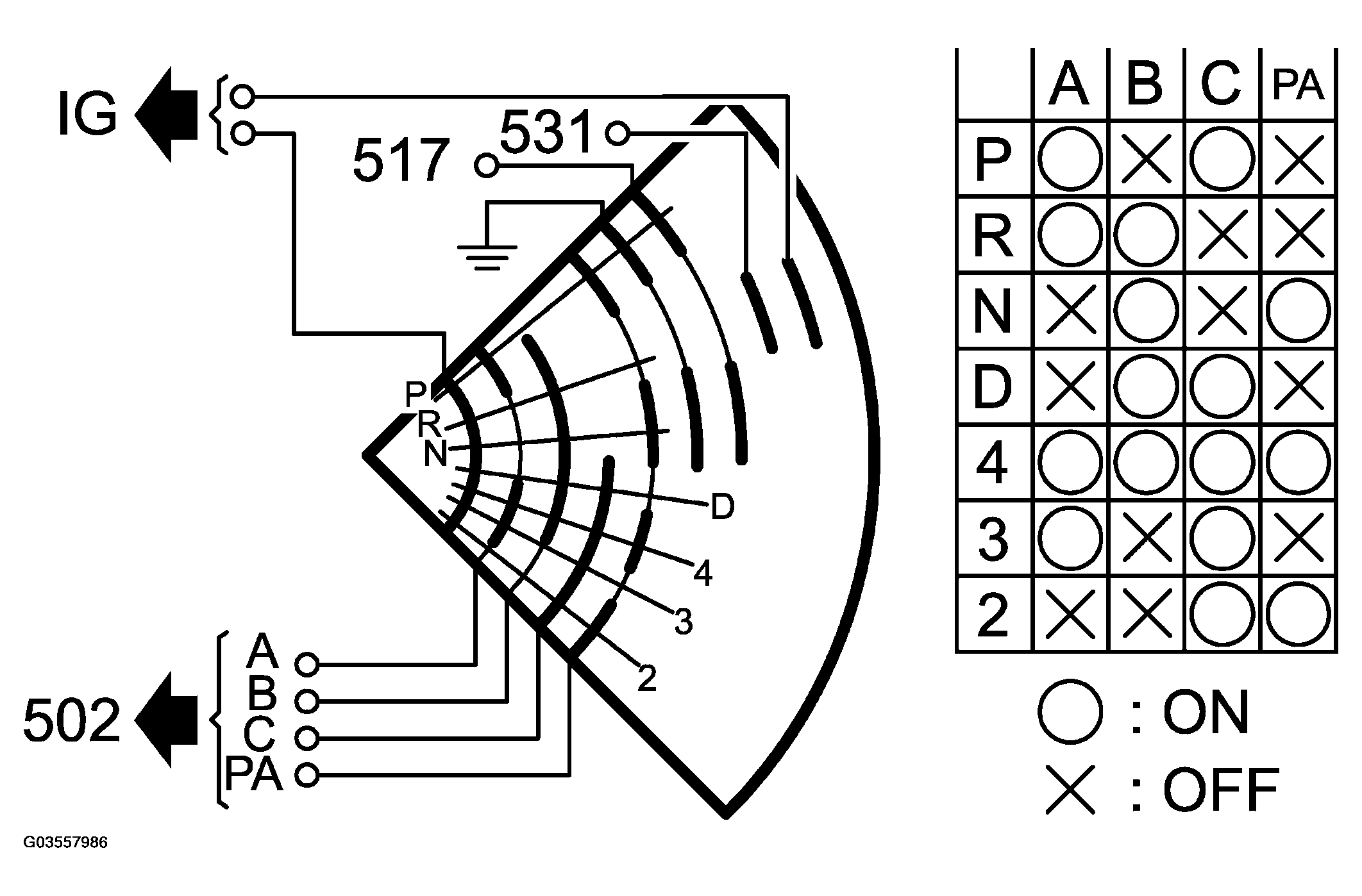

Fig 2: Gear Selector Position Sensor Operation Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

GEAR SELECTOR POSITION SENSOR SPECIFICATIONS

Location		On the transmission casing
Fitting		Adjustment required for proper operation
Type		Slip contacts
Power supply (+15 circuit)		IG contact
Function	Selector lever position	A, B, C and PA contacts
	Starter motor interlock	ST and M contacts
	Reversing lights	E and D contacts
Resistance	Open contact	OL (.)
	Closed contact	< 5 Ohm
