To remove

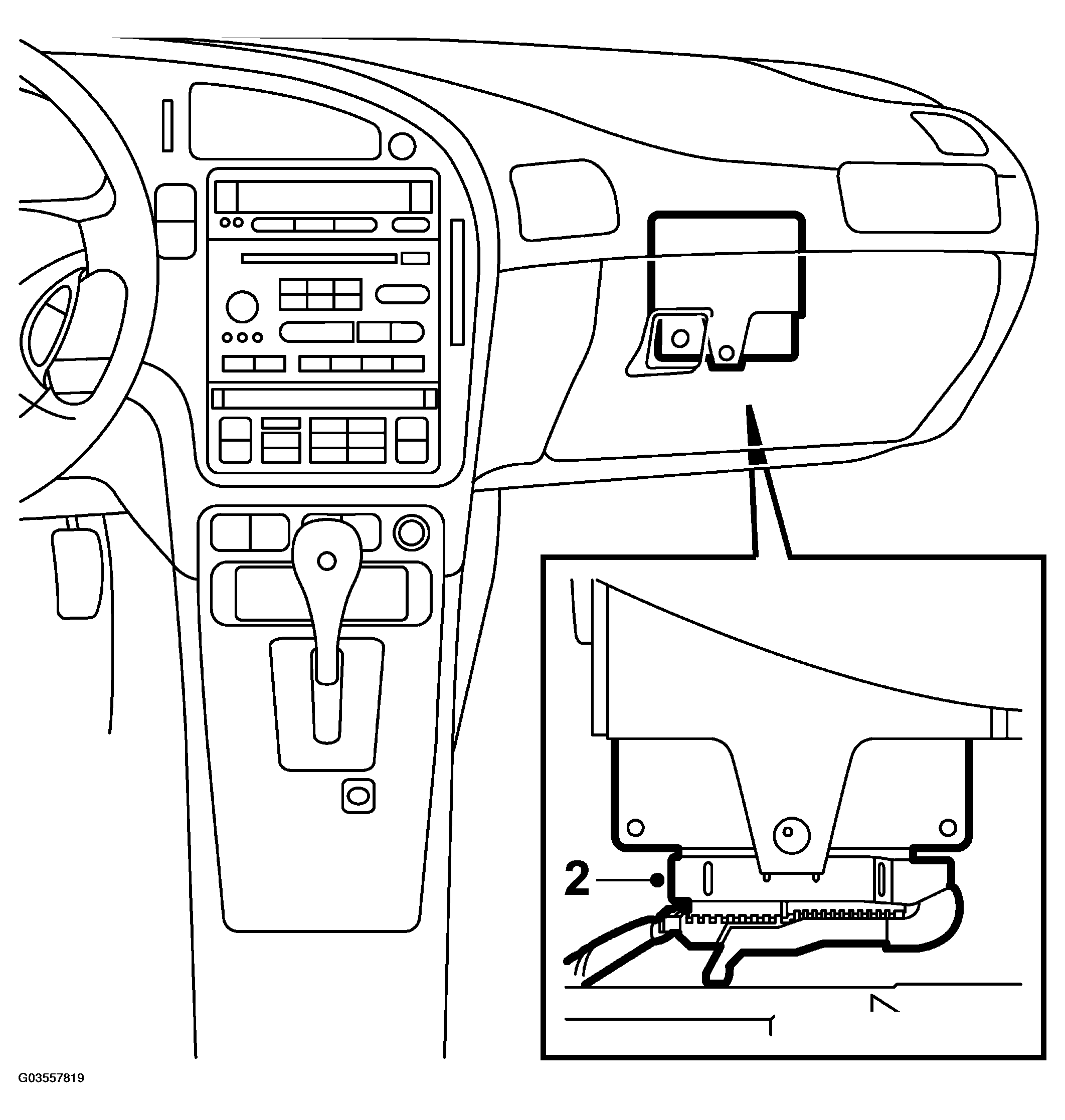

Fig 1: Illustration For Step 2
G03557819Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the lower dashboard section by the passenger seat. See DASHBOARD .
  2. Remove the control module by releasing the catches and unplugging the connector.
    IMPORTANT: ESD-SENSITIVE COMPONENT
    Earth yourself by touching the car body before plugging in / unplugging components. Do not touch the component pins  . Read BEFORE CHANGING A CONTROL MODULE  before changing a control module.
