Control module replacement: Fitting

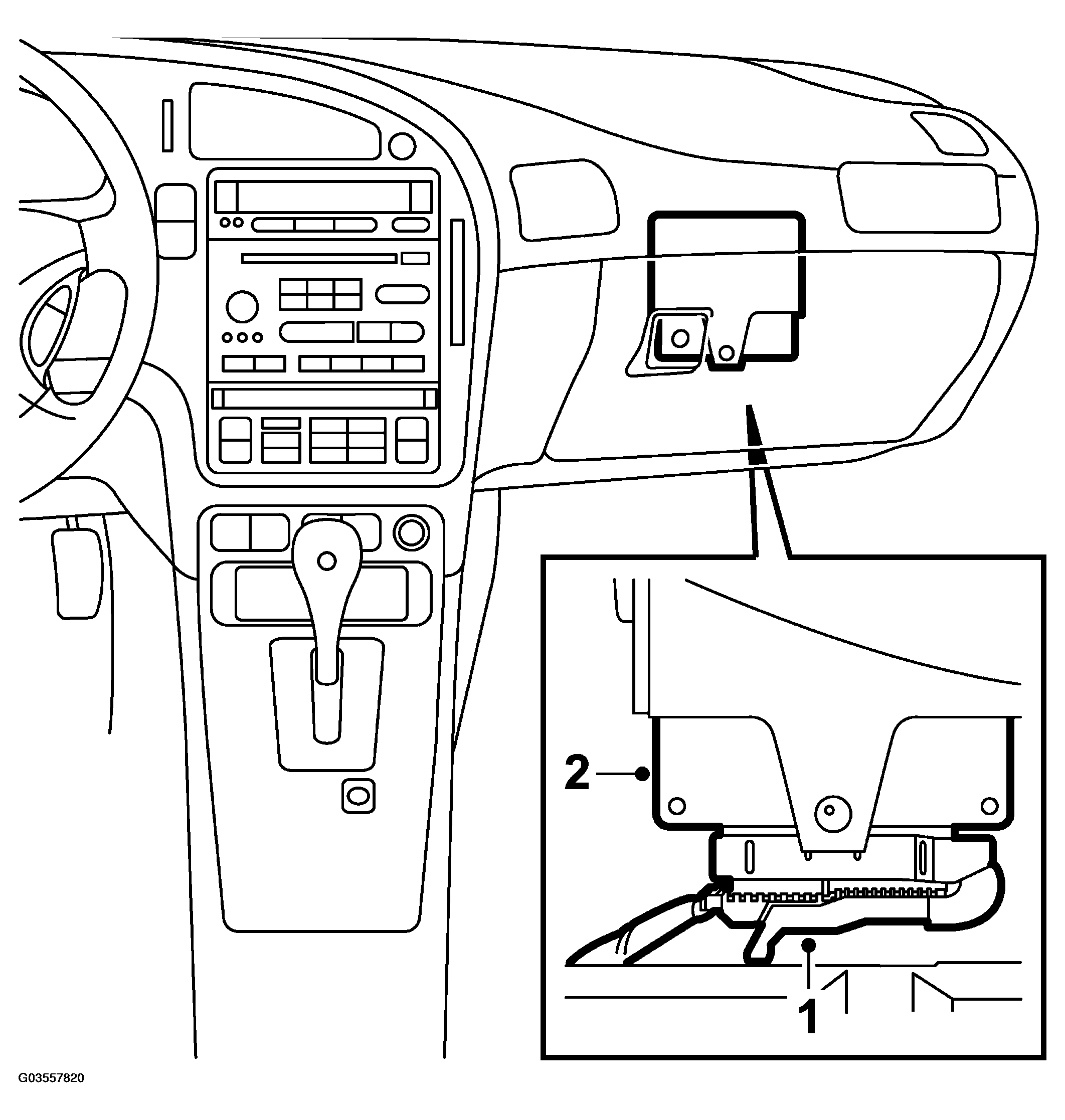

Fig 1: Illustration For Steps 1-2
G03557820Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Plug the connector into the control module.
  2. Press the control module home so that the catches engage with it.
  3. Refit the lower dashboard section by the passenger seat, see DASHBOARD .
  4. Perform Measures after changing a control module.
  5. If a new control module has been fitted it must be adapted, see ADAPTATION, RESETTING .
