System overview, V6: Notes

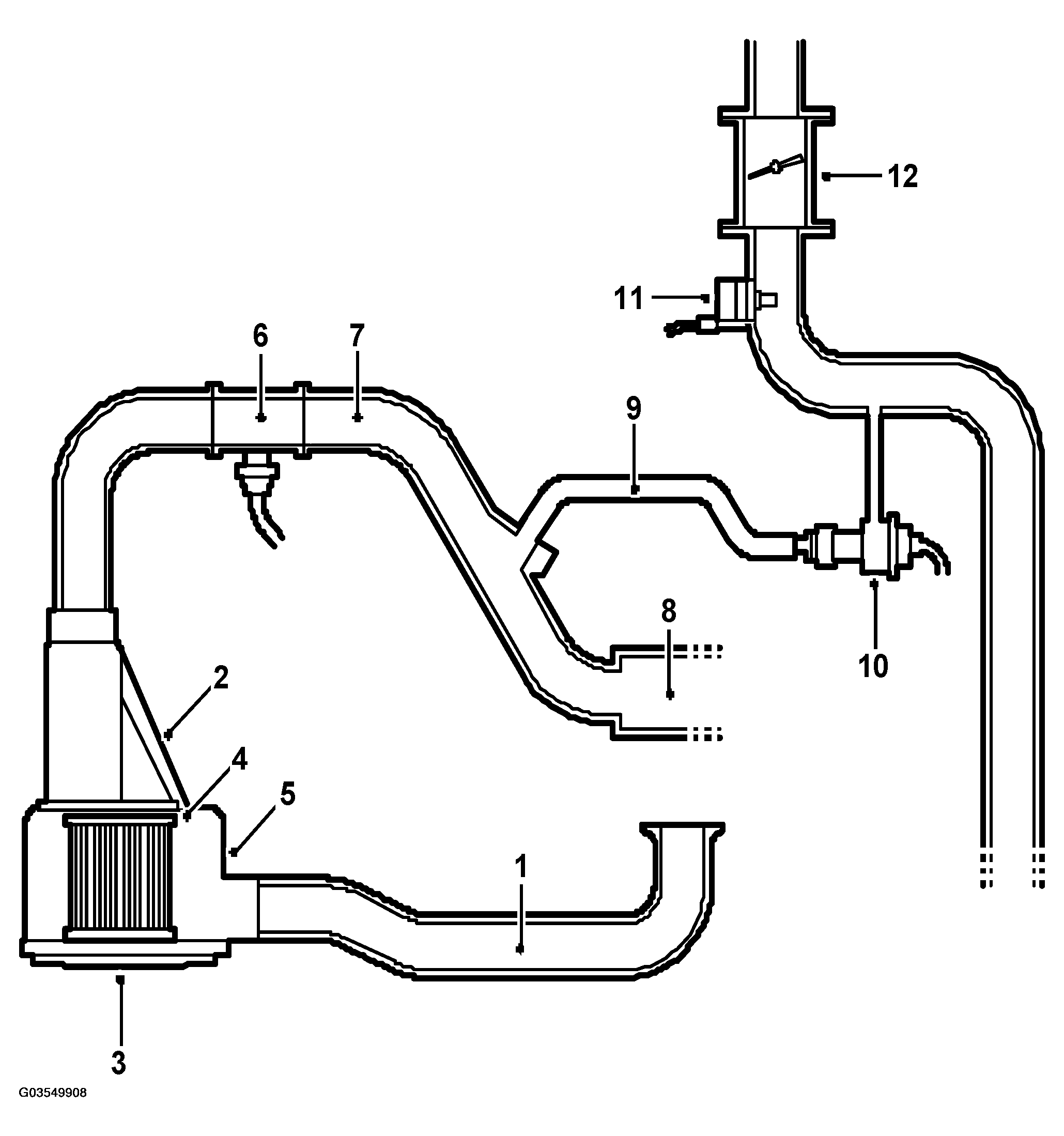

Fig 1: System Overview (V6)
G03549908Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Air intake pipe
  2. Air cleaner consisting of:
  3. Cover
  4. Filter element
  5. Air cleaner casing
  6. Mass air flow sensor
  7. Connecting hose
  8. Pipe connector to turbo unit and charge air cooler
  9. Bypass pipe
  10. Charge air bypass valve
  11. Pressure/temperature sensor
  12. Throttle valve
