Fuel level sensor

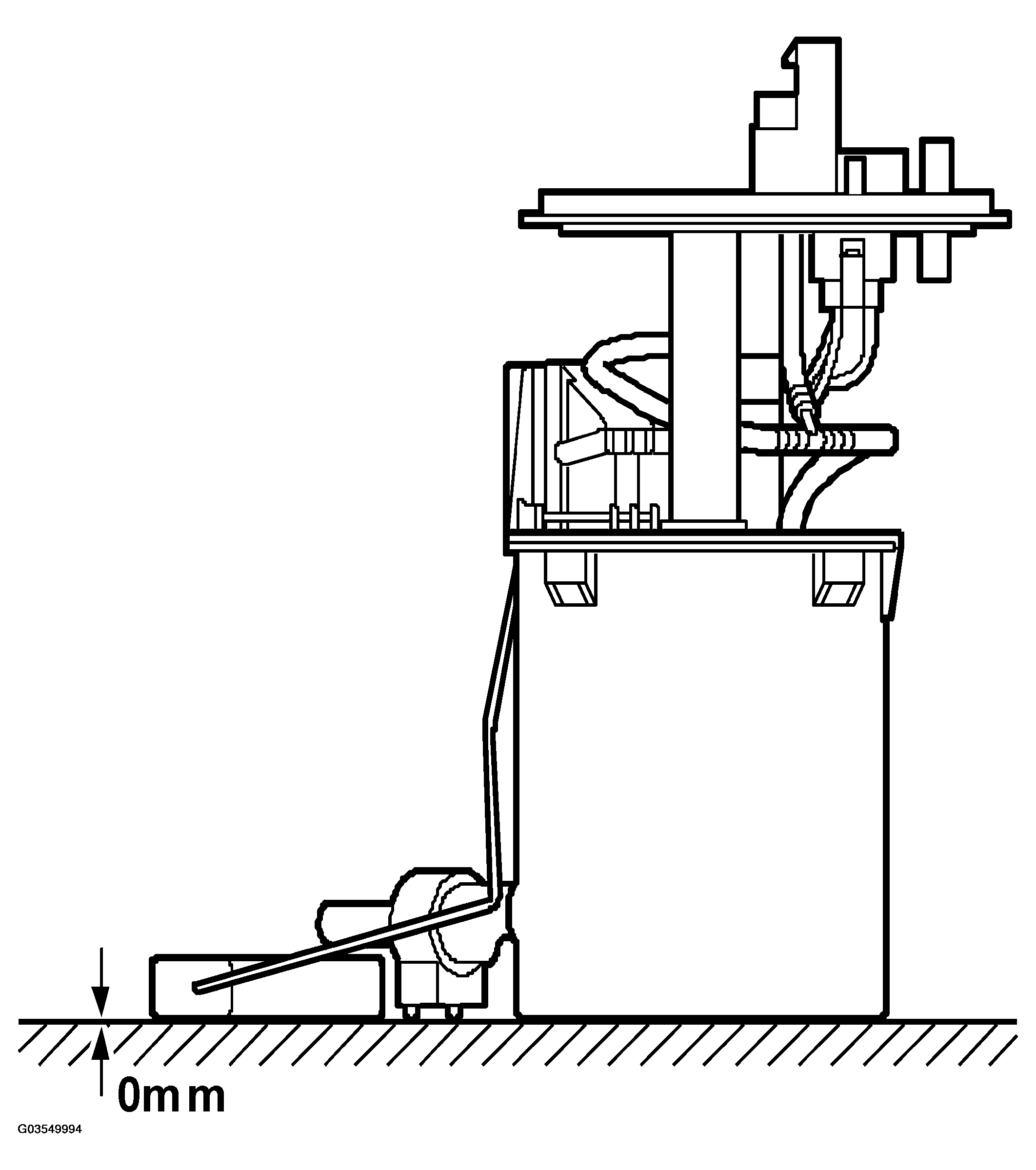

Fig 1: Identifying Fuel Level Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL LEVEL SENSOR TECHNICAL DATA
Resistance, empty tank
Ohms 50+/-1.5
Resistance, full tank
Ohms 425+/-6.5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
