Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

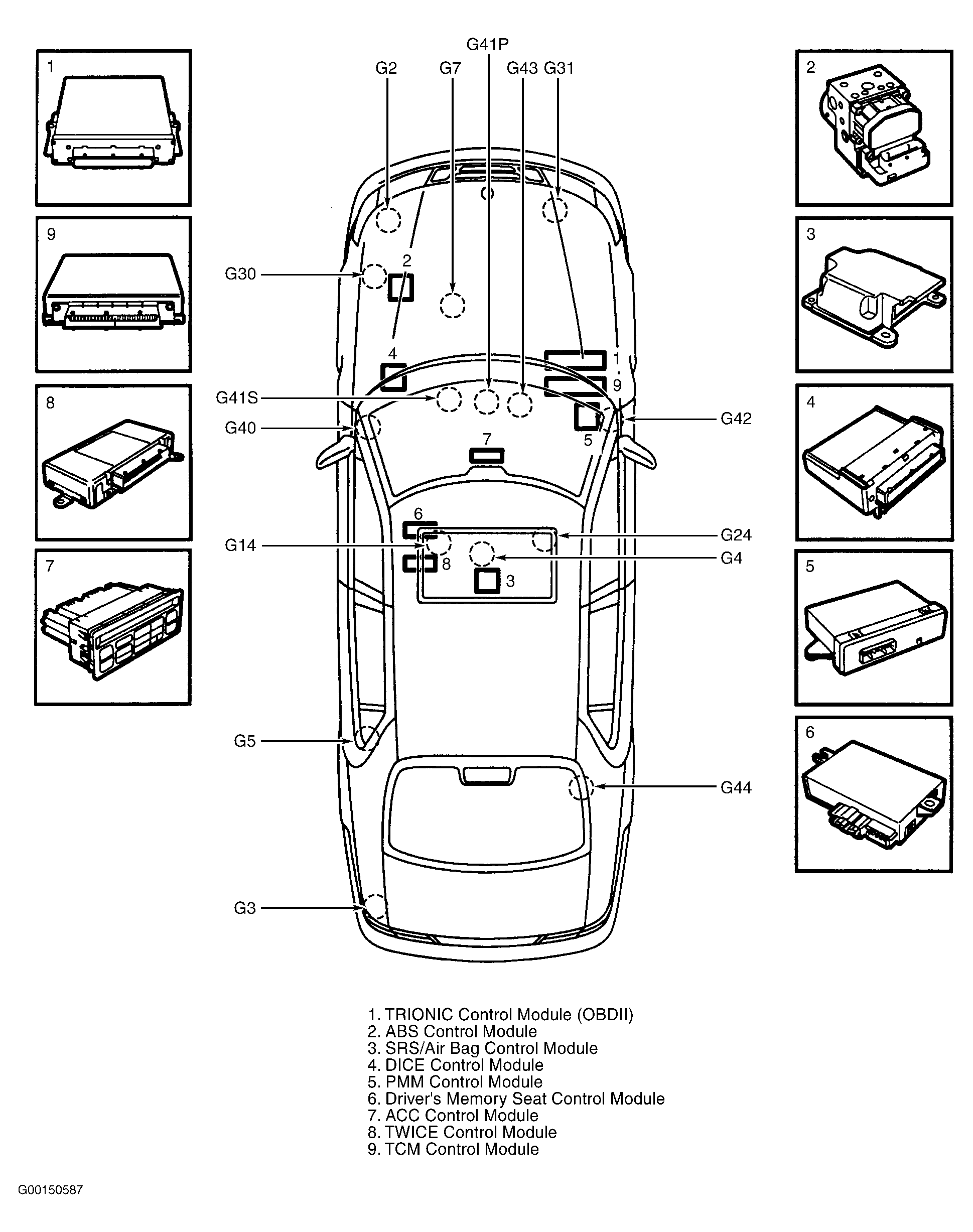

| ABS Control Module | Behind battery, integral to hydraulic unit. See Figure . |
| ACC Control Module | In center of dash. See Figure . |
| ADM Control Module | Integral with rearview mirror. |
| DICE Control Module | Above interior relay block. See Figure . |
| Driver's Memory Seat Control Module | Under driver's seat cushion. See Figure . |

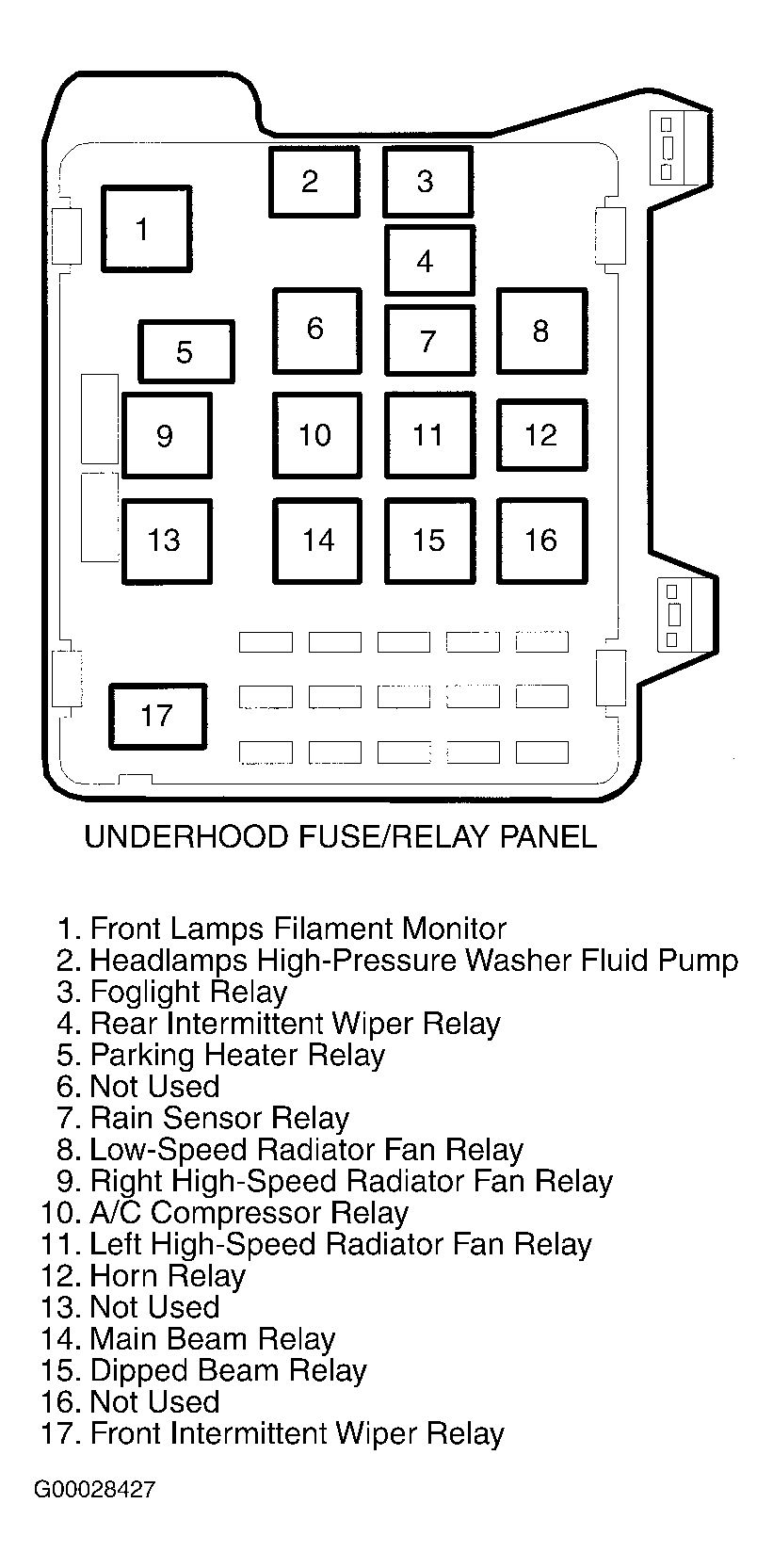

| Front Lamps Filament Monitor | On underhood fuse/relay panel. See Figure . |
| Ignition Discharge Module (2.3L) | On camshaft cover. |
| Ignition Discharge Module (Cylinder Bank No. 1) (3.0L) | On cylinder bank No. 1 camshaft cover. |
| Ignition Discharge Module (Cylinder Bank No. 2) (3.0L) | On cylinder bank No. 2 camshaft cover. |
| PMM Control Module | Above glove box. See Figure . |
| SPA Control Module (4 Door) | On left side of luggage compartment, behind seat back. |
| SPA Control Module (5 Door) | Under lower front of luggage compartment. |
| SRS/Air Bag Control Module | Under floor console, behind handbrake. See Figure . |
| TCM Control Module | On right side of firewall. See Figure . |
| TRIONIC Control Module (OBD II) | In right rear of engine compartment. See Figure . |
| TWICE Control Module | Under driver's seat. See Figure . |
| Ventilation Fan Control Unit | On driver's side of heating & ventilation unit, near firewall. |
