Generator Design: Notes

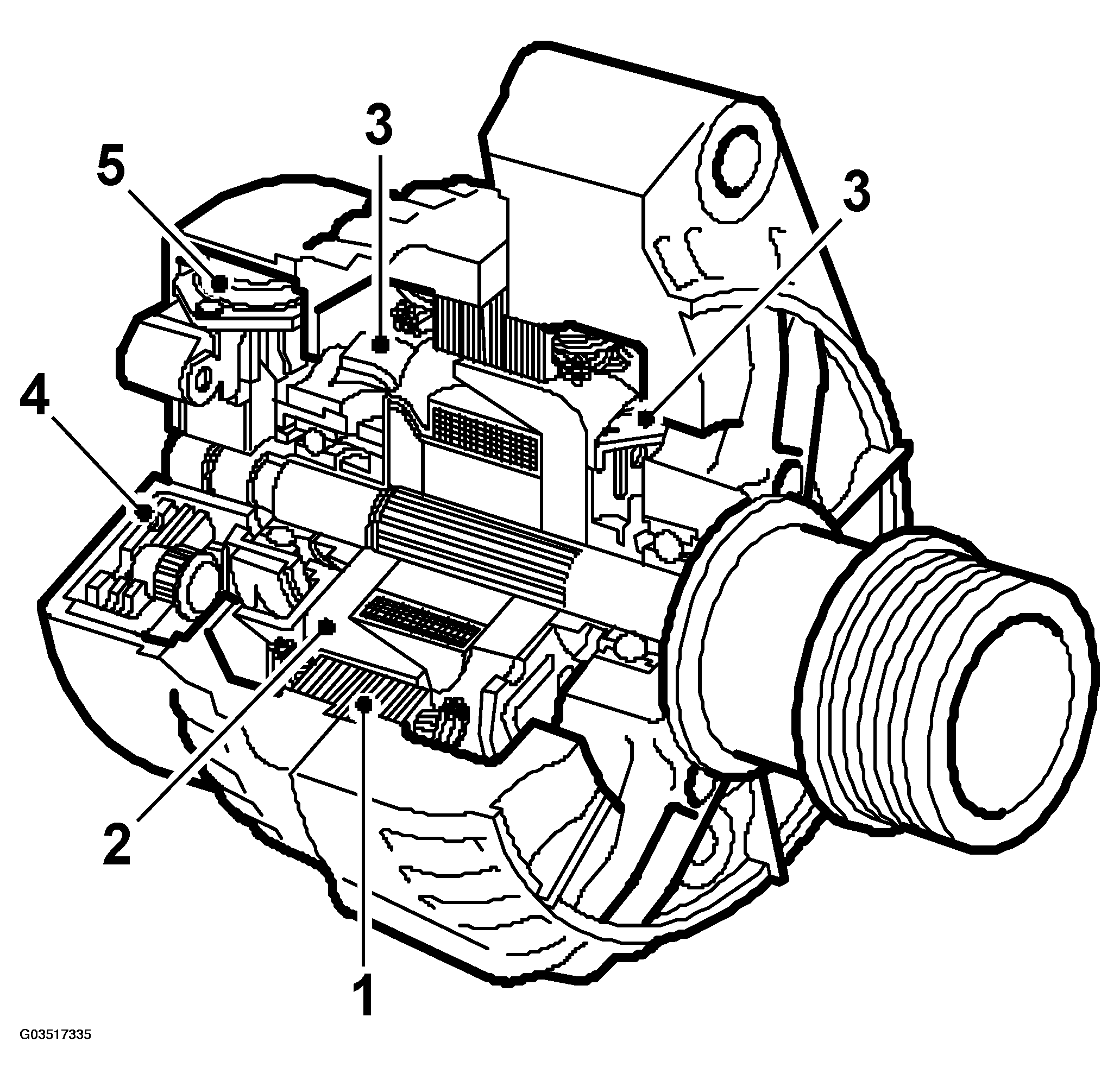

Fig 1: Illustration For Steps 1-5

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Stator
2. Rotor with slip rings
3. Integral fans
4. Rectifier unit
5. Voltage regulator

The generator is of the alternator type with an integrated charge regulator.

It is driven by the engine via a multigroove V-belt from the crankshaft pulley.

Gear ratios for engine/generator are shown in the table below.
