Technical Data: Battery

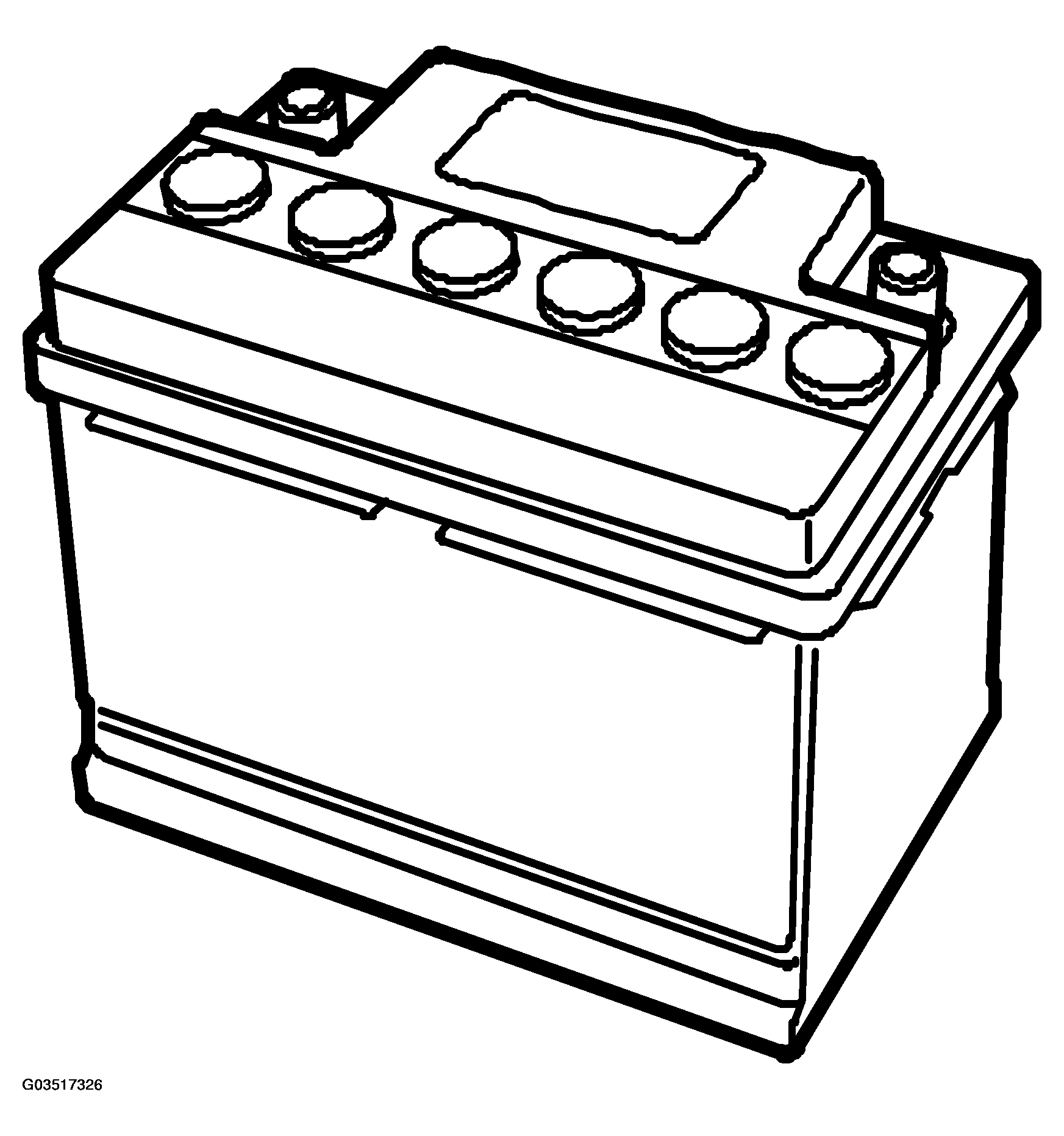

Fig 1: View Of Battery

Courtesy of SAAB-SCANIA OF AMERICA, INC.

BATTERY TECHNICAL DATA

Type designation		Varta 52 41 732	Fiamm 51 07 354
Voltage	V	12	12
Capacity	Ah	70	70
Grounding		Negative	Negative
Specific gravity of electrolyte:
when recharging advisable		1.21	1.21
when battery fully charged		1.28	1.28
Starting current:
EN (European Norm)	A	700	650
SAE	A	700	650
