TCS/ESP function lamp: Notes

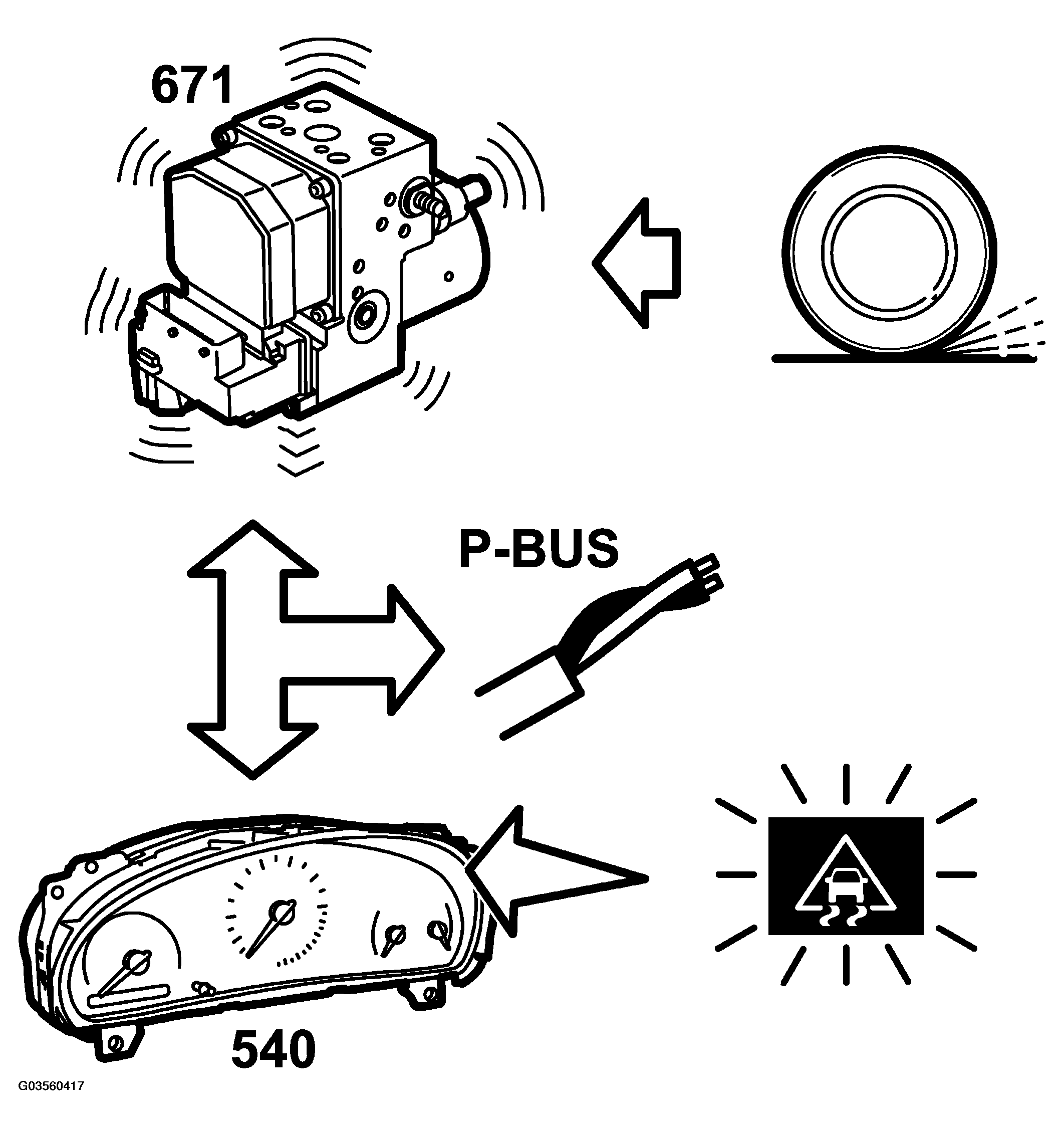

Fig 1: TCS/ESP Function Lamp - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

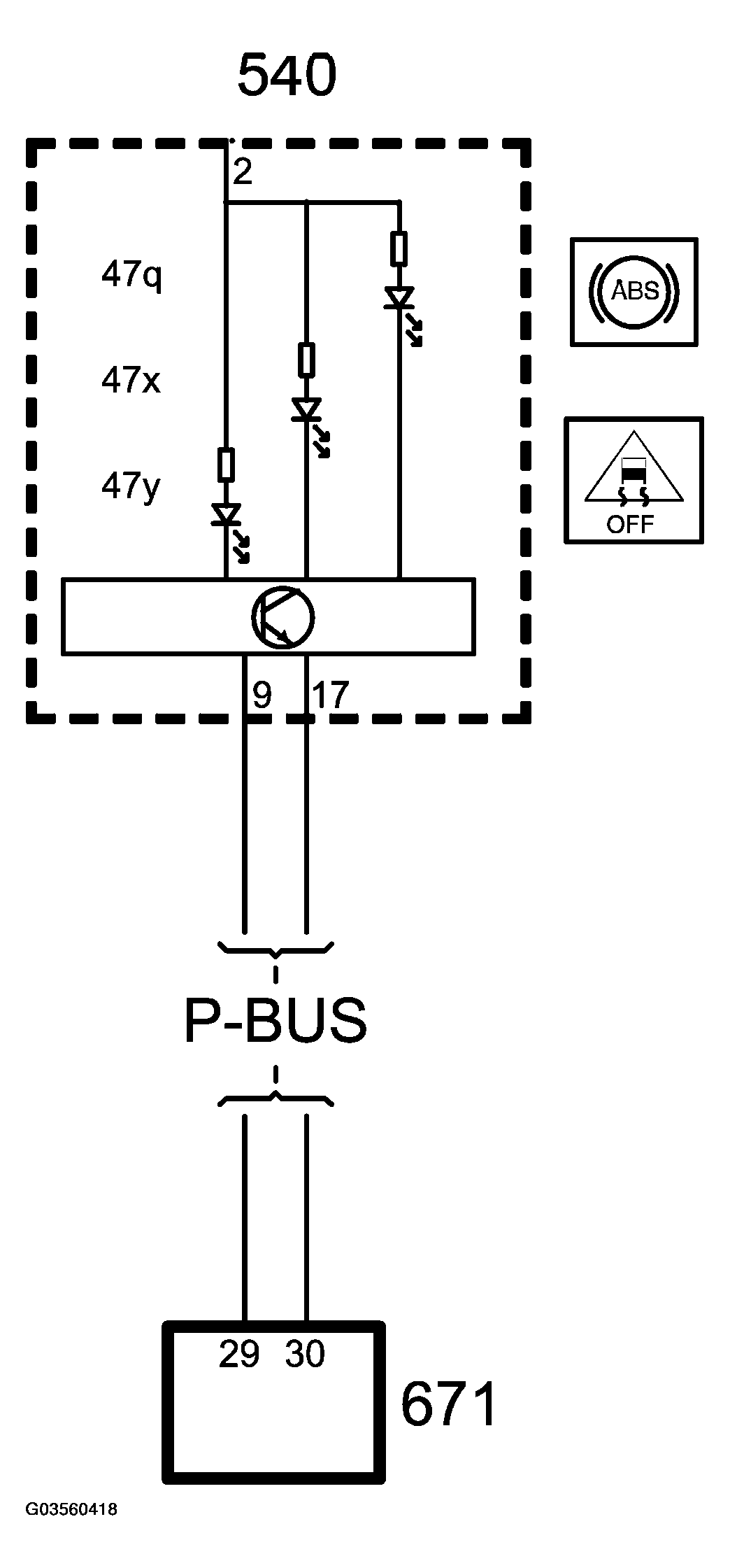

Fig 2: TCS/ESP Function Lamp - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The ESP function lamp is located on the left-hand side of the main instrument unit (in the tachometer). The lamp comes on when the ESP or TCS operate.
