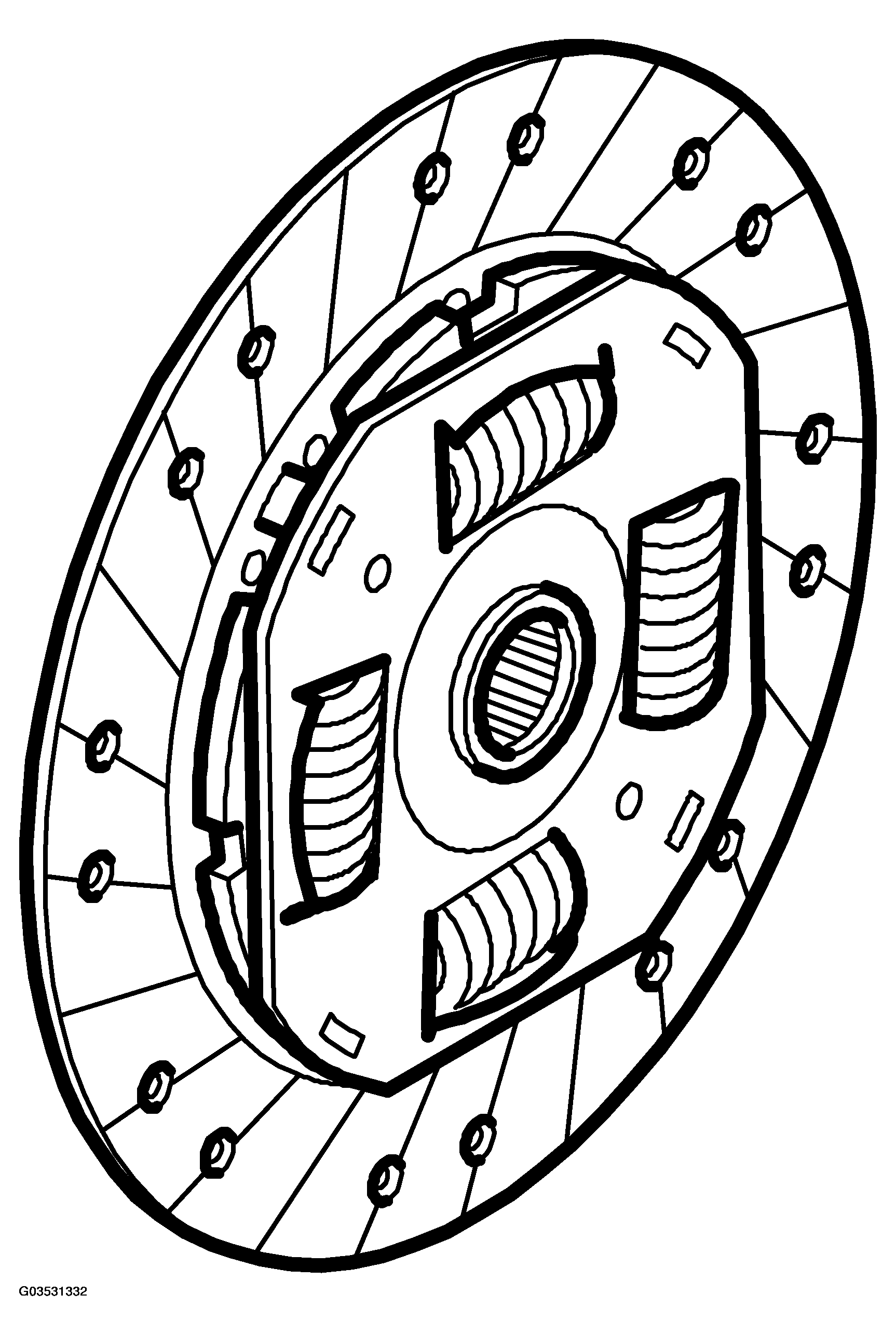

Driven plate
Courtesy of SAAB-SCANIA OF AMERICA, INC. DRIVEN PLATE - TECHNICAL SPECIFICATIONS
| Make |
|
Fichtel & Sachs |
| Type |
|
Single dry-plate clutch with diaphragm spring |
| Diameter |
mm |
228 |
| Lining thickness, new driven plate |
mm |
7.3 0.3 |
| Lining thickness, Min. |
mm |
5.5 |
