Connector H33-5: RHD

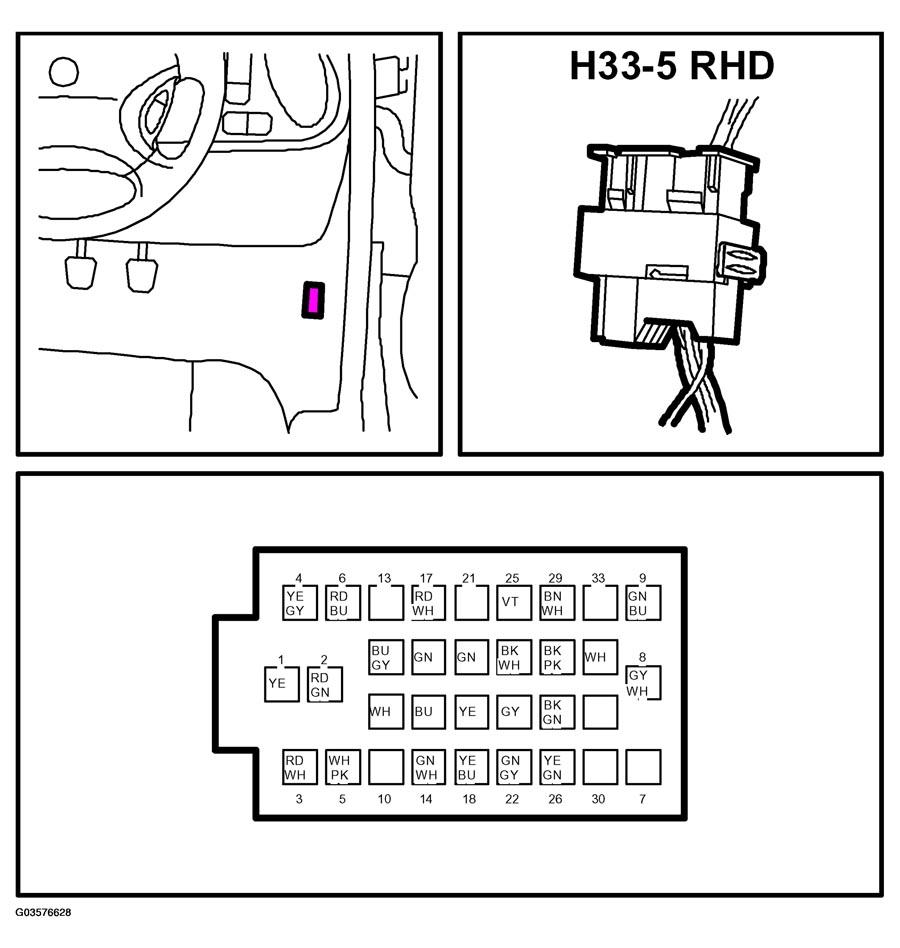

Fig 1: Identifying H33-5 Connector Pinouts (RHD)

G03576628

Courtesy of SAAB-SCANIA OF AMERICA, INC.
