Injectors (206)

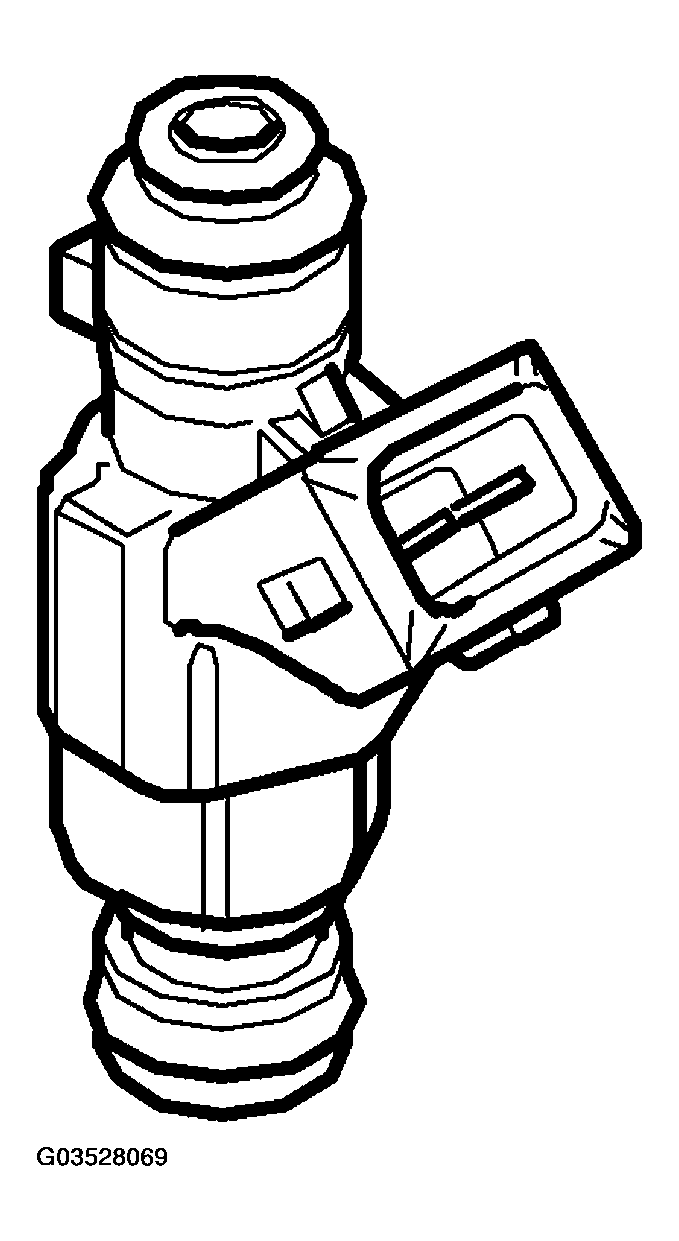

Fig 1: Identifying Injectors
Courtesy of SAAB-SCANIA OF AMERICA, INC.
INJECTORS SPECIFICATIONS
Location
-
On top of intake manifold
Engine type
-
B205E/L/R, B235R
Type
-
Bosch EV6E, brown
Version
-
4-hole
Flow capacity
ml/30 s
176 +/- 10
Maximum permissible difference between injectors
ml
20
