PSM Control Module Outputs, I-Bus

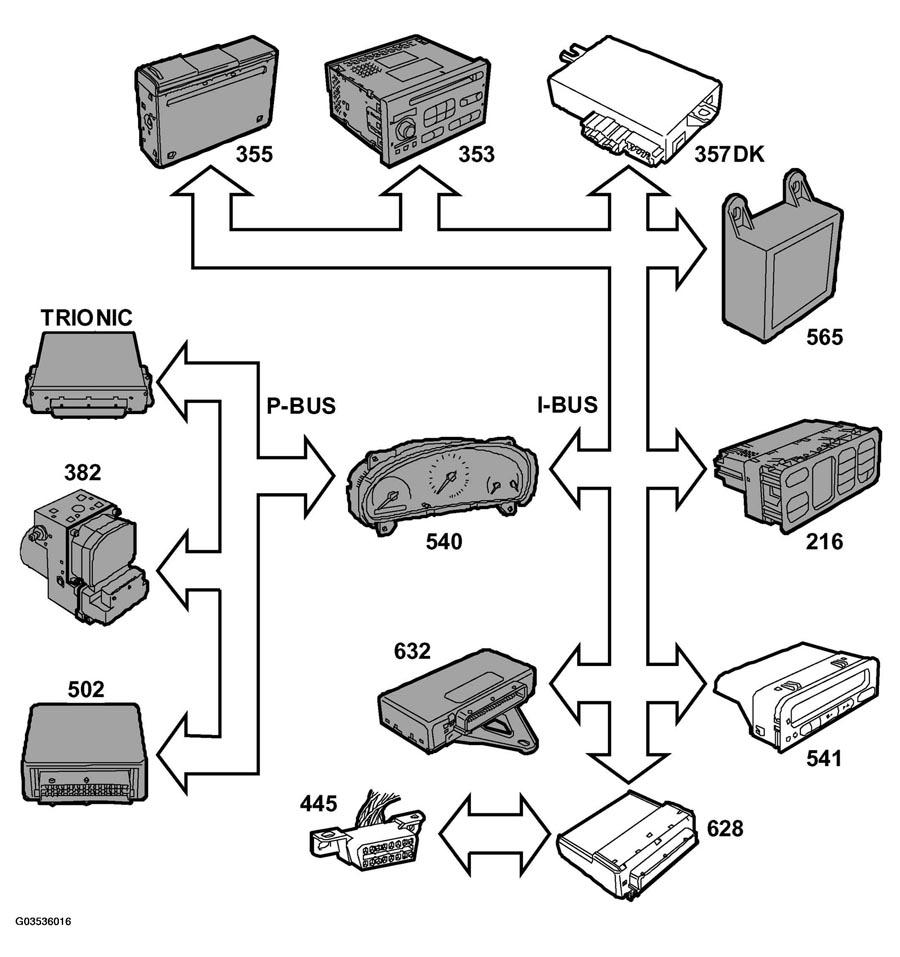

Fig 1: Identifying PSM Control Module Outputs, I-Bus

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Acoustic confirmation to SID (541).
• Memory buttons 1-3 to PMM (611), see RECALLING MEMORY SETTING
• Memory Store Button ON/OFF to PSM (611), see MEMORY RETRIEVAL
• DIAGNOSTIC  communication to DICE (628)

For further information on bus communication, see SYSTEM OVERVIEW  .
