PSM Control Module Inputs, I-Bus

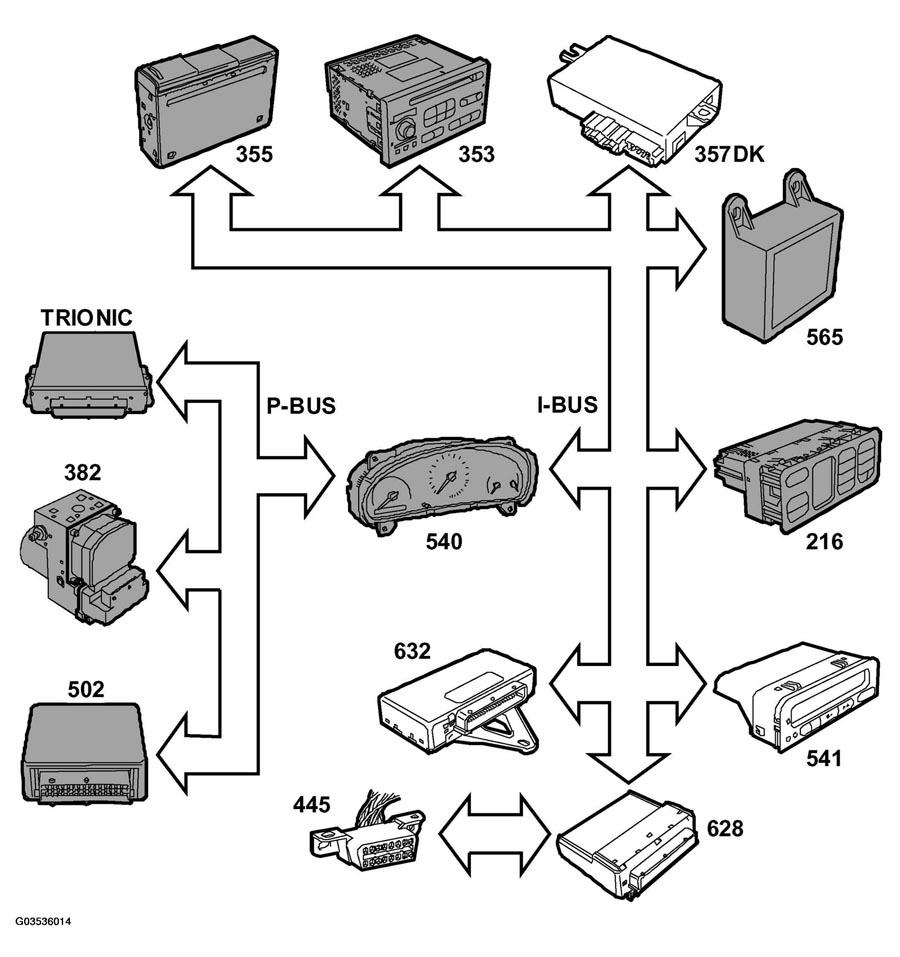

Fig 1: Identifying PSM Control Module Inputs, I-Bus

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Driver Door (open/closed) from TWICE (632), see SYSTEM OVERVIEW  , electrically adjustable front passenger seat and Main components, electrically adjustable front passenger seat
• Passenger Door (open/closed) from TWICE (632), see SYSTEM OVERVIEW  , electrically adjustable front passenger seat and Main components, electrically adjustable front passenger seat
• Power supply +54 from DICE (628)
• Diagnostic communication from DICE (628), see BUS COMMUNICATION

For further information on bus communication, see SYSTEM OVERVIEW  .
