Home >> Saab >> 2002 >> 9-3 Viggen, 2D Hatchback >> Repair and Diagnosis >> Body & Frame >> Seats >> Adjustment - Replacement >> PSM Control Module >> To Remove

To Remove

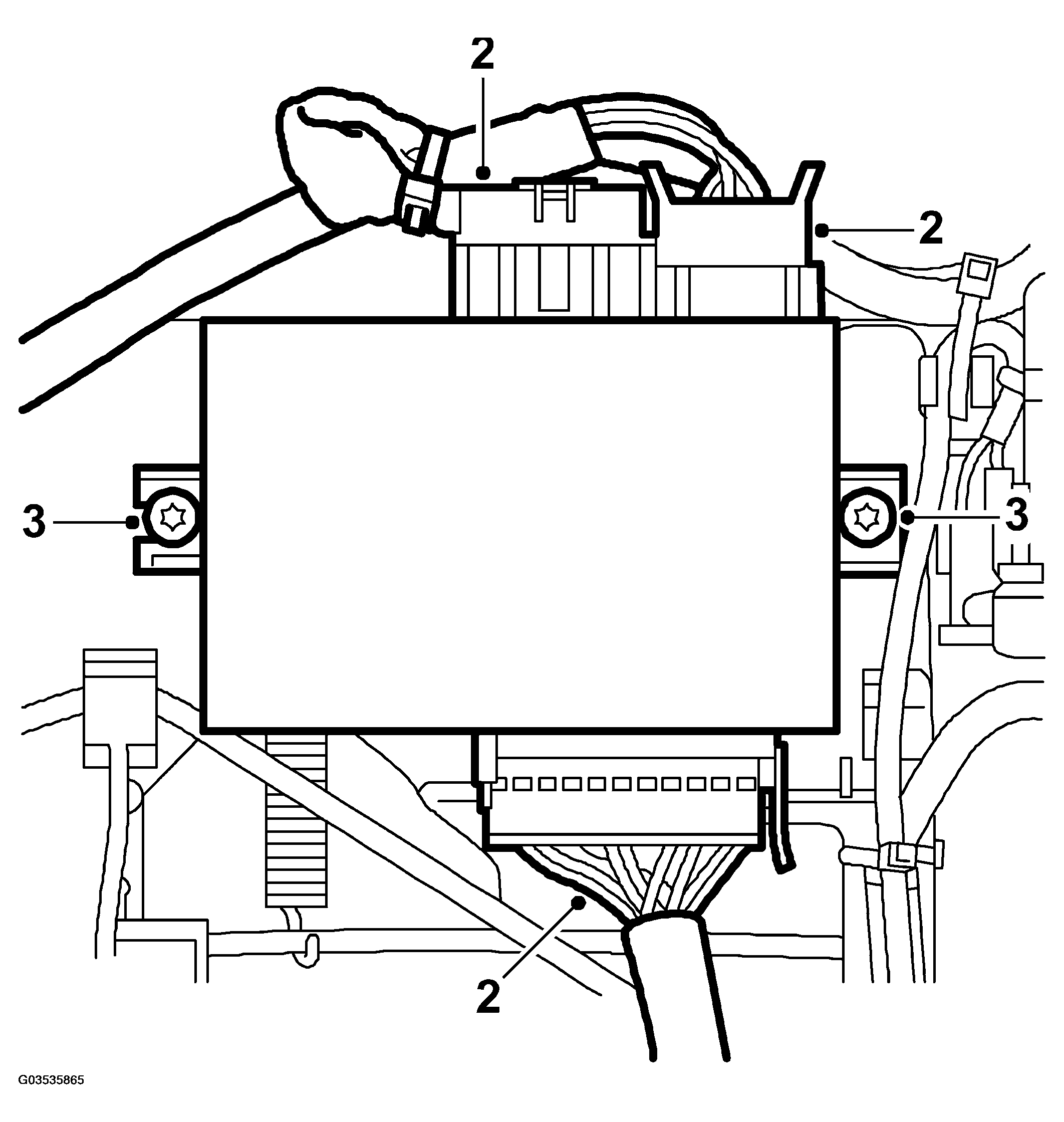

Fig 1: Illustration For Step 2-3
G03535865Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the front seat and tip it rearward, see FRONT SEAT  .
  2. Unplug 3 connectors on the control module.
  3. Unscrew the control module from the console, 2 screws.
