Control Module Outputs For Anti-Theft Alarm, Bus

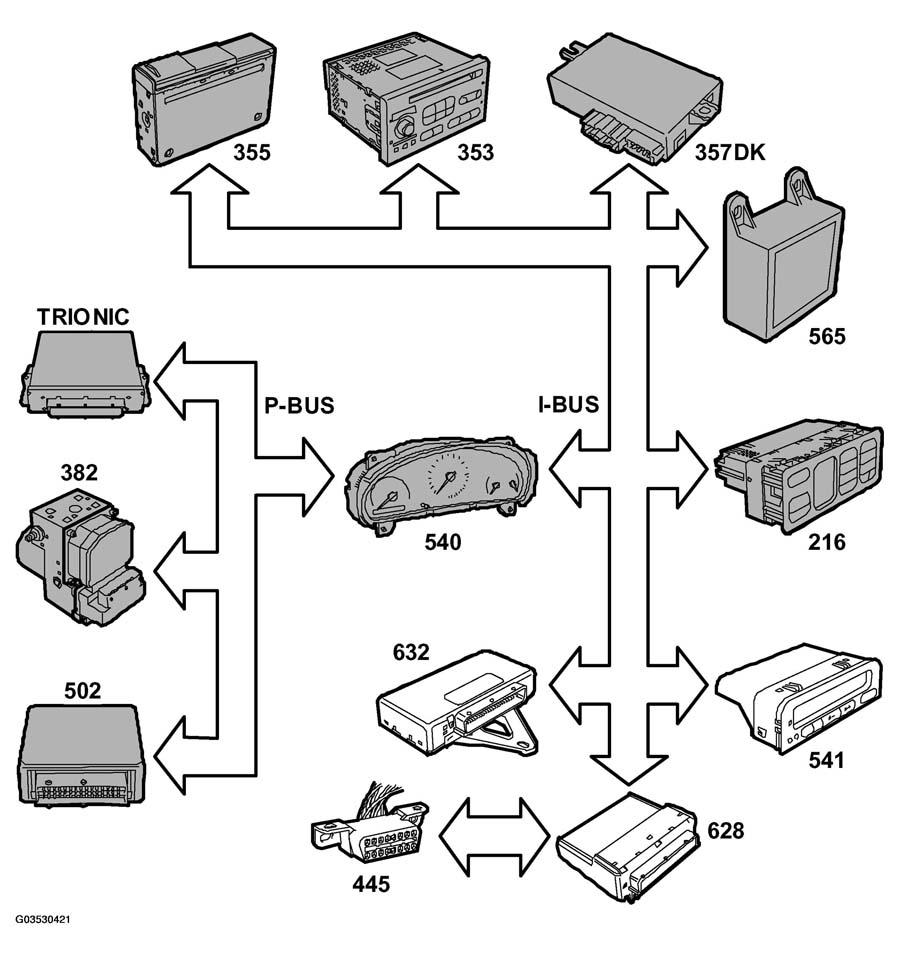

Fig 1: Communication Diagram - Control Module Outputs For Anti-Theft Alarm, Bus

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Text message used by SID (541)
• Hazard flashers (on/off) used by DICE (628)
• Diagnostics communication

For a more detailed description of the control module's input information from the bus, see BUS COMMUNICATION

For a further description of diagnostics, see BUS AND DIAGNOSTICS COMMUNICATION
