Control Module Inputs For Immobilizer, Bus (Diesel)

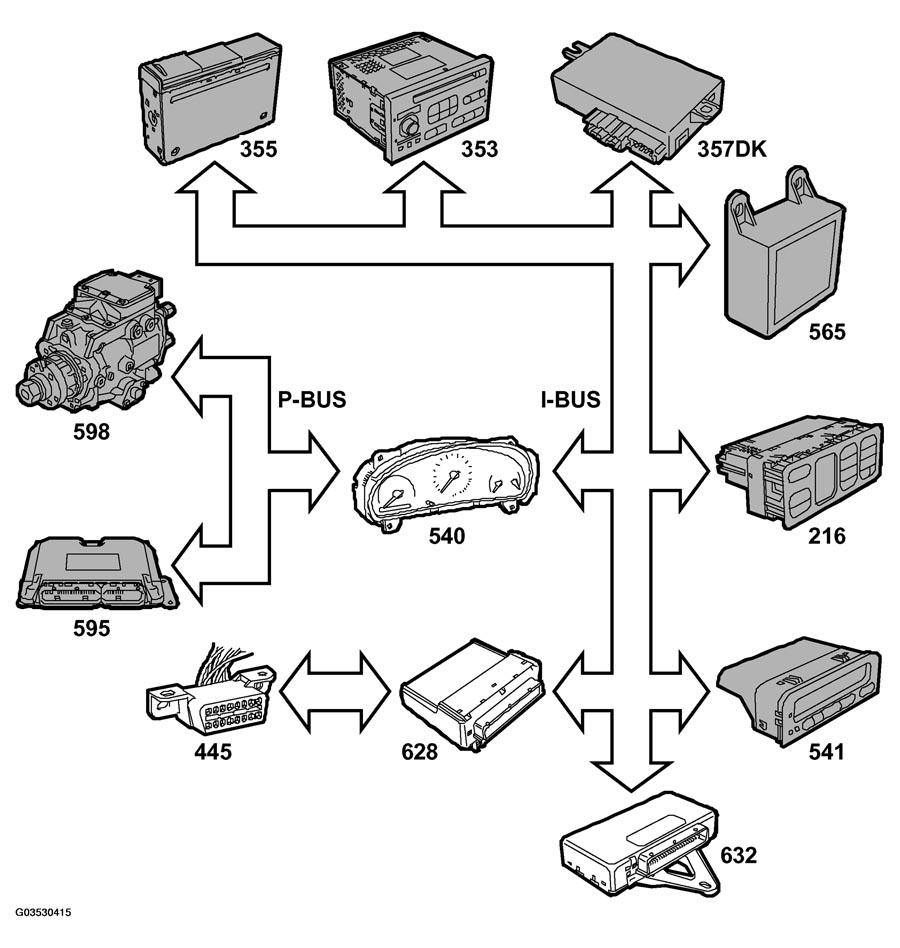

Fig 1: Communication Diagram - Control Module Inputs For Immobilizer, Bus (Diesel)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Theft-protection information from MIU (540)
• Diagnostics communication

For a more detailed description of the control module's input information from the bus, see BUS COMMUNICATION

For a further description of diagnostics, see BUS AND DIAGNOSTICS COMMUNICATION
