Key Switch In Front Doors

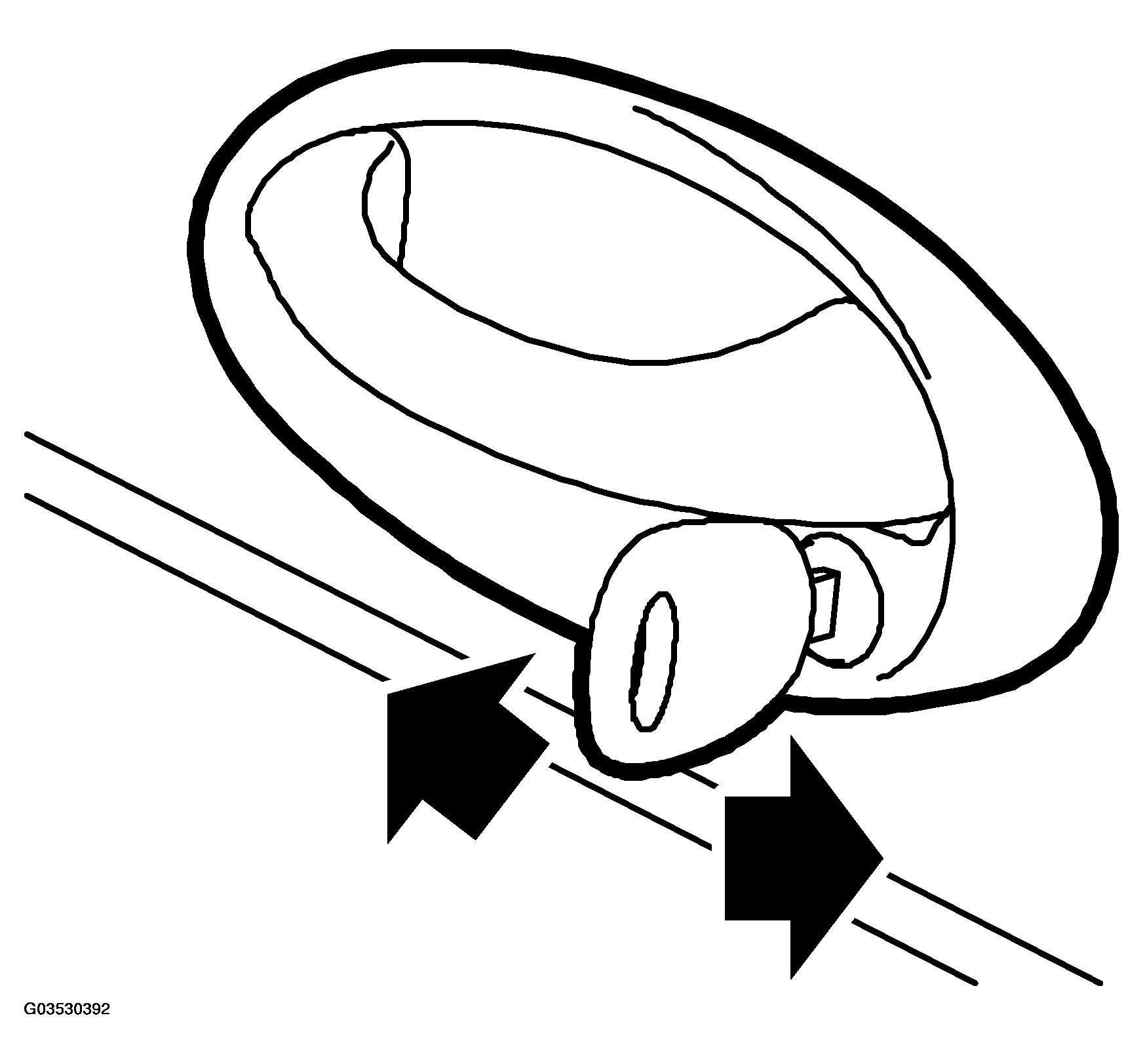

Fig 1: Identifying Key Switch In Front Doors
G03530392Courtesy of SAAB-SCANIA OF AMERICA, INC.
KEY SWITCH TECHNICAL DATA

Location In lock unit
Type Normally open
Lock Pin No. 6
Unlock Pin No. 2
Ground Pin No. 5
