Control Module, TWICE

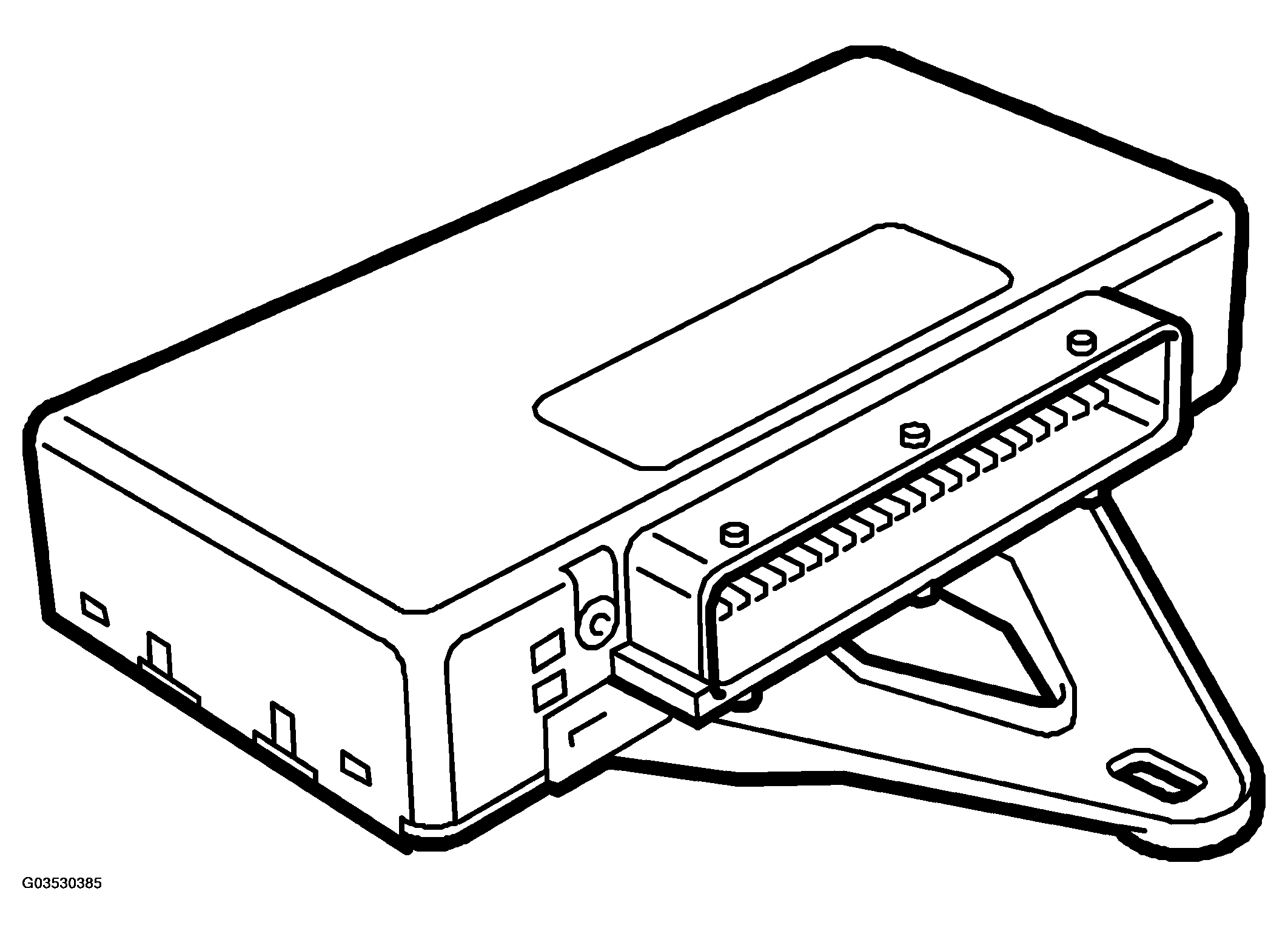

Fig 1: Identifying Control Module (TWICE)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TOOLS COMPATIBILITY DESCRIPTIONS

Location	Under left-hand front seat, screwed to the floor
Number of pins	70
Power supply (+30 circuit)	Pin No. 43
Power supply +15, logic/key position	Pin No. 16
Power supply +B, logic/key position	Pin No. 17
Power ground	Pin No. 70
Signal ground	Pin No. 37
Instrument bus, I-BUS (+)	Pin No. 38
Instrument bus, I-BUS (-)	Pin No. 15
