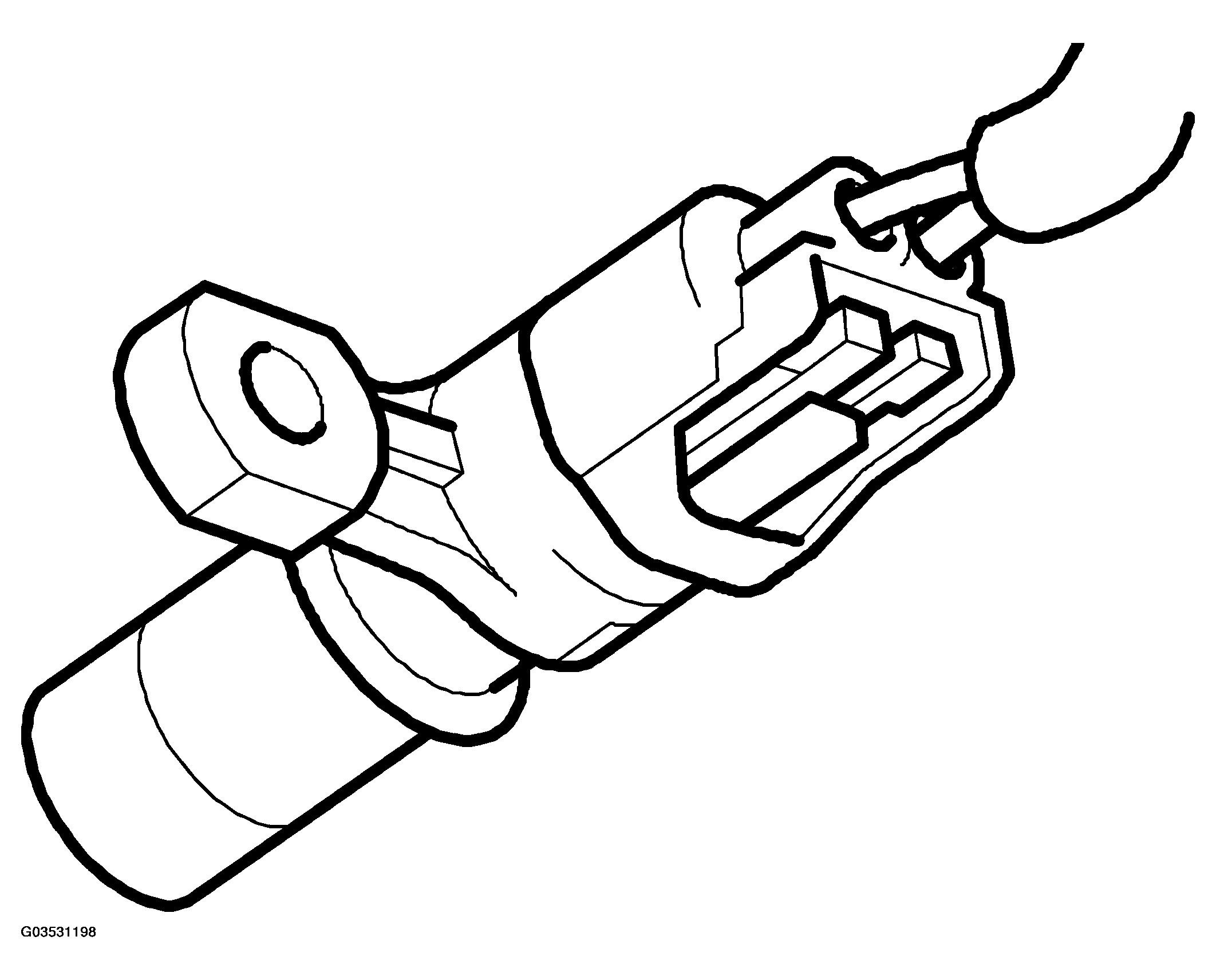

Sensor, output shaft speed
WARNING: This page is about a different variant/trim than selected.
Courtesy of SAAB-SCANIA OF AMERICA, INC. OUTPUT SPEED SENSOR SPECIFICATIONS
| Location |
On the gearbox |
| Type |
Inductive sensor |
| Resistance, shift 2-3 at 20°C |
Ohm |
450+/-150 |
| Toothed wheel |
number of teeth |
18 |
