Section 2 (Automatic Transmission)
>>
Fault diagnosis, symptoms
>>
WINTER or SPORT mode cannot be selected
>>
Notes
WINTER or SPORT mode cannot be selected: Notes
WARNING:
This page is about a different variant/trim than selected.

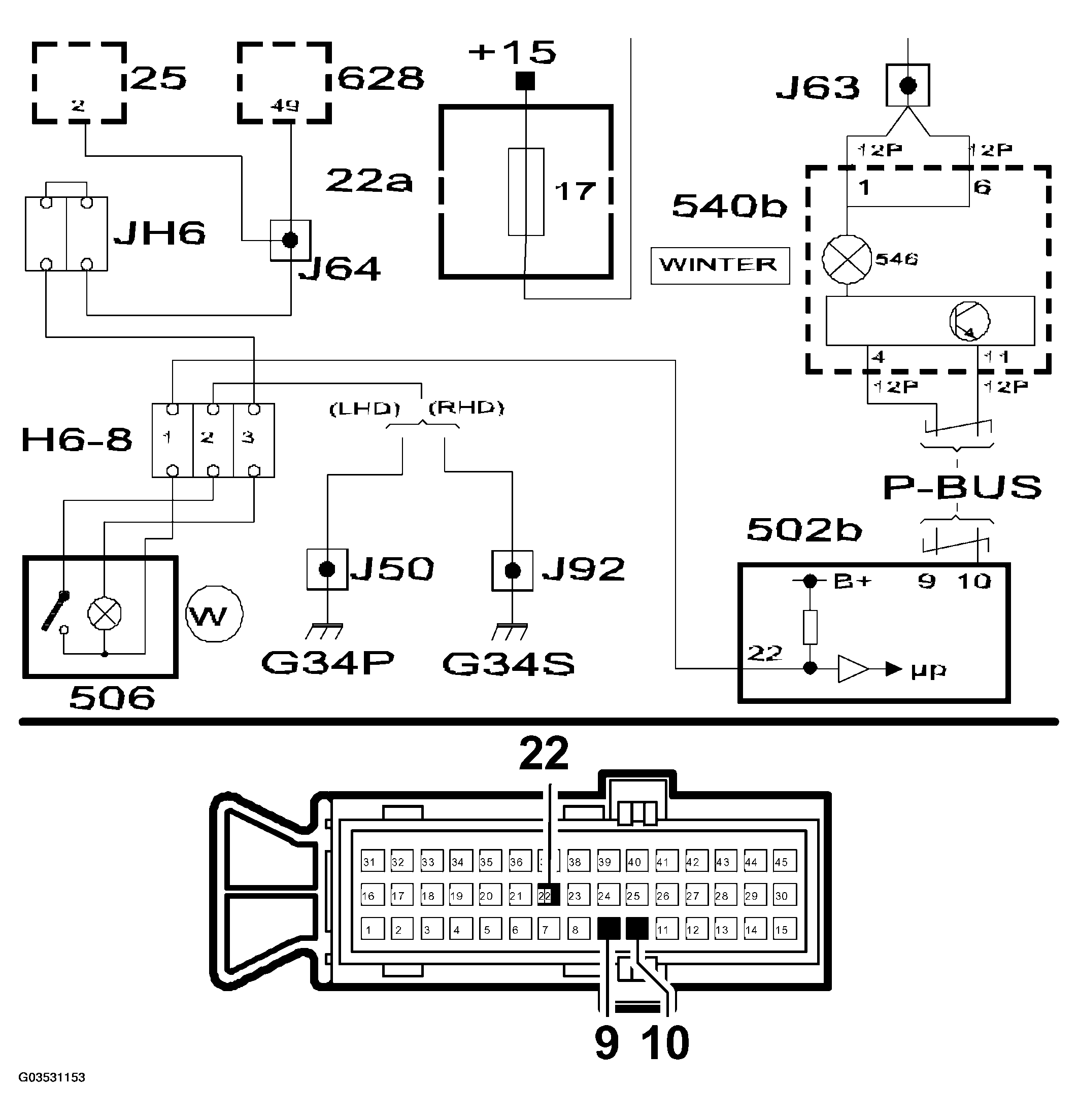

Fig 1: Winter Mode - Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
