DTC P0705: Selector Position Sensor. Input Wrong.: Notes

WARNING: This page is about a different variant/trim than selected.

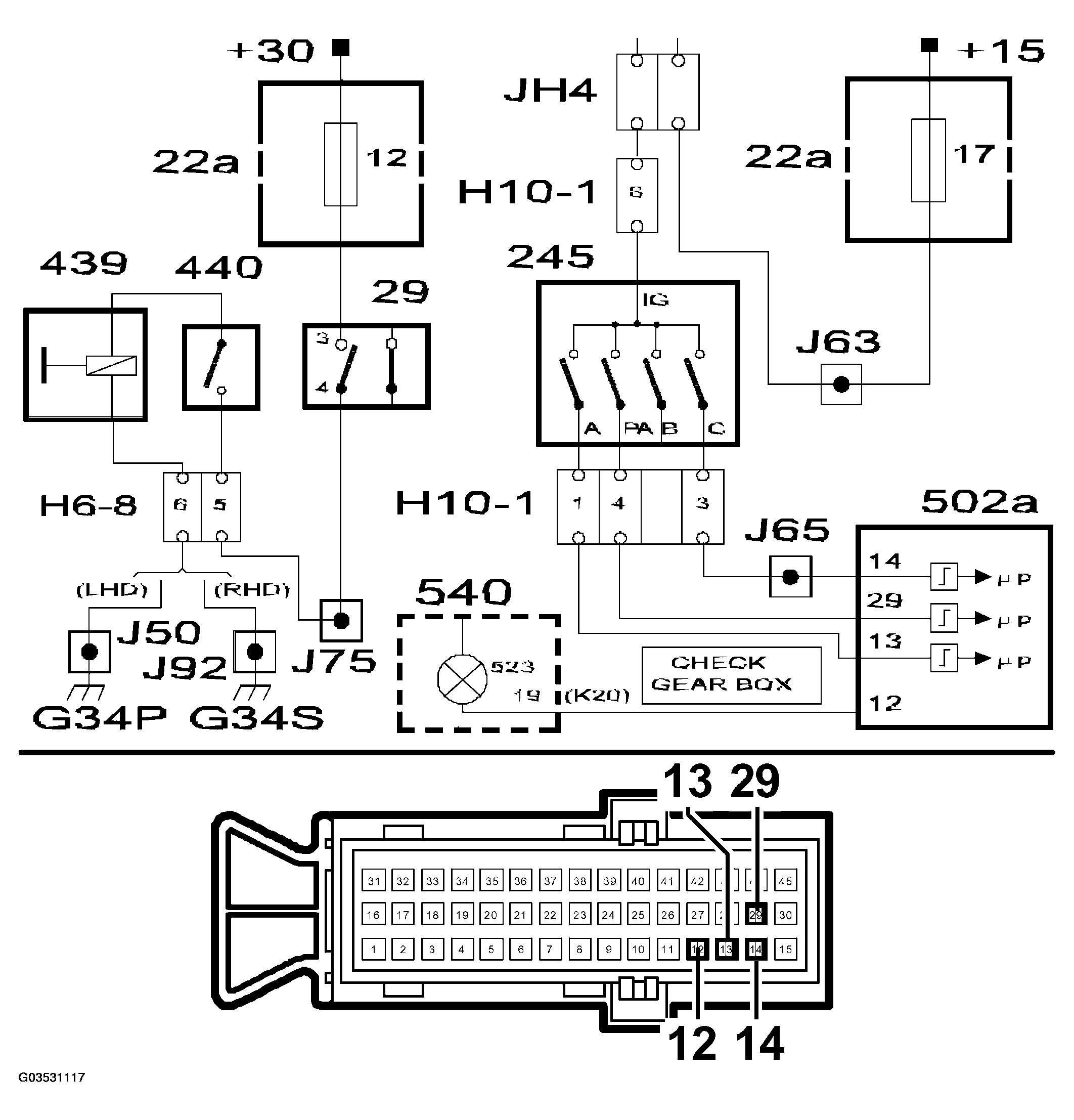

Fig 1: Selector Position Sensor - Circuit Diagram (Input Wrong)
G03531117Courtesy of SAAB-SCANIA OF AMERICA, INC.
