To remove

WARNING: This page is about a different variant/trim than selected.
  1. Put the expansion tank out of the way.

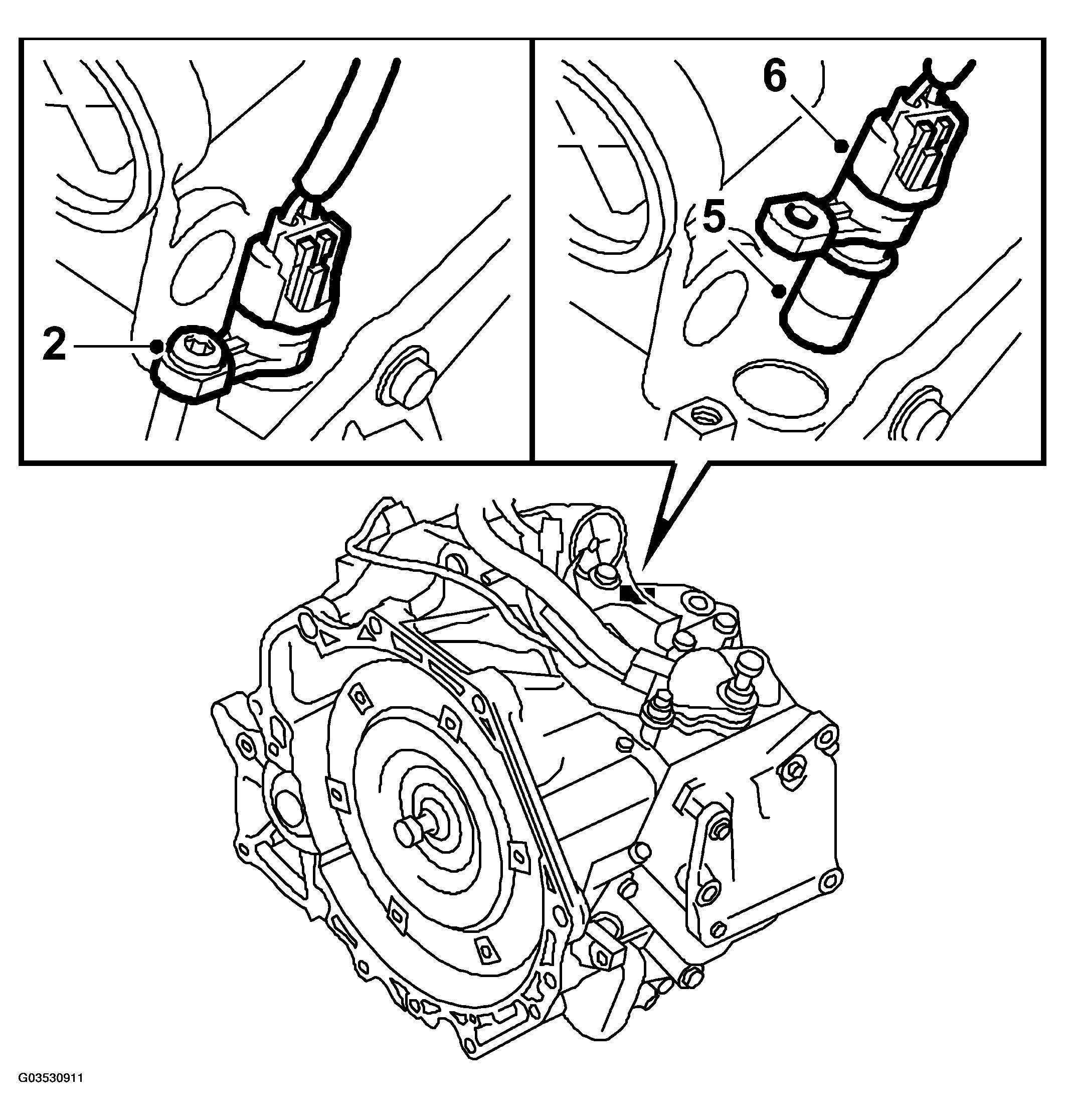

    Fig 1: Illustration For Steps 2, 5-6
    G03530911Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the sensor's screw.
  3. Raise the car.
  4. Remove the front left wheel.
  5. Remove the sensor.
  6. Unplug the connector.
