Valve seats: Notes

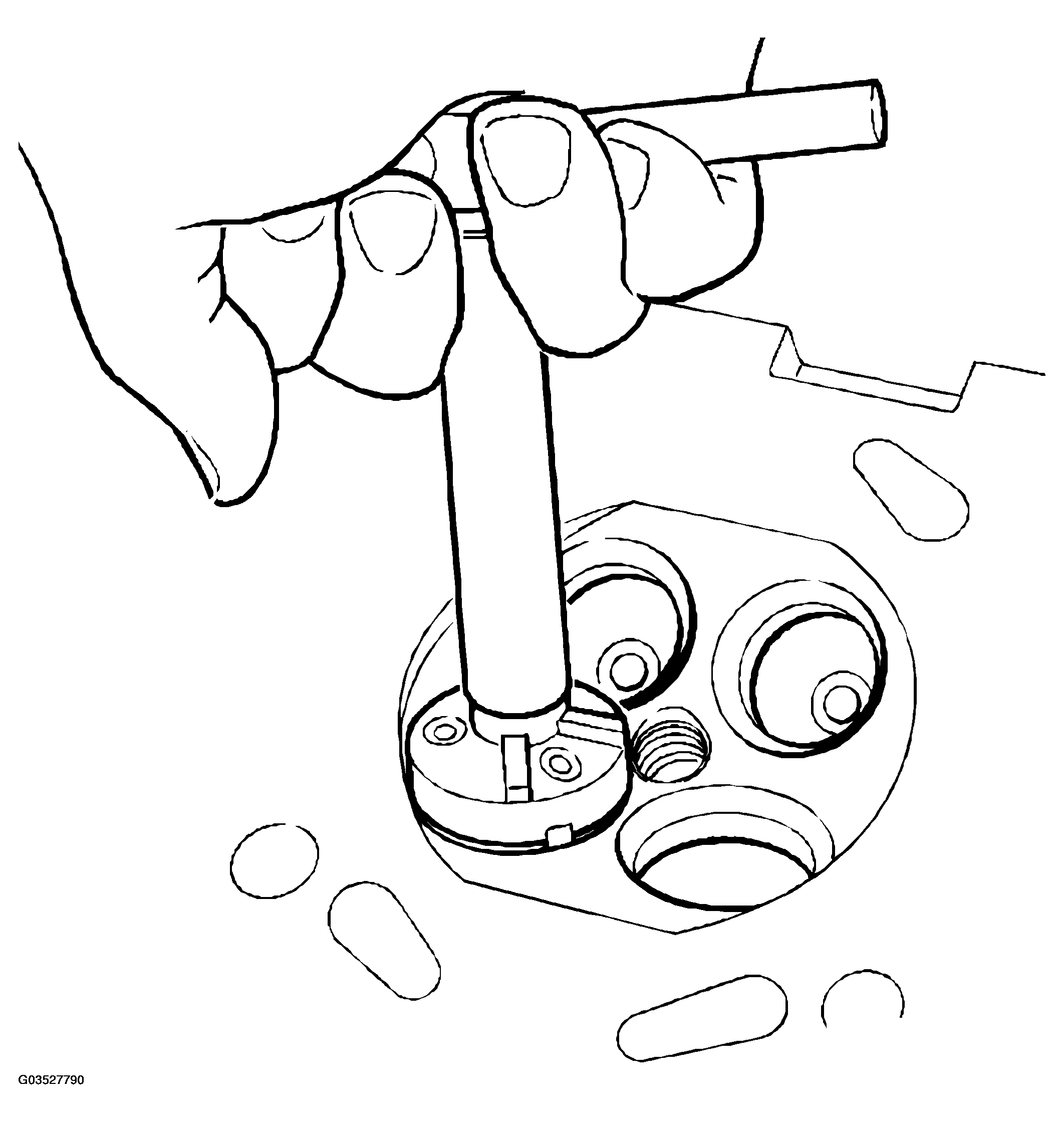

Fig 1: Identifying Valve Seats

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Use a valve cutter set with T-wrench, locating spindle part no. 83 93 928, valve seat cutters part no. 83 93 936 (60°) and part no. 78 61 040 (45°).

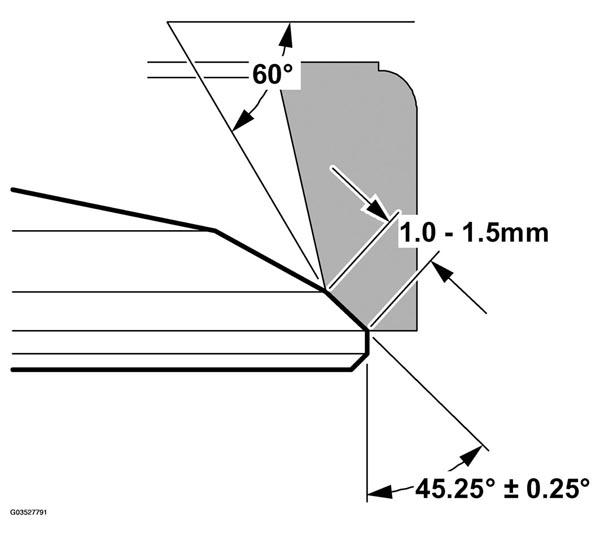

Fig 2: Identifying Valve Seating Angle (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

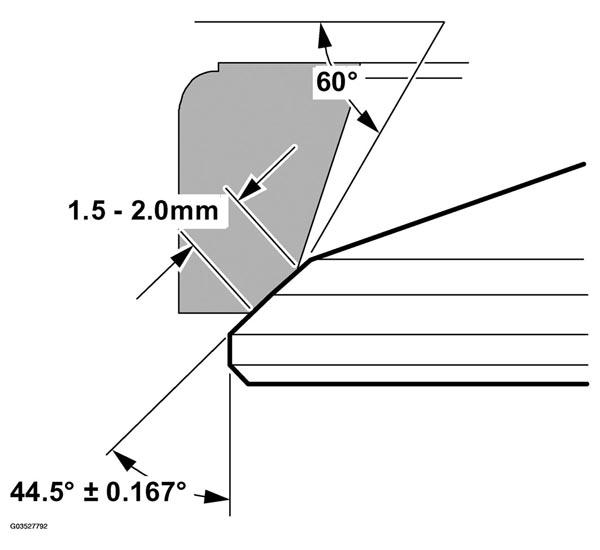

Fig 3: Identifying Valve Seating Angle (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
