Main components

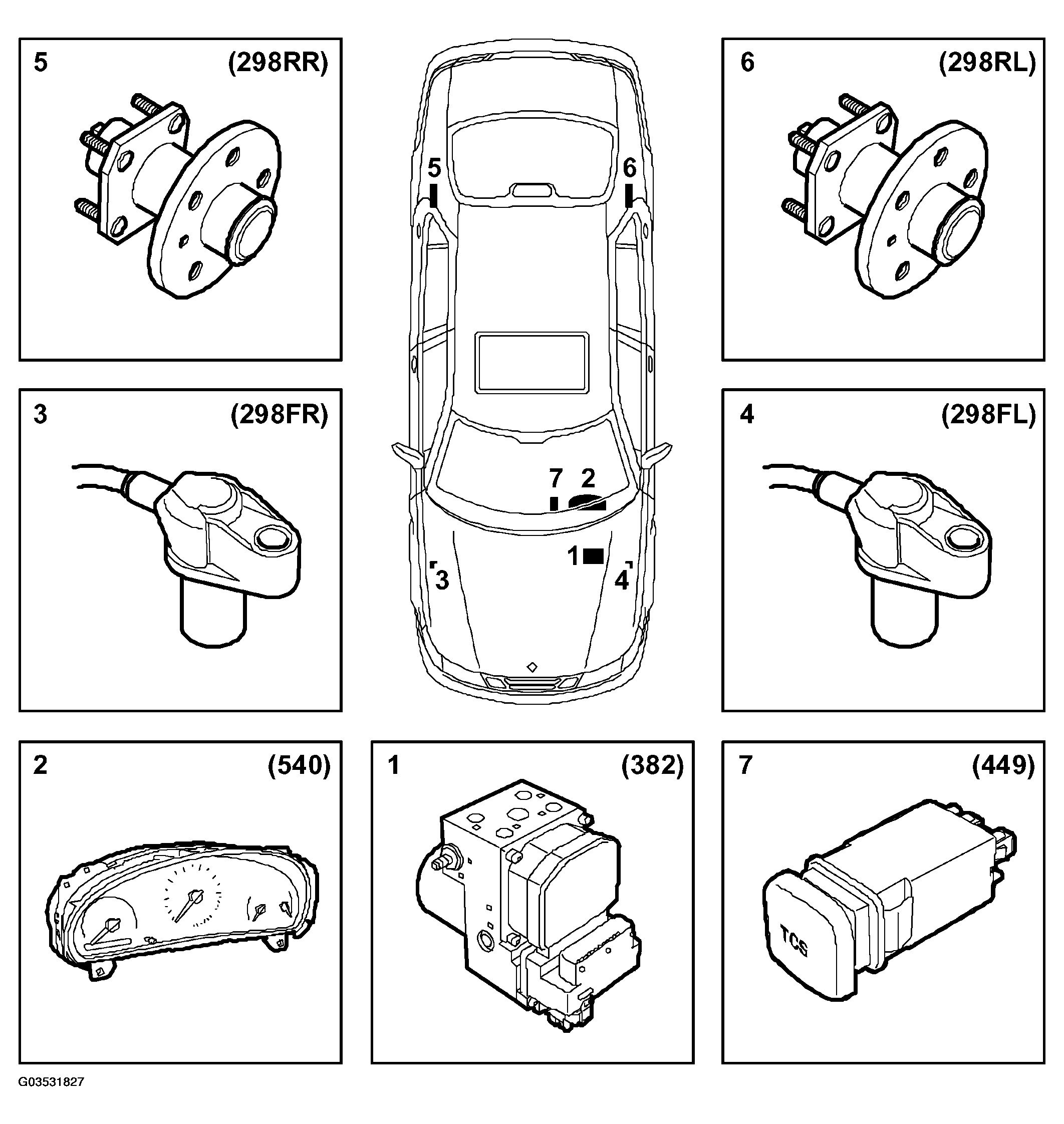

Fig 1: Identifying TC/ABS 5.3 Main Components
G03531827Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Hydraulic unit including control module, valve body and return pump (382)
  2. ABS warning lamp, Indicator lamp TCS OFF, TCS lamp (540)
  3. Wheel sensor, FR (298)
  4. Wheel sensor, FL (298)
  5. Wheel sensor, RR (298)
  6. Wheel sensor, RL (298)
  7. TCS ON/OFF switch (449)
