Control module connections

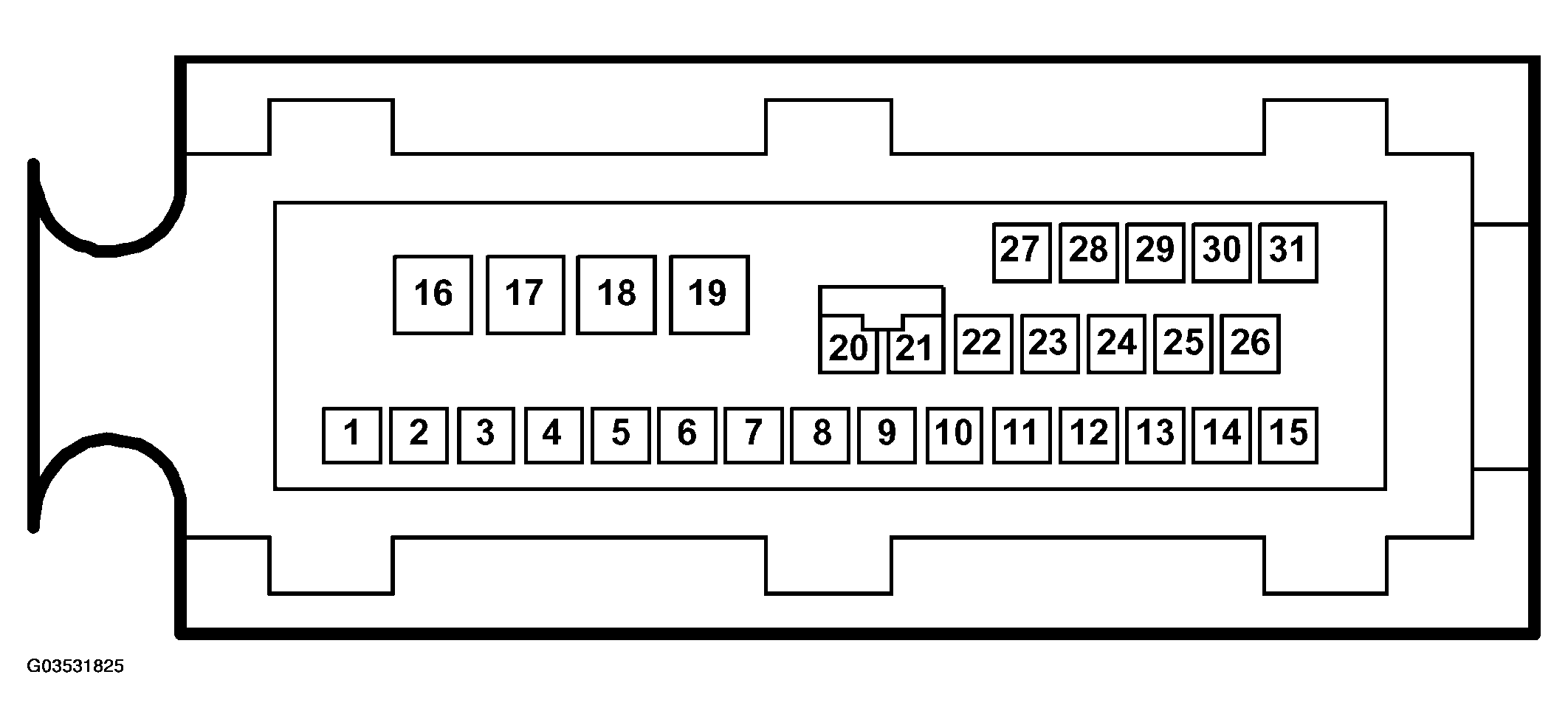

Fig 1: Identifying Control Module Connections Pinouts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: BOB cable assemblies have not been produced for ABS 5.3, ABS 5.4 or TC/ABS 5.3. Unless otherwise stated, the test readings are those that should be obtained on the control module's connector (unplugged). For TC/ABS 5.3, certain readings can be taken with the BOB cable assembly connected to the Trionic T7 control module, see the notes under Test reading.

= greater than; < = less than; ~ = alternating current (LP: LOGIC PROBE P = select pulse; p = visible pulse)

CONTROL MODULE CONNECTIONS PINOUTS REFERENCE

Pin	Cable color	Component/function	In/Out	Test conditions	Test across	Test reading	See
1	YE	Wheel sensor, RR: Reference ground	In	Rotate the wheel one turn per second	1-2	100 mV AC	REAR-WHEEL SENSORS
2	BK	Wheel sensor, RR: Signal input	In	Rotate the wheel one turn per second	2-1	100 mV AC	REAR-WHEEL SENSORS
3	WH	Wheel sensor, FR: Reference ground	In	Rotate the wheel one turn per second	3-5	100 mV AC	FRONT-WHEEL SENSORS
4	Spare
5	VT	Wheel sensor, FR: Signal input	In	Rotate the wheel one turn per second	5-3	100 mV AC	FRONT-WHEEL SENSORS
6	BU	Wheel sensor, FL: Reference ground	In	Rotate the wheel one turn per second	6-7	100 mV AC	FRONT-WHEEL SENSORS
7	BU	Wheel sensor, FL: Signal input	In	Rotate the wheel one turn per second	7-6	100 mV AC	FRONT-WHEEL SENSORS
8	GY	Wheel sensor, RL: Reference ground	In	Rotate the wheel one turn per second	8-9	100 mV AC	REAR-WHEEL SENSORS
9	GN	Wheel sensor, RL: Signal input	In	Rotate the wheel one turn per second	9-8	100 mV AC	REAR-WHEEL SENSORS
10	Spare
11	WH/BK	Data link	In/Out	Tech 2 not connected	11-B-	0 V
				Tech 2 connected an TC/ABS selected for communication	11-B-	about 10 V
12		Spare
13		Spare
14	VT	Brake-lights switch	In	Brake pedal depressed	14-B-	B+	BRAKE-LIGHTS SWITCH
				Brake pedal released	14-B-	0 V
15	YE/RD	Current (+15 circuit)	In		5-B-	B+	POWER SUPPLY
16	BK	Pump-motor ground	In		B+-16	B+	CONTROL MODULE GROUND
17	RD	Current (+30 circuit)	In		17-B-	B+	POWER SUPPLY
18	RD	Current (+30 circuit)	In		8-B-	B+	POWER SUPPLY
19	BK	Ground	In		B+-19	B+	CONTROL MODULE GROUND
20		Spare
21		Spare
22		Spare
23		Signal from wheel sensor, rear left Used for special equipment	Out	Rotate the wheel one turn per second		100 mV AC
24		Signal from wheel sensor, rear right Used for special equipment	Out	Rotate the wheel one turn per second		100 mV AC
25		Spare
26		Spare
27		Spare
28		Spare
29		P-bus -	Bus information		Not measurable
30		P-bus +	Bus information		Not measurable
31	BK/GN	Switch, TCS ON/OFF	In	Switch not depressed	B+-31	0 V	SWITCH, TCS ON/OFF
				Switch depressed	B+-31	B+
