Connected Components: Notes

CONNECTED COMPONENTS

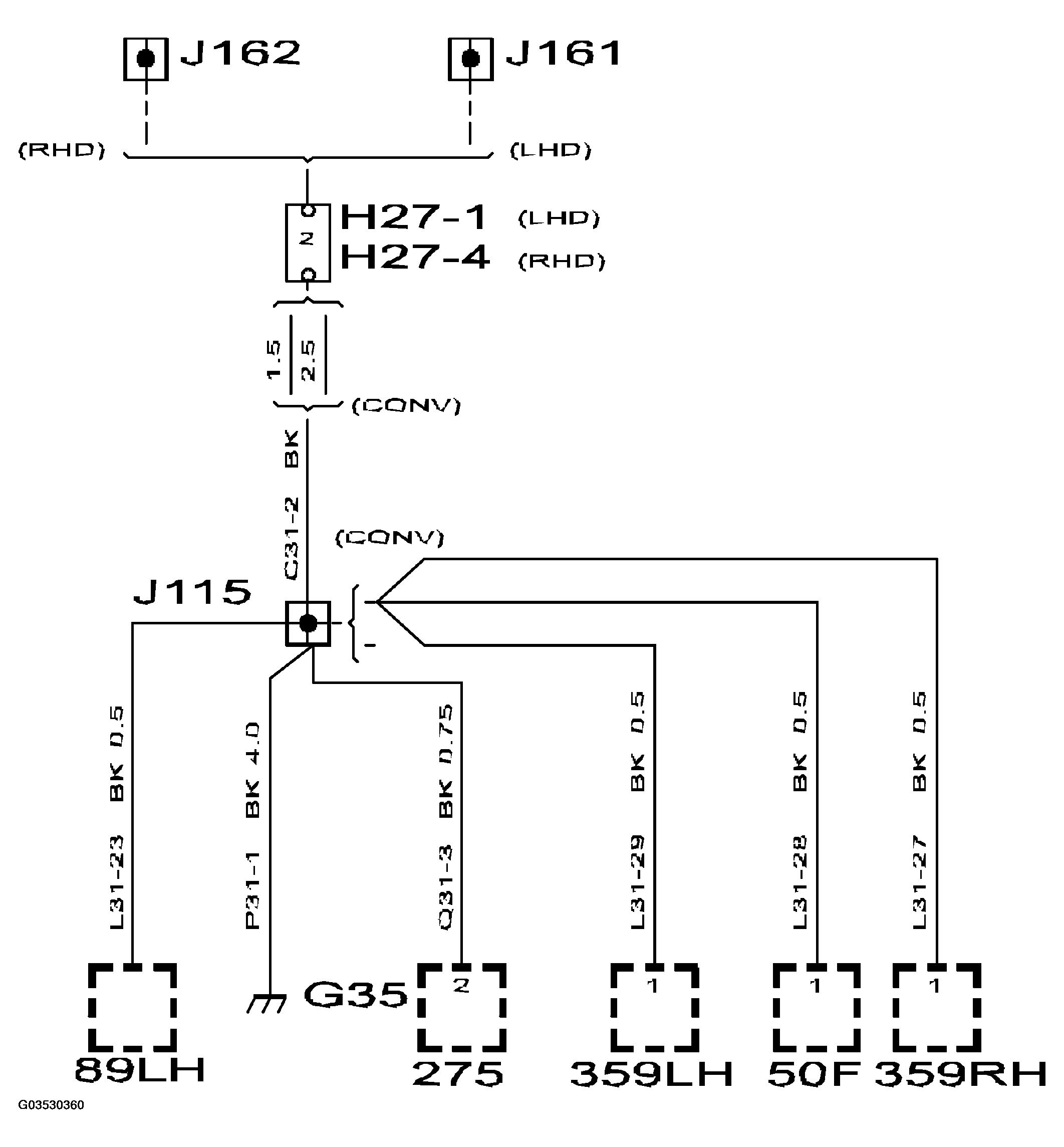

Via crimp J115  , see Figure
50F Front roof light bulb, convertible
89LH LH side direction indicator bulb
275 Siren, anti-theft alarm
