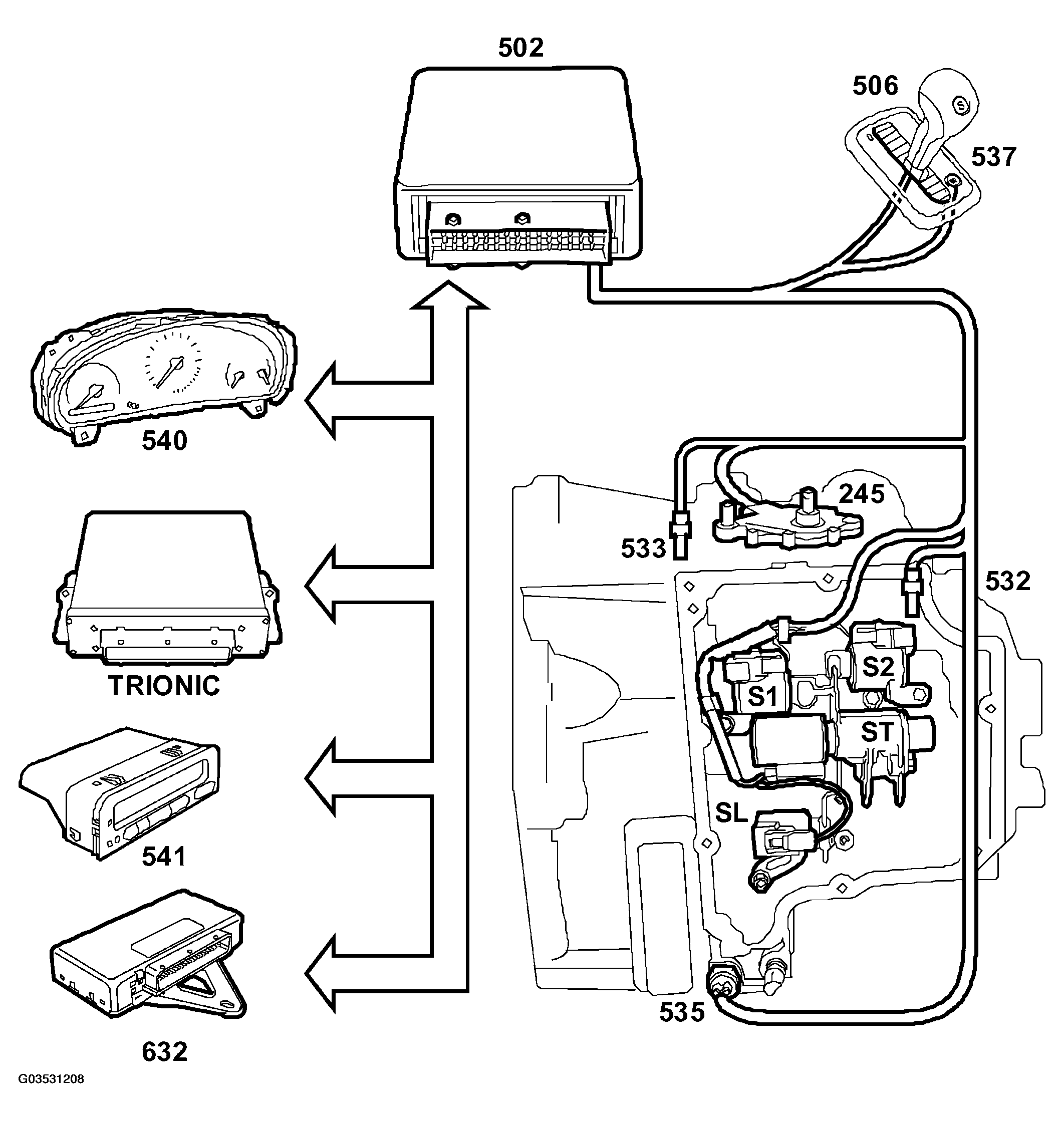

System overview, bus
- Transmission range switch (245)
- Main instrument unit (540)
- Trionic control module (430, 589)
- SID (541)
- Control module, TCM (502)
- Switch, WINTER (506)
- Switch, SPORT (537)
- TWICE control module (632)
- Output shaft speed sensor (533)
- Input shaft speed sensor (532)
- Transmission fluid temperature sensor (535)
- Lock-Up solenoid (SL)
- Shift solenoid (S1)
- Shift solenoid (S2)
- System pressure solenoid (ST)
