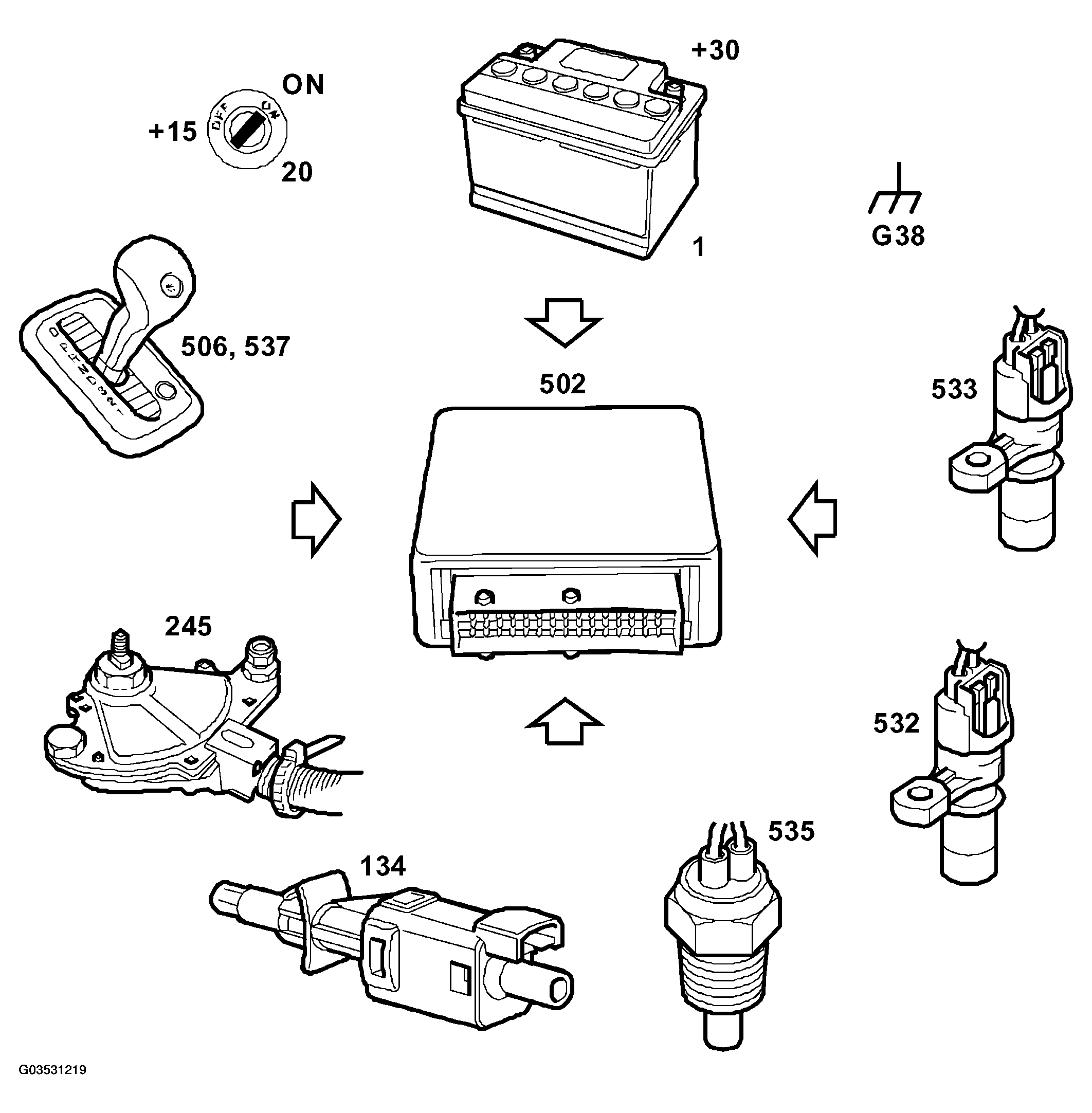

Control module inputs, bus
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Battery voltage +30 (1), see CONTROL MODULE POWER SUPPLY
- Battery voltage +15 (30), see CONTROL MODULE POWER SUPPLY
- Ground (G38), see CONTROL MODULE GROUND
- Input shaft speed sensor (532), see INPUT SHAFT SPEED SENSOR
- Output shaft speed sensor (533), see OUTPUT SHAFT SPEED SENSOR
- Engine oil temperature sensor (535), see TRANSMISSION FLUID TEMPERATURE SENSOR
- Gear selector position sensor (245), see GEAR SELECTOR POSITION SENSOR - GEAR ENGAGED
- SPORT switch (537), see SPORT SHIFTING PROGRAM
- WINTER switch (506), see SHIFTING PROGRAM, WINTER
Courtesy of SAAB-SCANIA OF AMERICA, INC.

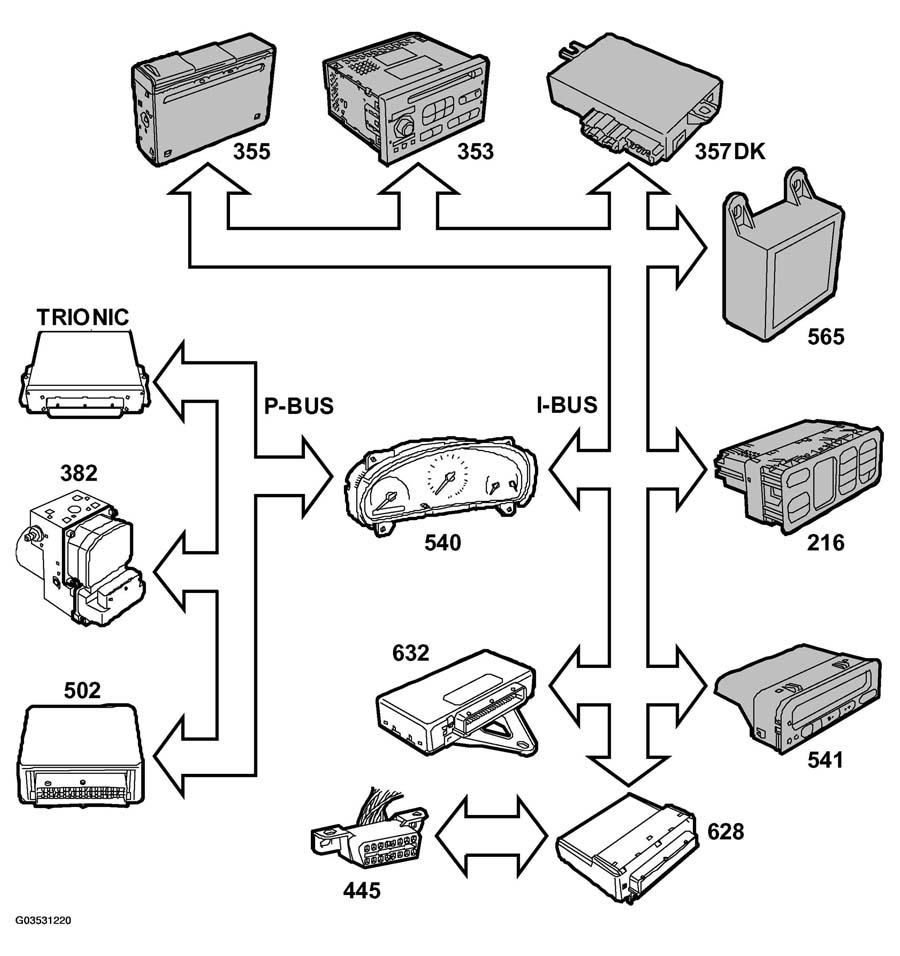

- Bus communication, see BUS COMMUNICATION
- Accelerator pedal position (Bus from Trionic) (430), see ACCELERATOR PEDAL POSITION
- Engine torque (Bus from Trionic) (430), see MAXIMUM PERMITTED TORQUE
- Kickdown (Bus from Trionic) (430), see KICKDOWN FUNCTION
- Engine speed (Bus from Trionic) (430), see ENGINE SPEED
- Brake lights (Bus from TWICE) (632), see BUS COMMUNICATION
