Transmission fluid temperature sensor

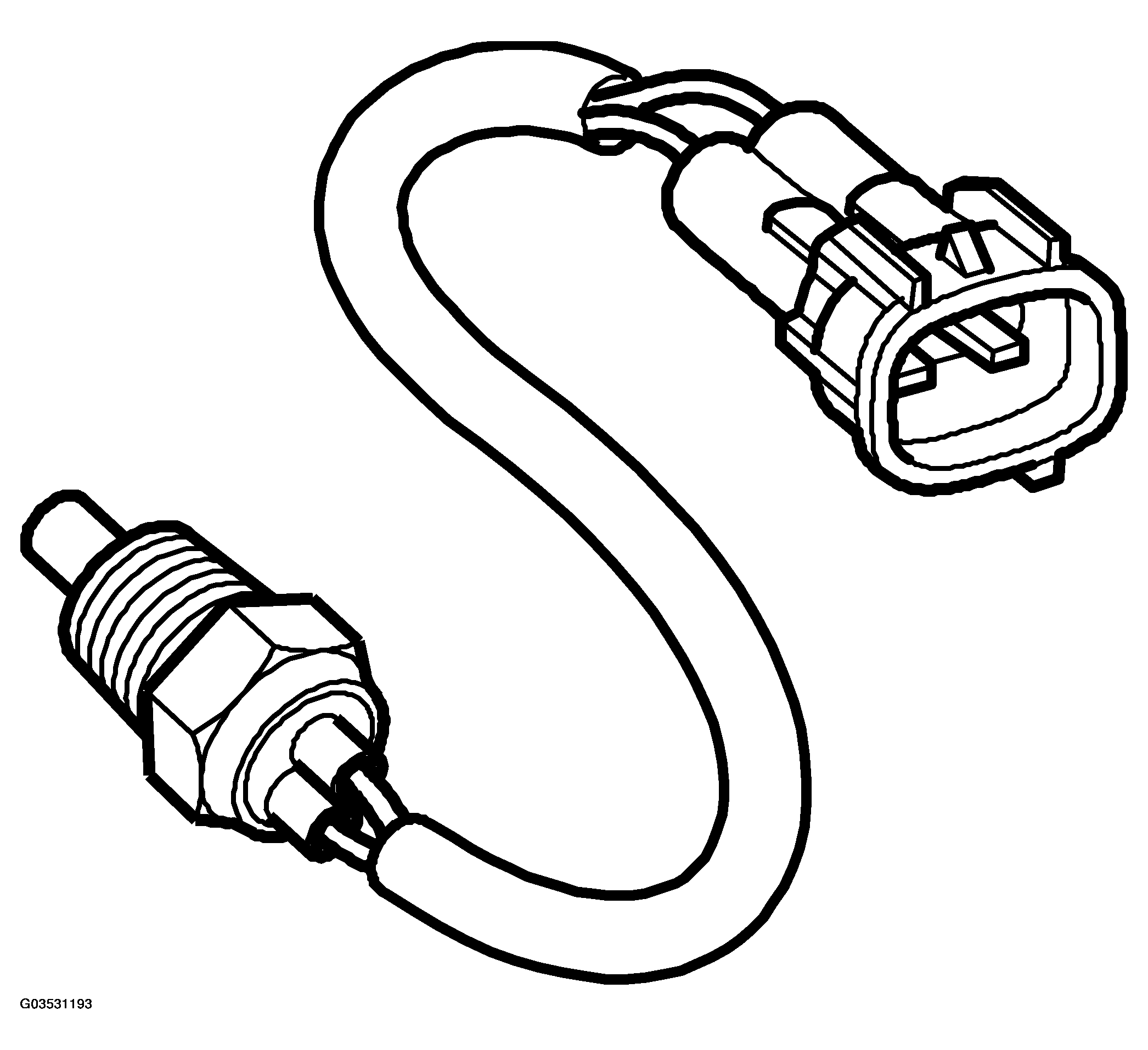

Fig 1: Identifying Transmission Fluid Temperature Sensor
G03531193Courtesy of SAAB-SCANIA OF AMERICA, INC.
TRANSMISSION FLUID TEMPERATURE SENSOR VOLTAGE SPECIFICATIONS

°C (+/-10%) Ohm (+/-10%) V
-10 5000 4.6
0 2000 4.1
+20 900 3.4
+40 400 2.4
+80 125 1.1
+100 75 0.7

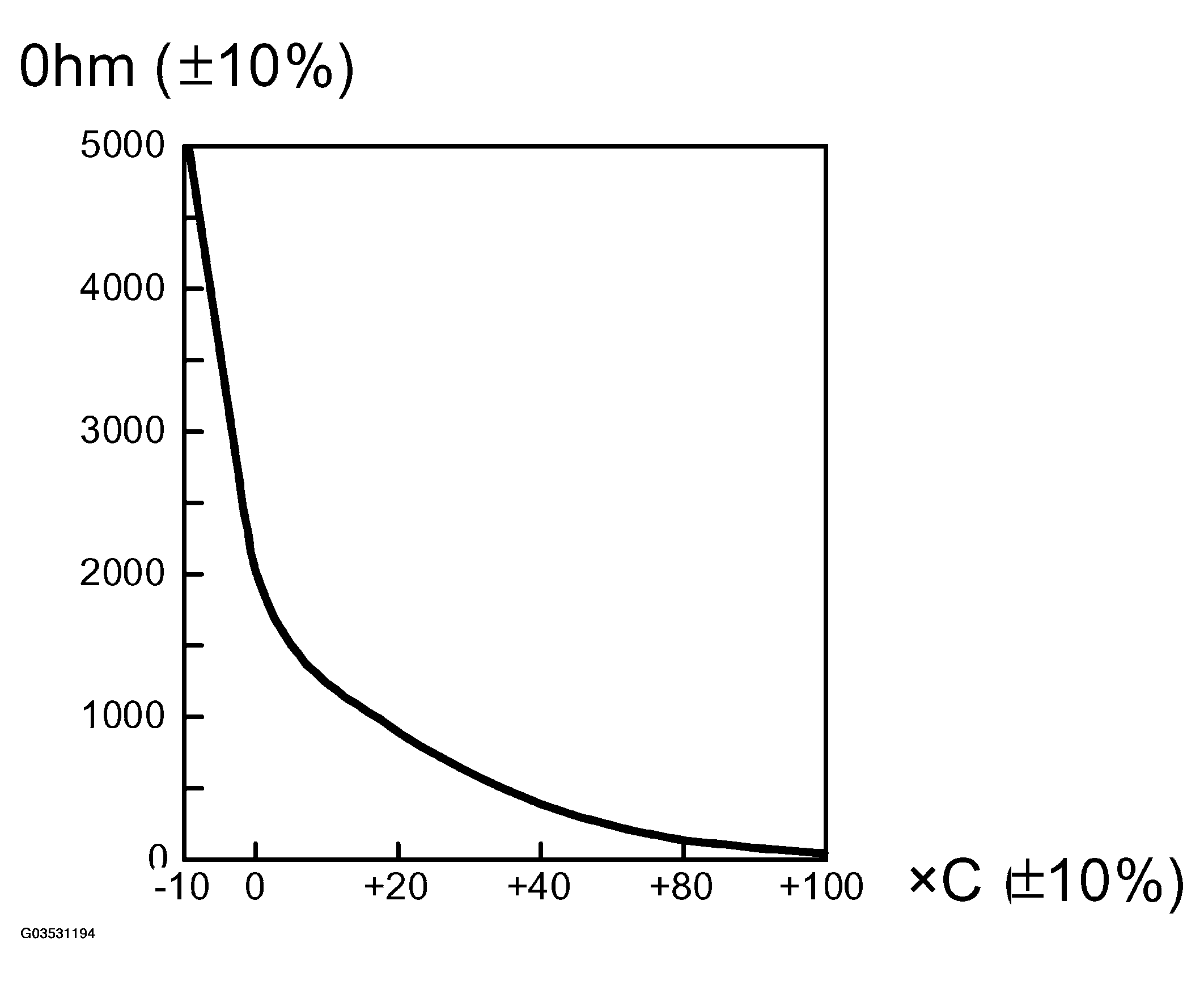

Fig 2: Transmission Fluid Sensor Temperature - Resistance Graph
G03531194Courtesy of SAAB-SCANIA OF AMERICA, INC.
