Control module, DICE (628): LHD

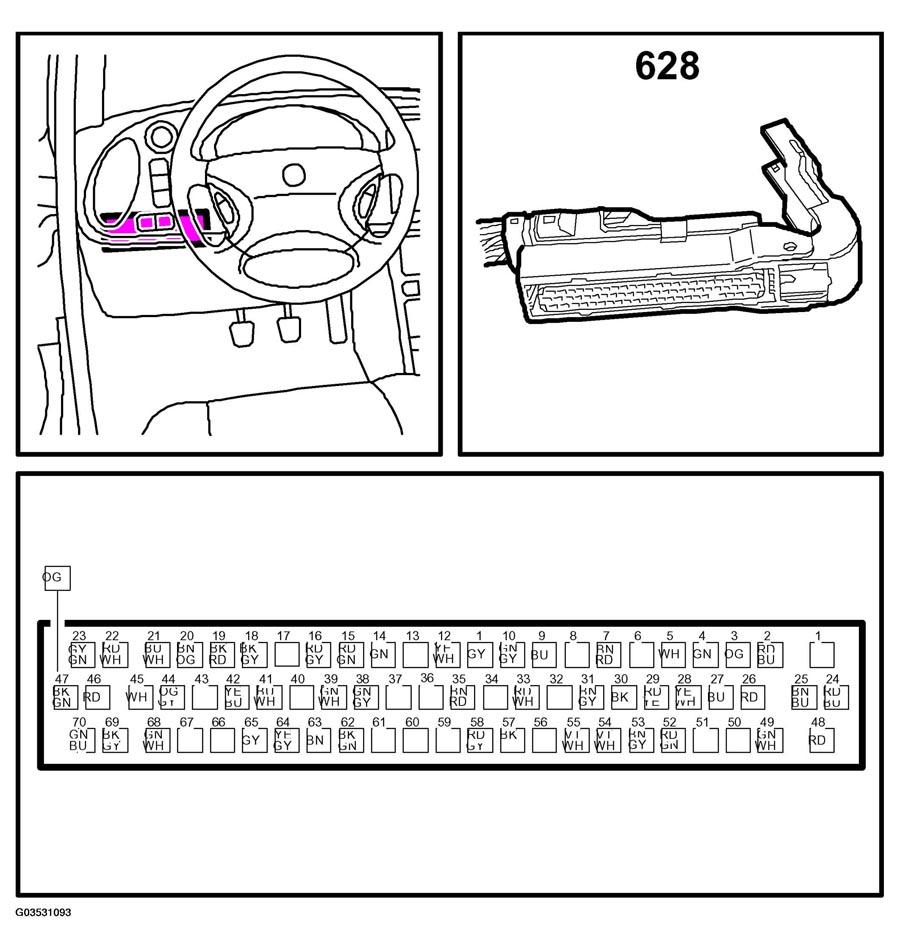

Fig 1: Identifying DICE Control Module Connector Pin-Outs (LHD)

G03531093

Courtesy of SAAB-SCANIA OF AMERICA, INC.
