Home >> Saab >> 2002 >> 9-3 SE, 2D Convertible, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Components Location >> Connector H16-3

Connector H16-3

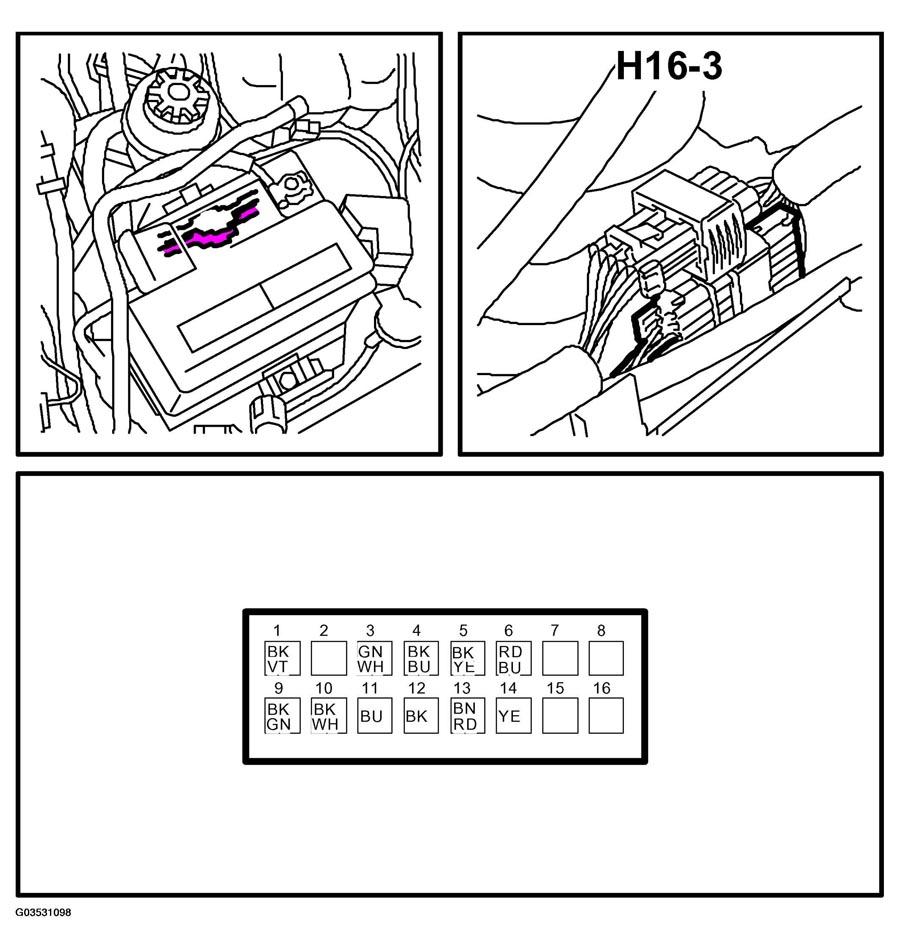

Fig 1: Identifying H16-3 Connector Pin-Outs

G03531098

Courtesy of SAAB-SCANIA OF AMERICA, INC.
