Connector H33-3

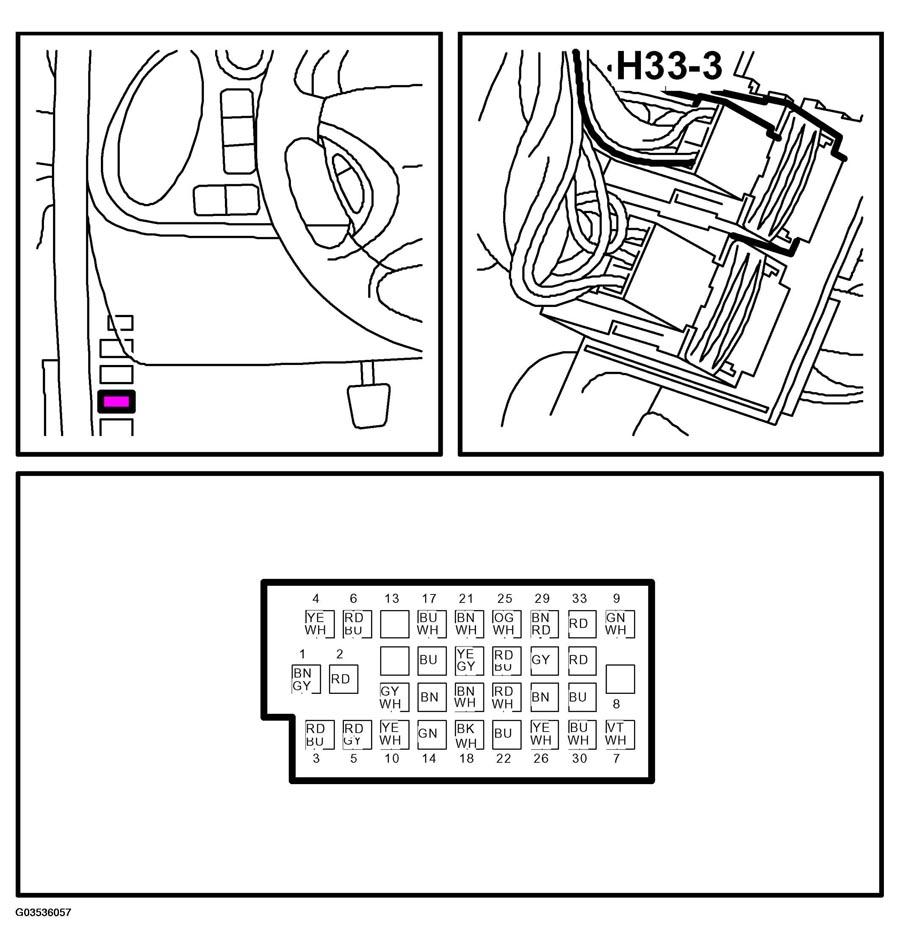

Fig 1: Identifying Connector H33-3 Pinouts And Location
G03536057Courtesy of SAAB-SCANIA OF AMERICA, INC.
