Connector H33-1

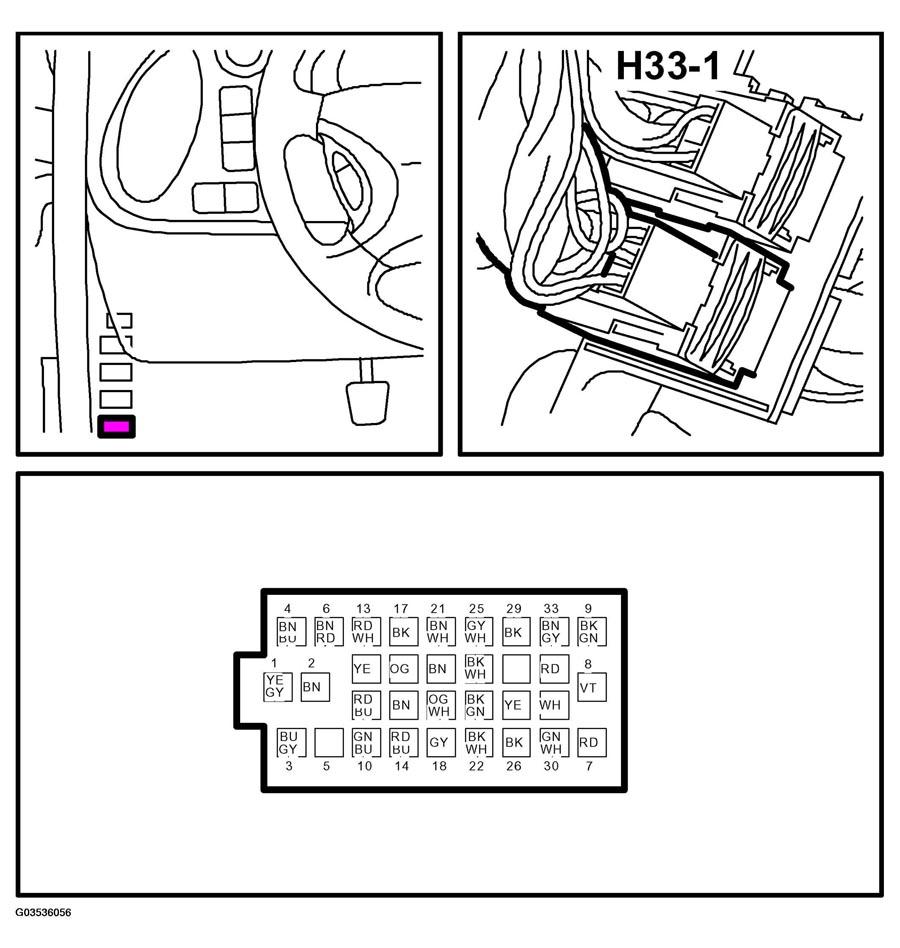

Fig 1: Identifying Connector H33-1 Pinouts And Location
G03536056Courtesy of SAAB-SCANIA OF AMERICA, INC.
