Connector H29-1

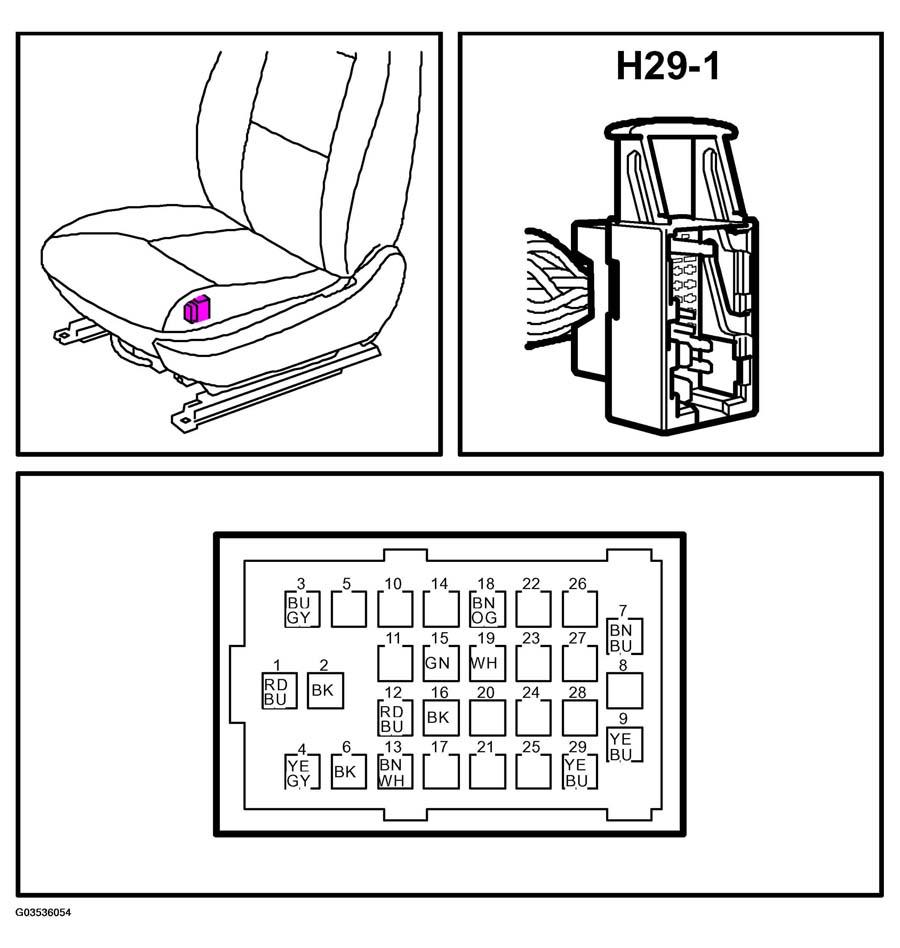

Fig 1: Identifying Connector H29-1 Pinouts And Location
G03536054Courtesy of SAAB-SCANIA OF AMERICA, INC.
