Relay, fuel pump (102)

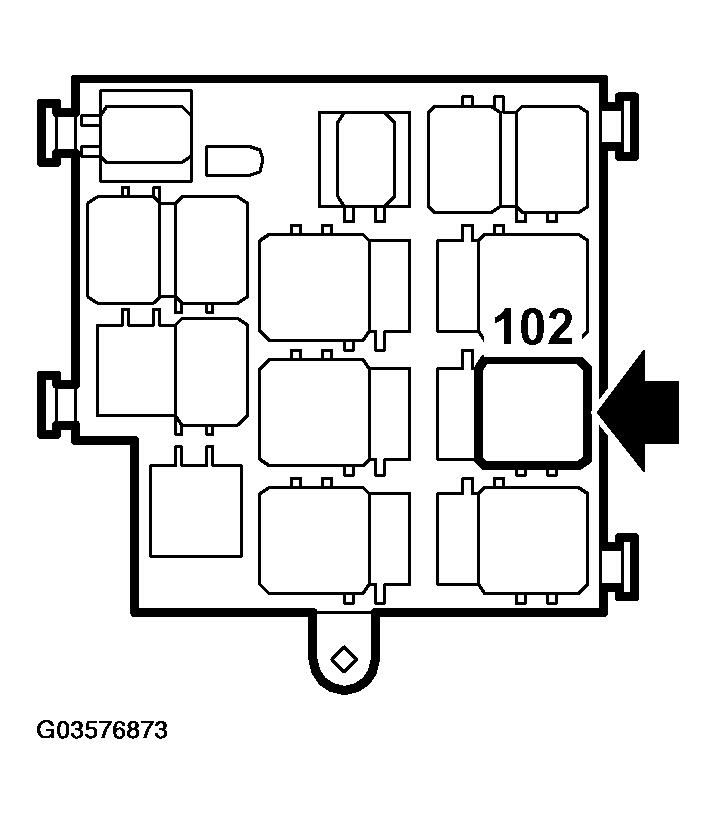

Fig 1: Identifying Fuel Pump Relay
G03576873Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - FUEL PUMP RELAY

Location   In dashboard main relay board
Resistance, winding at 20°C (68°F) Ohms 85+/-5
Nominal control voltage V 12
Rated current A 30
